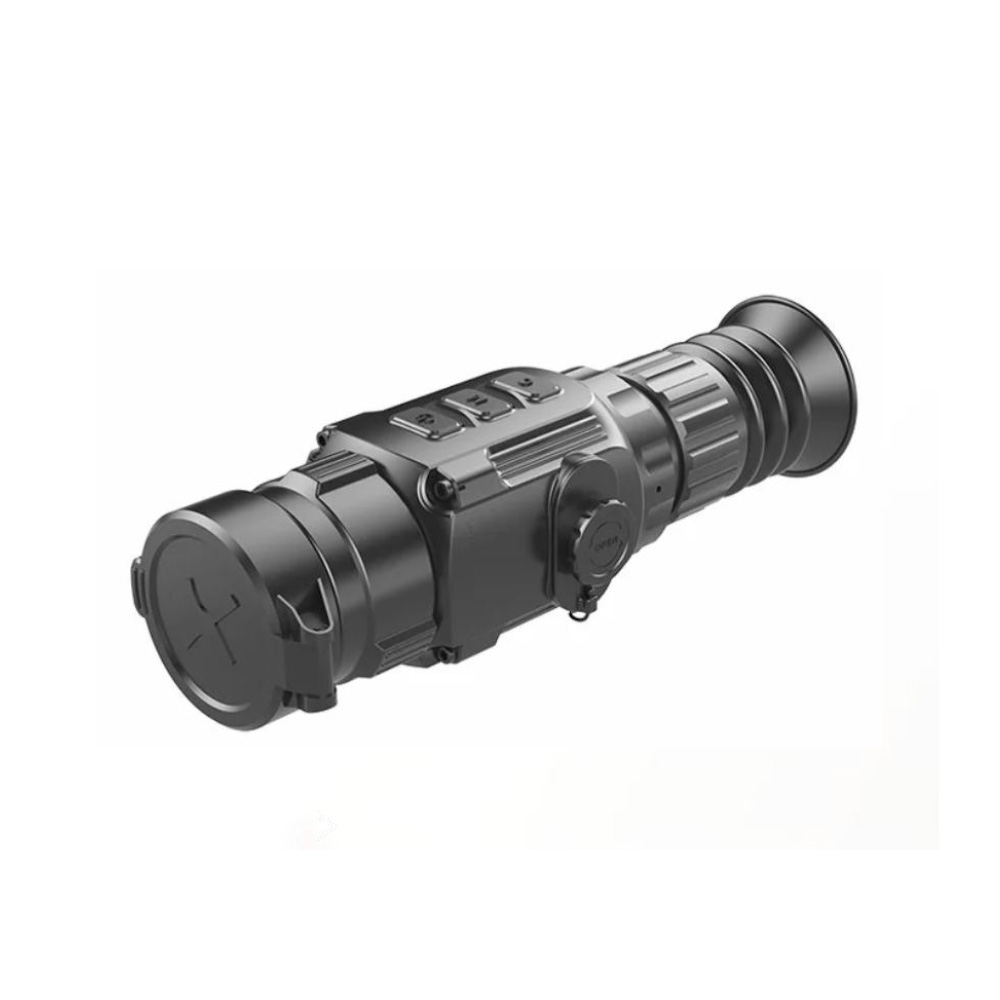

A10 Thermal Imaging Scope
A10 thermal imaging scope with 384×288 resolution, 35mm lens, and 1818m detection range for stable mid-range observation.
A10 Thermal Imaging Scope
The A10 Thermal Imaging Scope is a reliable thermal device designed for mid-range observation with stable performance and user-friendly operation. Equipped with a 384×288 thermal sensor and 12μm pixel pitch, it delivers clear thermal imaging in low-light and challenging environments.
Featuring a 35mm objective lens and 3x magnification, the A10 provides a detection range of up to 1818 meters, offering an effective balance between portability and performance. The 1024×768 OLED display ensures sharp and comfortable viewing.
Powered by CR123 batteries, the device supports up to 3.5 hours of operation. With an IP67-rated housing and compact design, the A10 is suitable for outdoor use in demanding conditions where reliability and ease of use are essential.
Technical Specifications
| Model | A10 |
| Resolution | 384 × 288 |
| Pixel Size | 12μm |
| NETD | < 40mK |
| Frame Rate | 50Hz |
| Objective Lens | 35mm |
| Magnification | 3x |
| Detection Range | 1818m |
| Display | OLED, 1024 × 768 |
| Battery | CR123 ×2 |
| Operation Time | Up to 3.5 hours |
| Protection | IP67 |
