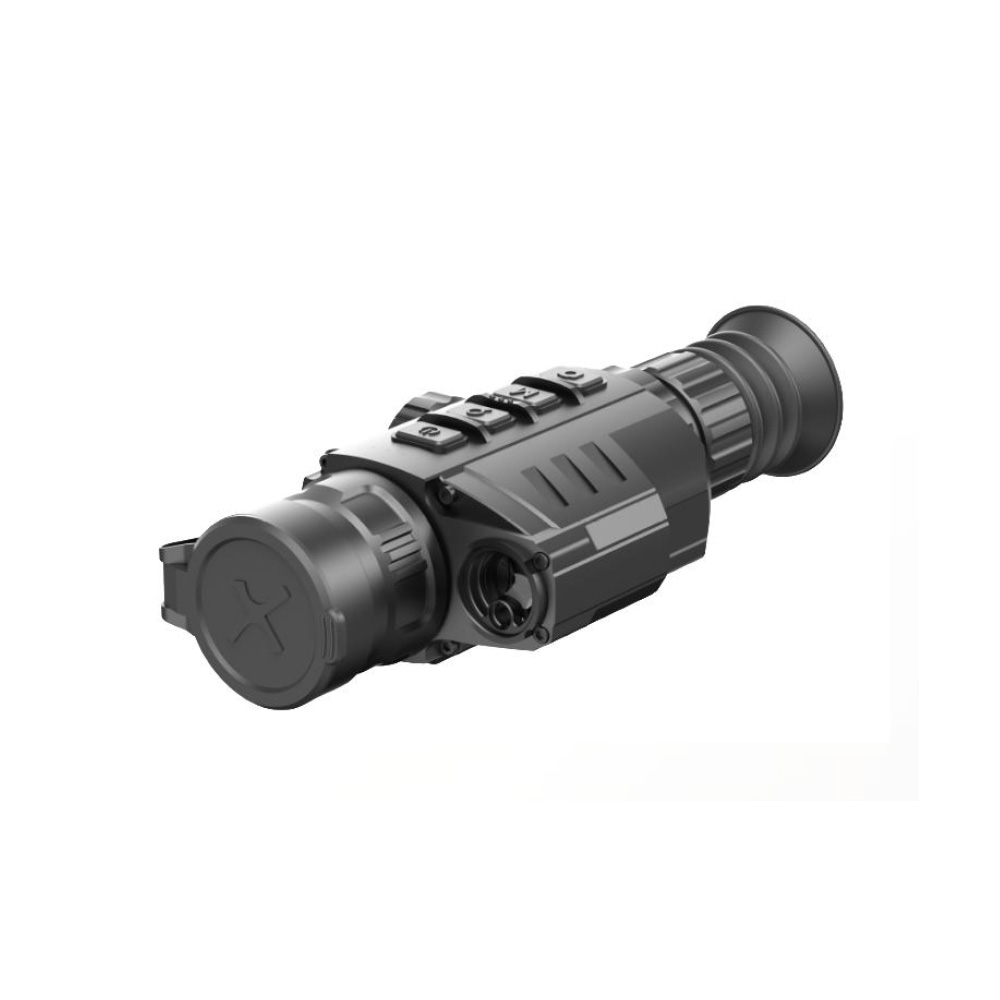

A10LRF Thermal Imaging Scope with Laser Rangefinder
A10LRF thermal imaging scope with built-in laser rangefinder, 384×288 resolution, 35mm lens, and 1818m detection range for precise observation.
A10LRF Thermal Imaging Scope with Laser Rangefinder
The A10LRF Thermal Imaging Scope combines reliable thermal imaging with an integrated laser rangefinder (LRF), providing accurate distance measurement and enhanced target awareness in the field. Featuring a 384×288 thermal sensor with 12μm pixel pitch, it delivers stable performance for observation in low-visibility environments.
Equipped with a 35mm objective lens and 3x magnification, the A10LRF offers a detection range of up to 1818 meters. The built-in laser rangefinder (up to 1000m) allows users to quickly determine target distance, improving operational efficiency and accuracy.
The device features a 1024×768 OLED display for clear viewing, along with a 26650 battery providing up to 7 hours of operation. With IP67 protection, 32GB built-in memory, and a compact, lightweight design, the A10LRF is well suited for professional outdoor applications.
Technical Specifications
| Model | A10LRF |
| Resolution | 384 × 288 |
| Pixel Size | 12μm |
| NETD | < 35mK |
| Frame Rate | 50Hz |
| Objective Lens | 35mm |
| Magnification | 3x |
| Detection Range | 1818m |
| Laser Rangefinder | 1000m ±1 |
| Display | OLED, 1024 × 768 |
| Battery | 26650 ×1 |
| Operation Time | Up to 7 hours |
| Protection | IP67 |
