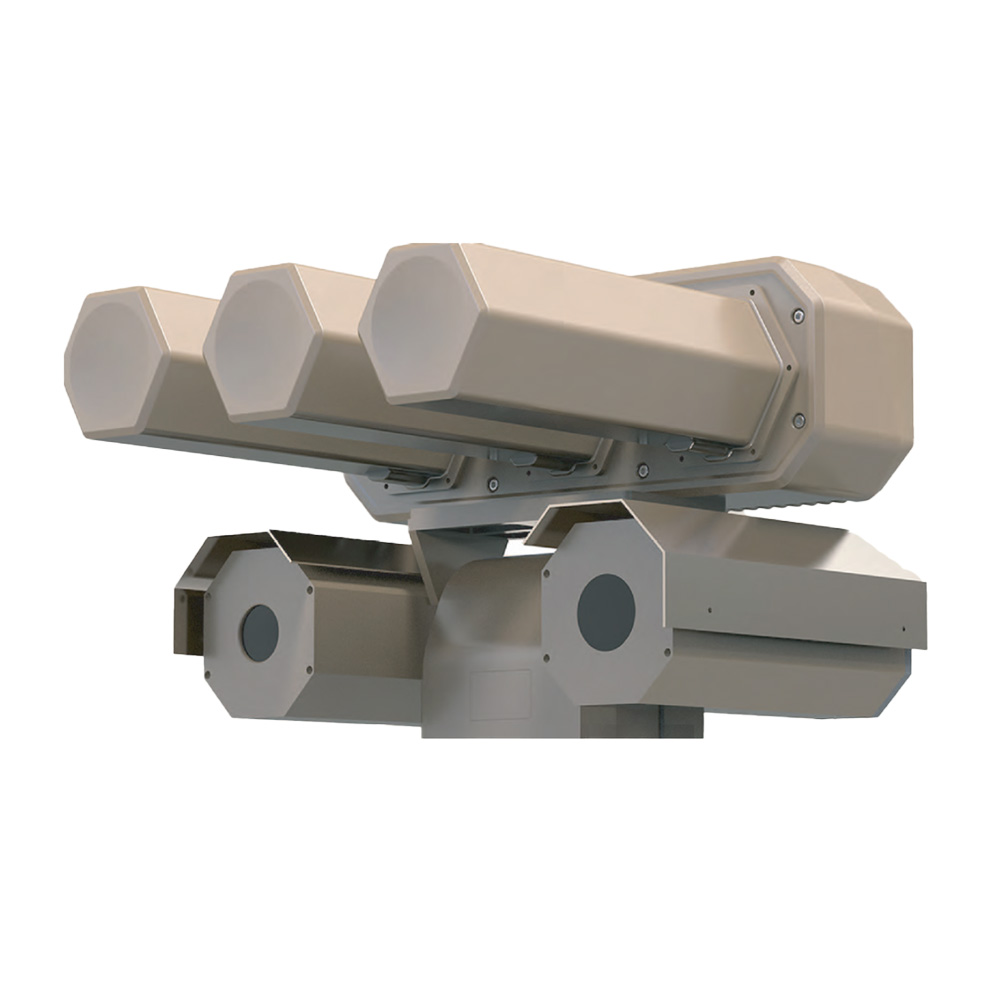

Anti-Drone Directional Jamming System – K7
Anti-Drone Directional Jamming System – K7

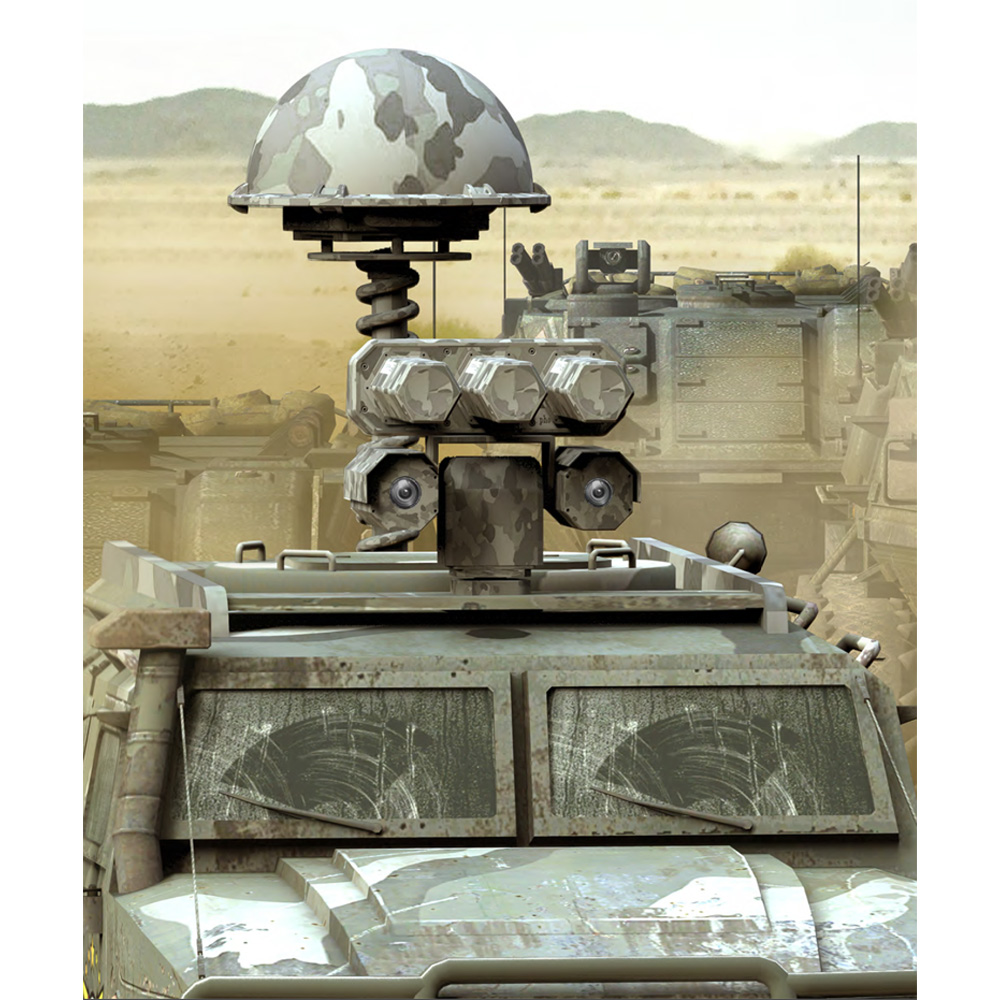

The K7 Anti-Drone Directional Jamming System is designed for rapid deployment in high-security areas such as VIP motorcades, major international event venues, military command regions, and other sensitive zones. Installed on special vehicles, the system enables operators to complete drone detection, tracking, and interception directly from inside the vehicle, gaining full airspace control without leaving the cabin.
Typically deployed on 2–3 specialized vehicles, the system provides precise interference coverage, blocking unauthorized drones outside the secured zone and ensuring a reliable protective perimeter. When hostile drone swarms approach the security area, the K7 can quickly activate high-power directional jamming to safeguard operational safety.
Technical Specifications – Model K7
| Frequency Range (MHz) | Power (W) |
|---|---|
| 900–930 MHz | 20 |
| 1574–1576 MHz (GPS L1) | 10 |
| 2400–2485 MHz | 20 |
| 5725–5850 MHz | 10 |
| 1226–1228 MHz (GPS L2) | 10 |
| 430–435 MHz | 30 |
| 840–869 MHz | 20 |
| Jamming Range | >1.5 km |
