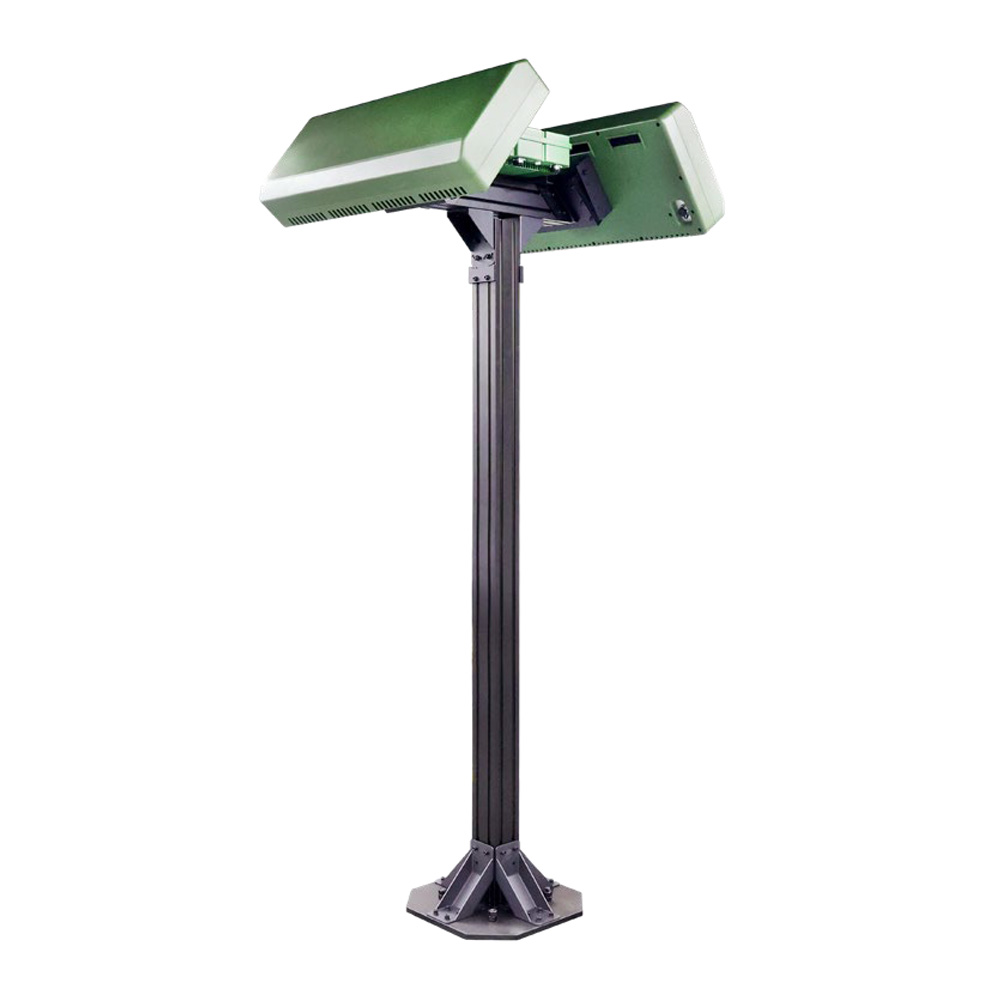

AT-610 EWALL Fixed Drone Defense Electronic Shield Wall
AT-610 EWALL Fixed Drone Defense Electronic Shield Wall
The AT-610 EWALL is an innovative fixed-position drone defense system based on SDR wireless jamming technology.
Designed to form an “electronic shielding wall,” it blocks drones from entering protected airspace by cutting off
control, video, and navigation links. The system supports large-area suppression, high-power directional jamming,
and continuous 24/7 operation for reliable low-altitude security.
Featuring 180° directional coverage (expandable to 360° via multi-unit networking), the AT-610 offers flexible
integration with perimeter security layouts, enabling precise airspace denial for military bases, border outposts,
energy facilities, airports, and other high-security sites. With IP66 protection and battlefield-grade
construction, the system supports long-term outdoor deployment across harsh environmental conditions.
Key features
- Directional jamming:
180° high-power directional interference with long-range suppression capability. - Strong countermeasure performance:
SDR-based multi-band jamming disrupts drone control, video, and navigation links for robust defense. - Flexible networking:
Supports multi-unit networking for perimeter layouts, enabling seamless 360° defense coverage. - Adaptable deployment:
Suitable for rooftops, watchtowers, checkpoints, and other fixed defense sites. - Mission-ready durability:
IP66 dustproof and waterproof rating ensures stable operation in extreme weather.
Technical specifications
| Parameter | Specification |
|---|---|
| Operating mode | Wireless electronic jamming |
| Jamming mechanism | SDR software-defined interference technology |
| Jamming frequency bands | 400 MHz / 800–900 MHz / 1.2 GHz / 1.4 GHz / 1.5 GHz / 2.4 GHz / 5.2 GHz / 5.8 GHz |
| Jamming angle | Directional jamming (fan-shaped) |
| Jamming coverage* | 600 m (width), 300 m (height), 50 m (depth) |
| Jamming response time | < 5 s |
| Launch warning | Supported |
| GPS support | Optional; supports BeiDou / GPS / GLONASS / Galileo positioning |
| Dimensions | 1084.5 × 894 × 505.7 mm (45° mount, excluding pole) |
| Weight | 55 kg (excluding pole and cables) |
| Power supply | AC 220 V external power |
| Ingress protection | IP66 |
| Operating temperature | -40 °C to +55 °C |
*Actual jamming range varies with environment, terrain, and drone signal strength.
