AT-619 Portable FPV Countermeasure Shield
Request a Quote
Contact us for pricing, availability, bulk orders and OEM/ODM requirements.

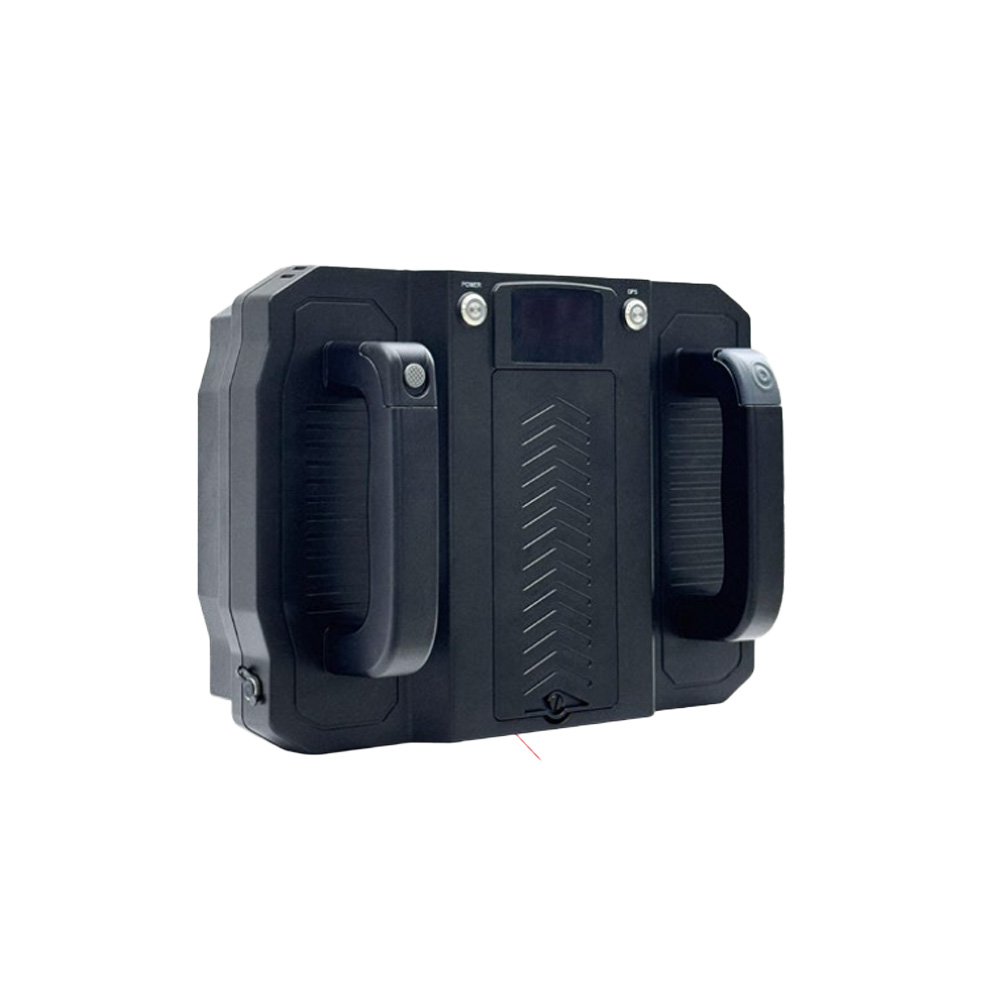

AT-619 Portable FPV Countermeasure Shield
The AT-619 portable FPV countermeasure shield is built on SDR signal interference technology and supports multiple
band configurations. It effectively jams drone data/video links, remote-control links, and navigation signals, with
especially strong performance against various DIY FPV drones.
Compact and easy to carry, the device uses a shield-style form factor for high concealment. With an IP54-rated,
highly durable housing that is heat- and corrosion-resistant, it can be rapidly deployed for squad-level defense,
counter-terrorism tasks, event security, and protection of military and police facilities, while maintaining a low
visual profile and avoiding panic.
Key features
- Portable and discreet: Compact structure with a shield-style design, easy to carry and highly
concealable, reducing the risk of causing public alarm during use. - Effective FPV countermeasures: Digital-modulation jamming source efficiently blocks FPV
remote-control signals and disrupts hostile FPV attacks. - Flexible configuration: Two band configurations available (FPV-only or FPV + conventional UAV),
allowing precise alignment with different mission profiles. - Sustained effectiveness: SDR architecture supports algorithm upgrades, ensuring long-term
effectiveness and adaptability against new drone models and protocols.
Technical specifications
| Parameter | AT-619A | AT-619B |
|---|---|---|
| Jamming mechanism | SDR software-defined radio interference technology | |
| Jamming frequency bands | 800–900 MHz / 2.4 GHz / 5.3–5.9 GHz | 800–900 MHz / 1.2 GHz / 1.4 GHz / 1.5 GHz / 2.4 GHz / 5.2 GHz / 5.8 GHz |
| Jamming angle* | Horizontal 60°, downward tilt 30° | |
| Jamming range* | ≥ 1 km (jamming-to-signal ratio 1:1), DIY FPV drones (ELRS / TBS Crossfire protocols) |
≥ 1 km (jamming-to-signal ratio 1:1), DIY FPV drones (ELRS / TBS Crossfire protocols) ≥ 1 km (jamming-to-signal ratio 1:1), DJI Mini 4 Pro, Mavic 3 series and similar UAVs |
| Total RF output power | < 90 W | < 140 W |
| Dimensions | 380 × 270 × 155 mm | |
| Weight | 4.5 kg ± 0.1 kg (main unit with battery pack) | 5.6 kg ± 0.1 kg (main unit with battery pack) |
| Power supply / charging | Powered by Li-ion battery pack; supports battery pack replacement and on-device charging | |
| Battery endurance* | ≥ 30 min (continuous full-power jamming) ≥ 3 h (standby) |
≥ 15 min (continuous full-power jamming) ≥ 3 h (standby) |
| System power consumption | < 250 W (full-power jamming) < 15 W (standby) |
< 340 W (full-power jamming) < 35 W (standby) |
| Ingress protection | IP54 | |
| Operating temperature | -30 °C to +45 °C | |
| Operating humidity | ≤ 93% RH, non-condensing | |
*Jamming distance and angle performance may vary with deployment environment, target drone type, and test conditions.
Endurance values are based on laboratory testing and may differ in actual field use.
