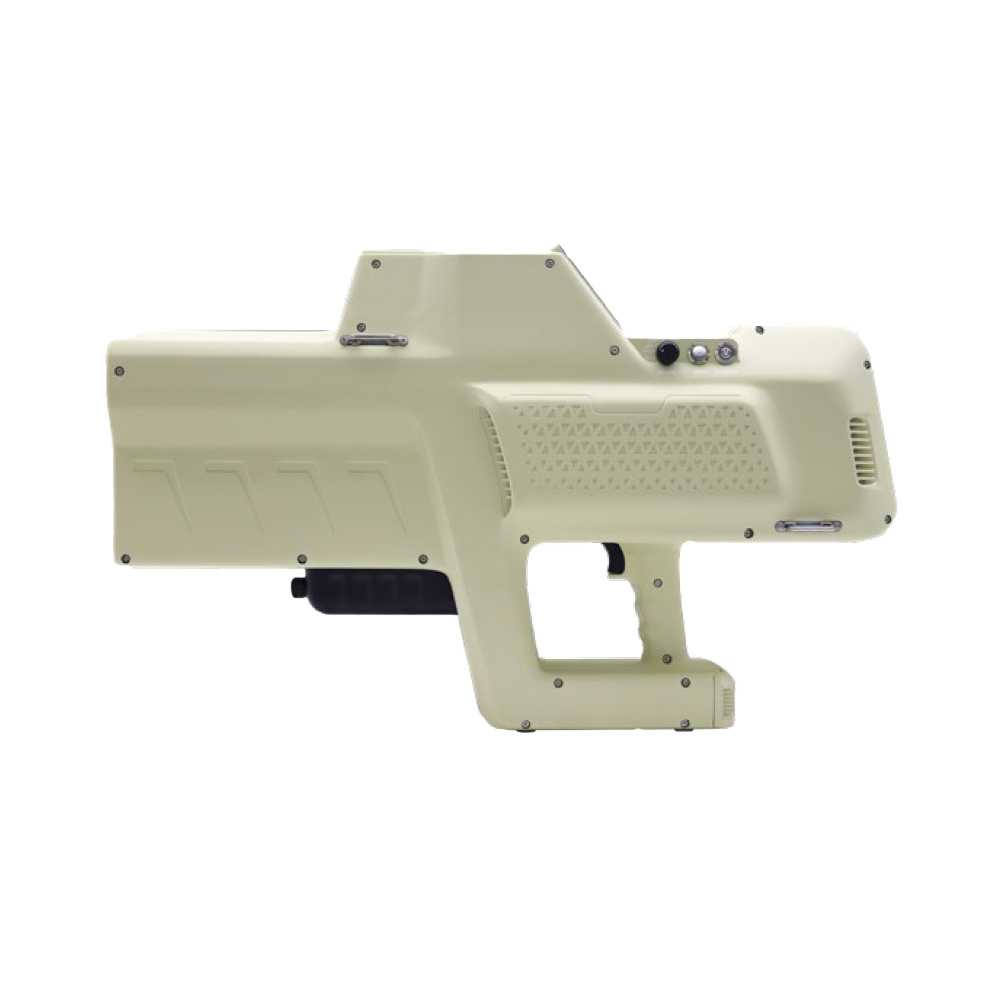

AT-620 Portable Integrated Drone Detection & Countermeasure Device
AT-620 Portable Integrated Drone Detection & Countermeasure Device
The AT-620 is a fully integrated handheld drone detection and countermeasure device designed with no external
attachments, allowing soldiers to carry and operate it with ease. It supports 3 km omnidirectional detection
and 2 km directional countermeasures against a wide range of UAV threats, including DIY FPV drones and
conventional UAV models.
Equipped with SDR-based jamming technology, the device covers multiple communication bands and provides
reliable suppression of drone control, data links, video transmission, navigation signals, and other channels.
With a built-in visual-aided targeting system, the AT-620 enables continuous 360° detection, identification,
and positioning of drones, forcing them into failsafe behaviors such as hovering, retreating, or landing.
Key features
- Integrated design: Handheld, single-piece design with no external accessories; lightweight and field-ready.
- Flexible jamming: SDR-based multi-band jamming against DIY FPV drones and common UAV communication links.
- Full-band suppression: Covers domestic and international UAV bands, providing effective disruption, return-to-home induction, and forced landing.
- Visual-aided targeting: Built-in assistance system improves aiming accuracy and enables real-time target recognition and tracking.
- Customizable jamming: Supports personalized jamming configurations and user-defined jamming modes.
- Future-proof SDR architecture: Algorithm upgrades ensure long-term effectiveness against evolving drone technologies.
Technical specifications
| Parameter | Specification |
|---|---|
| Detection frequency band | 100 MHz – 6000 MHz |
| Supported drone types | DIY FPV drones (ELRS / TBS Crossfire) Conventional UAVs (DJI, Autel, Parrot, etc.) Wi-Fi drones |
| Detection range* | ≥ 3 km (open environment) 0.5 – 1 km (urban environment) |
| Direction-finding accuracy* | 10° (open environment) |
| Jamming bands | 400 MHz / 800–900 MHz / 1.2 GHz / 1.4 GHz / 1.5 GHz / 2.4 GHz / 5.2 GHz / 5.8 GHz 700 MHz – 3 GHz software-defined jamming (optional) |
| Jamming angle* | Directional jamming, horizontal 45°, downward 30° |
| Jamming range* | ≥ 2 km (jamming-to-signal ≥ 1:1), DJI Mini4 Pro / Mavic 3 ≥ 1 km (jamming-to-signal ≥ 1:1), DIY FPV drones (ELRS / Crossfire) |
| Jamming response time | < 5 s |
| Display information | 5-inch screen: self-test, UAV model, jamming bands, date/time, battery status, jamming duration, directional prompts, etc. |
| Battery type | Replaceable Li-ion battery |
| Battery endurance* | ≥ 15 min (full-band jamming enabled) |
| Dimensions | 653 × 407 × 187 mm ±5 mm |
| Weight | < 7 kg |
| Ingress protection | IP54 |
| Operating temperature | -30 °C to +55 °C |
*Detection and jamming performance varies with terrain, environment, and drone model.
*Endurance values are based on controlled testing; real-world performance may vary.
