DTS-23T Thermal Fusion Night Vision Goggles

<div style=”max-width: 1080px; margin: 0 auto; padding: 28px; color: #111; line-height: 1.75; font-family: -apple-system,BlinkMacSystemFont,’Segoe UI’,Roboto,’Helvetica Neue’,Arial,’Noto Sans’,’PingFang SC’,’Hiragino Sans GB’,’Microsoft YaHei’,sans-serif;”>
<div>
<div style=”font-size: 14px; color: #666; margin-bottom: 14px;”>Model: DTS-23T</div>
<div style=”height: 4px; width: 56px; border-radius: 4px; background: #0a7cff; margin-bottom: 18px;”></div>

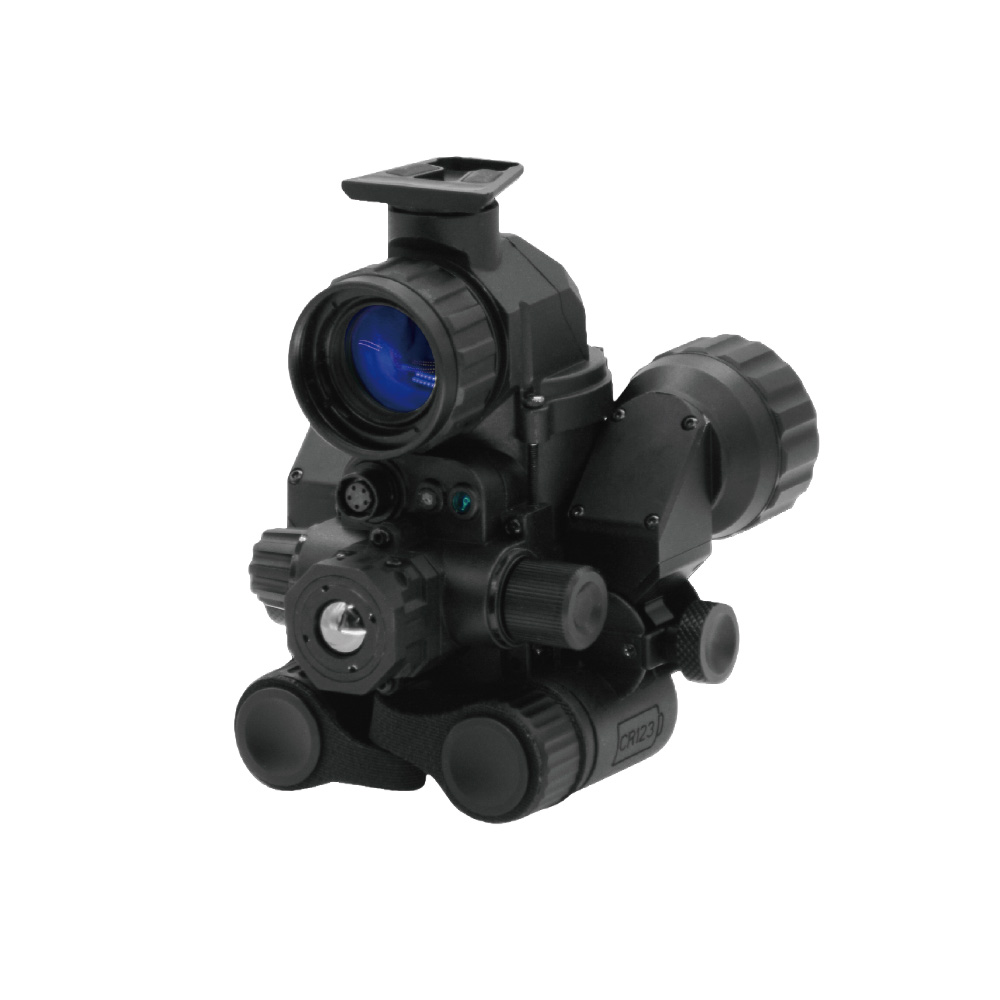

<p style=”margin: 0 0 16px;”>The <strong>DTS-23T</strong> is a folding dual-tube thermal fusion night vision device with adjustable interpupillary distance and a balanced helmet-mounted structure. It is designed to combine low-light imaging with thermal detection in a compact format that remains comfortable during extended wear.</p>
<p style=”margin: 0;”>With switchable fusion output, high-resolution display, and wide-angle observation, this model is particularly effective for target detection, patrol, and search tasks in low-visibility conditions.</p>
</div>

<section style=”margin-top: 32px;”>
<h2 style=”font-size: 22px; margin: 0 0 10px;”>Technical Specifications</h2>
<div style=”height: 3px; width: 40px; background: #0a7cff; border-radius: 3px; margin-bottom: 18px;”></div>
<div style=”overflow: hidden; border: 1px solid #e8e8e8; border-radius: 12px;”>
<table style=”width: 100%; border-collapse: separate; border-spacing: 0; font-size: 15px;”>
<tbody>
<tr>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Model</td>
<td style=”padding: 12px 14px;”>DTS-23T</td>
</tr>
<tr style=”background: #fafafa;”>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Generation</td>
<td style=”padding: 12px 14px;”>Gen 2+ / Gen 3 (optional)</td>
</tr>
<tr>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Magnification</td>
<td style=”padding: 12px 14px;”>1X</td>
</tr>
<tr style=”background: #fafafa;”>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Field of View</td>
<td style=”padding: 12px 14px;”>&gt;50&deg;</td>
</tr>
<tr>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Diopter Range</td>
<td style=”padding: 12px 14px;”>-5 to +5</td>
</tr>
<tr style=”background: #fafafa;”>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Battery Type</td>
<td style=”padding: 12px 14px;”>CR123 x2 / external battery box</td>
</tr>
<tr>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Battery Capacity</td>
<td style=”padding: 12px 14px;”>1600-2000 mAh</td>
</tr>
<tr style=”background: #fafafa;”>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Battery Life</td>
<td style=”padding: 12px 14px;”>4-80 h</td>
</tr>
<tr>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Focus Range</td>
<td style=”padding: 12px 14px;”>250 mm to infinity</td>
</tr>
<tr style=”background: #fafafa;”>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Eye Relief</td>
<td style=”padding: 12px 14px;”>25-40 mm</td>
</tr>
<tr>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Exit Pupil</td>
<td style=”padding: 12px 14px;”>9 mm</td>
</tr>
<tr style=”background: #fafafa;”>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Interpupillary Distance</td>
<td style=”padding: 12px 14px;”>60-70 mm</td>
</tr>
<tr>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Thermal Wavelength</td>
<td style=”padding: 12px 14px;”>8-14 &micro;m</td>
</tr>
<tr style=”background: #fafafa;”>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Thermal Resolution</td>
<td style=”padding: 12px 14px;”>640 x 480</td>
</tr>
<tr>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Thermal Frame Rate</td>
<td style=”padding: 12px 14px;”>50 Hz</td>
</tr>
<tr style=”background: #fafafa;”>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Thermal Focal Length</td>
<td style=”padding: 12px 14px;”>10.8 mm</td>
</tr>
<tr>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Thermal Aperture</td>
<td style=”padding: 12px 14px;”>F1.0</td>
</tr>
<tr style=”background: #fafafa;”>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Display Resolution</td>
<td style=”padding: 12px 14px;”>1920 x 1080</td>
</tr>
<tr>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Display Type</td>
<td style=”padding: 12px 14px;”>OLED</td>
</tr>
<tr style=”background: #fafafa;”>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Image Mode</td>
<td style=”padding: 12px 14px;”>Fusion (micro-light / thermal), switchable</td>
</tr>
<tr>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Video Output</td>
<td style=”padding: 12px 14px;”>USB 2.0 / USB 3.0, 1080P</td>
</tr>
<tr style=”background: #fafafa;”>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Waterproof Rating</td>
<td style=”padding: 12px 14px;”>IP65 / IP67</td>
</tr>
<tr>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Dimensions</td>
<td style=”padding: 12px 14px;”>92 x 95 x 112 mm / 92 x 105 x 112 mm</td>
</tr>
<tr style=”background: #fafafa;”>
<td style=”width: 36%; padding: 12px 14px; font-weight: 600;”>Weight</td>
<td style=”padding: 12px 14px;”>420 g (without battery / eyecup / lens cap)</td>
</tr>
</tbody>
</table>
</div>
</section>
</div>
