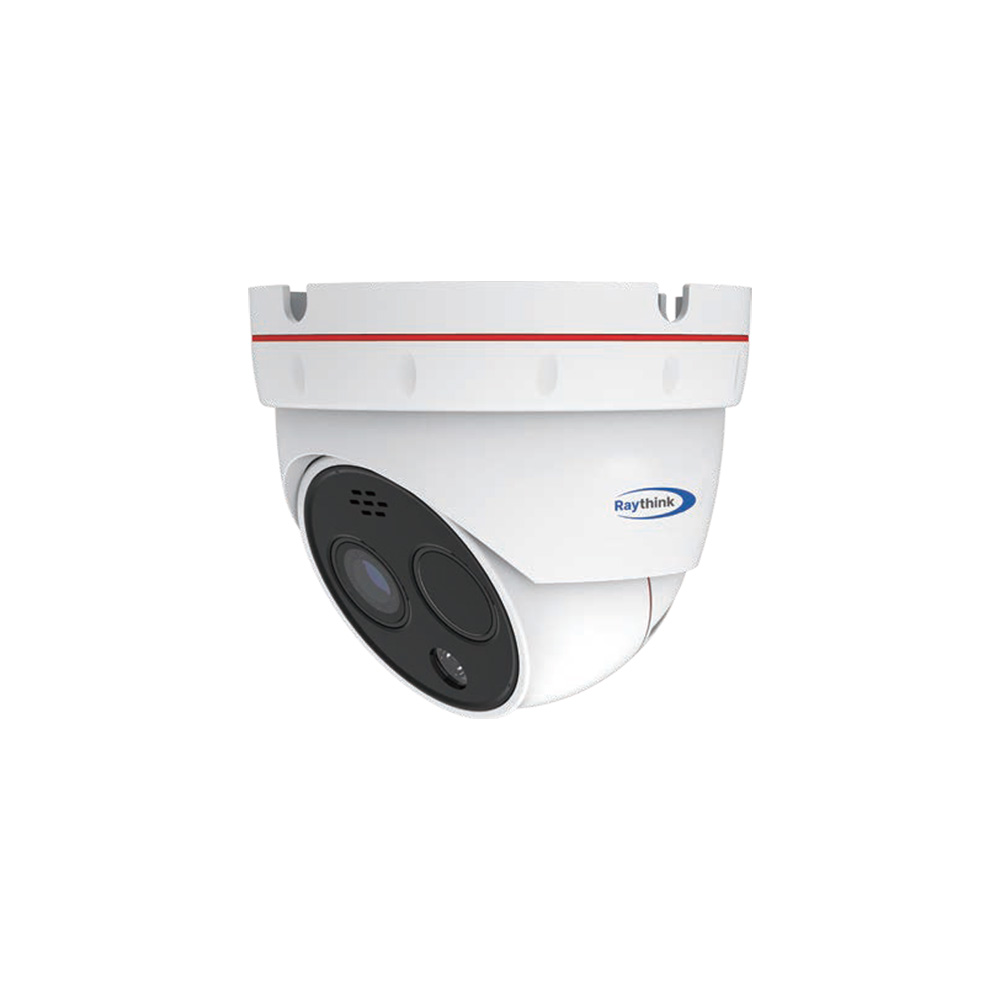

FC125T Dual-Spectrum Dome Network Camera
FC125T Dual-Spectrum Dome Network Camera
The FC125T is a new-generation dual-spectrum dome camera that integrates thermal imaging and
visible-light monitoring in a single device.
Equipped with a 12μm uncooled infrared sensor and advanced temperature detection algorithms,
it enables smoke detection, fire point analysis, and dual-spectrum fusion monitoring.
It is suitable for 24/7 security protection in applications such as gas stations, charging stations,
transformer substations, warehouses, and small/medium industrial sites.
The camera supports dual-spectrum imaging, AI video analysis, multi-rule intelligent alarms,
and precise industrial-grade temperature measurement within ±2°C.
With platform compatibility including ONVIF and GB28181 protocols, it can be seamlessly integrated
with NVR/VMS systems and supports secondary development through SDK access.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FC125T Dual-Spectrum Dome Camera |
| Thermal Sensor | 12μm uncooled infrared detector |
| Thermal Imaging Features | Supports thermal imaging, dual-spectrum fusion, and temperature detection |
| Temperature Measurement Accuracy | ±2°C (industrial-grade) |
| Visible-Light Imaging | Day/night visible-light imaging for 24/7 monitoring |
| AI Video Analysis | Supports fire detection, intrusion detection, target classification, personnel analysis |
| Intelligent Alarm | Supports multi-rule intelligent alarms, optical + thermal linkage |
| Composite Monitoring | Smoke detection, fire point monitoring, temperature abnormality detection |
| Platform Compatibility | NVR/VMS software, ONVIF, GB28181 protocols; SDK supported |
| Application Scenarios | Gas stations, charging stations, substations, warehouses, industrial facilities |
| Parameter | Value |
|---|---|
| Thermal Imaging Parameters | |
| Detector Type | VOx uncooled focal plane detector |
| Spectral Range | 8–14 μm |
| NETD | ≤ 40 mK (@25 °C, F#1.0, 25 Hz) |
| Thermal Sensor Resolution | 256 × 192 |
| Pixel Pitch | 12 μm |
| Thermal Lens Focal Length | 3.2 mm |
| Visible Light Parameters | |
| Image Sensor | 5 MP 1/2.7″ CMOS |
| Visible Resolution | 2560 × 1920 |
| Lens Focal Length | 4 mm / 8 mm |
| Illumination | IR supplement, max illumination distance 30 m |
| Temperature Measurement | |
| Temperature Range | -20 °C ~ +550 °C |
| Temperature Accuracy | ±2 °C or ±2% (whichever is greater) |
| Temperature Analysis | Supports global spots, lines, and area temperature rules with linkage alarms |
| Intelligent Functions | |
| Fire Warning | Supports fire spot detection |
| Smart Detection | Supports region intrusion, line crossing, human recognition and other intelligent event analysis |
| Alarm Linkage | Recording / snapshot / email / alarm output / audio-visual alarm |
| System Interfaces | |
| Power Input | DC 12V ±25% / PoE (802.3af) |
| Network Interface | 1 × RJ45 10M / 100M adaptive Ethernet port |
| Audio Input | 1 channel audio input |
| Audio Output | 1 channel audio output |
| Alarm Input | 2 channel alarm input |
| Alarm Output | 1 channel alarm output |
| Storage | Supports Micro SD card (up to 256 GB) |
| Reset Button | Supported |
| RS485 Interface | 1 × RS485 port |
| General Specifications | |
| Operating Temperature & Humidity | -40 °C ~ +70 °C; <95% RH |
| Ingress Protection | IP66 |
| Power Consumption | ≤ 5 W |
| Dimensions | Φ129 × 96 mm |
| Weight | ≤ 0.8 kg |
