High-Power Outdoor Fixed Drone Signal Jamming System – WK-101M.Net
High-Power Outdoor Fixed Drone Signal Jamming System – WK-101M.Net

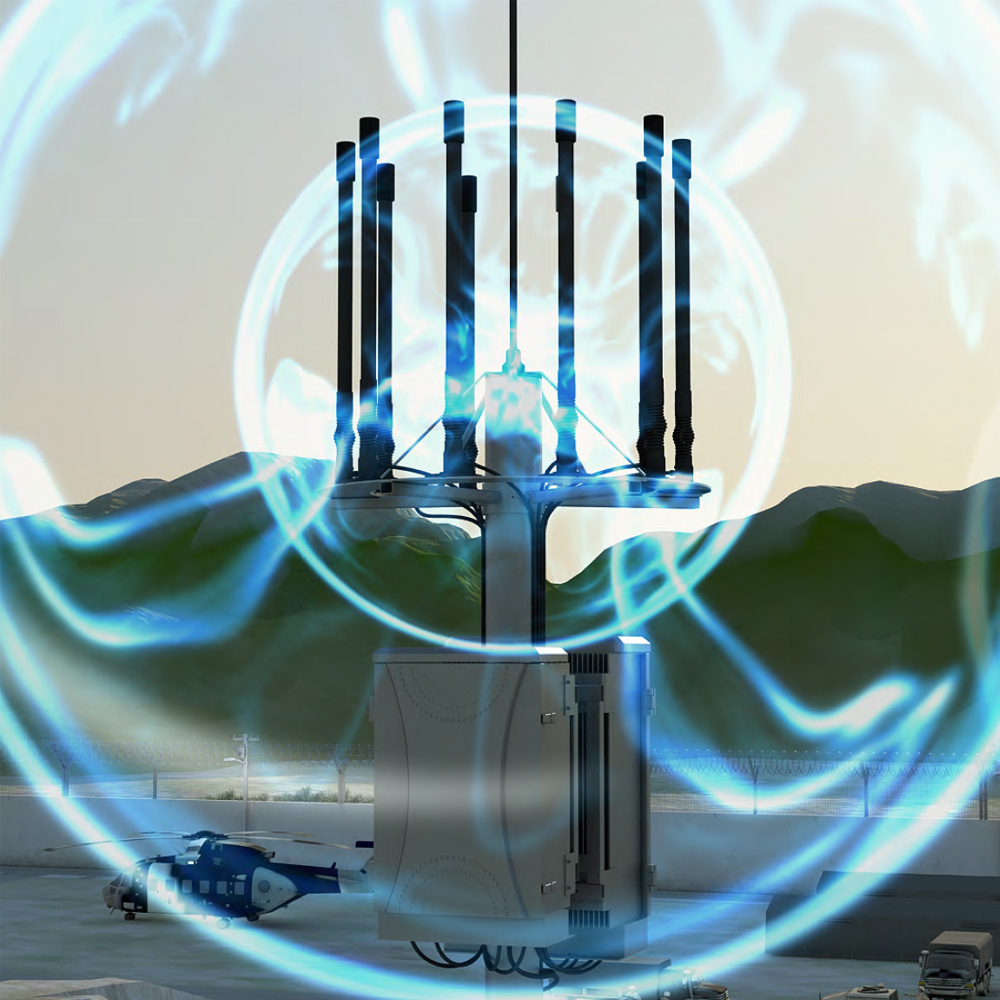

The WK-101M.Net is a high-power outdoor fixed drone signal jamming system designed for multi-band interference applications. Built with a durable aluminum alloy enclosure, the system achieves strong weather resistance for long-term outdoor deployment. By connecting omnidirectional or high-gain directional antennas, the system forms an expanded jamming coverage suitable for facilities requiring continuous perimeter protection.

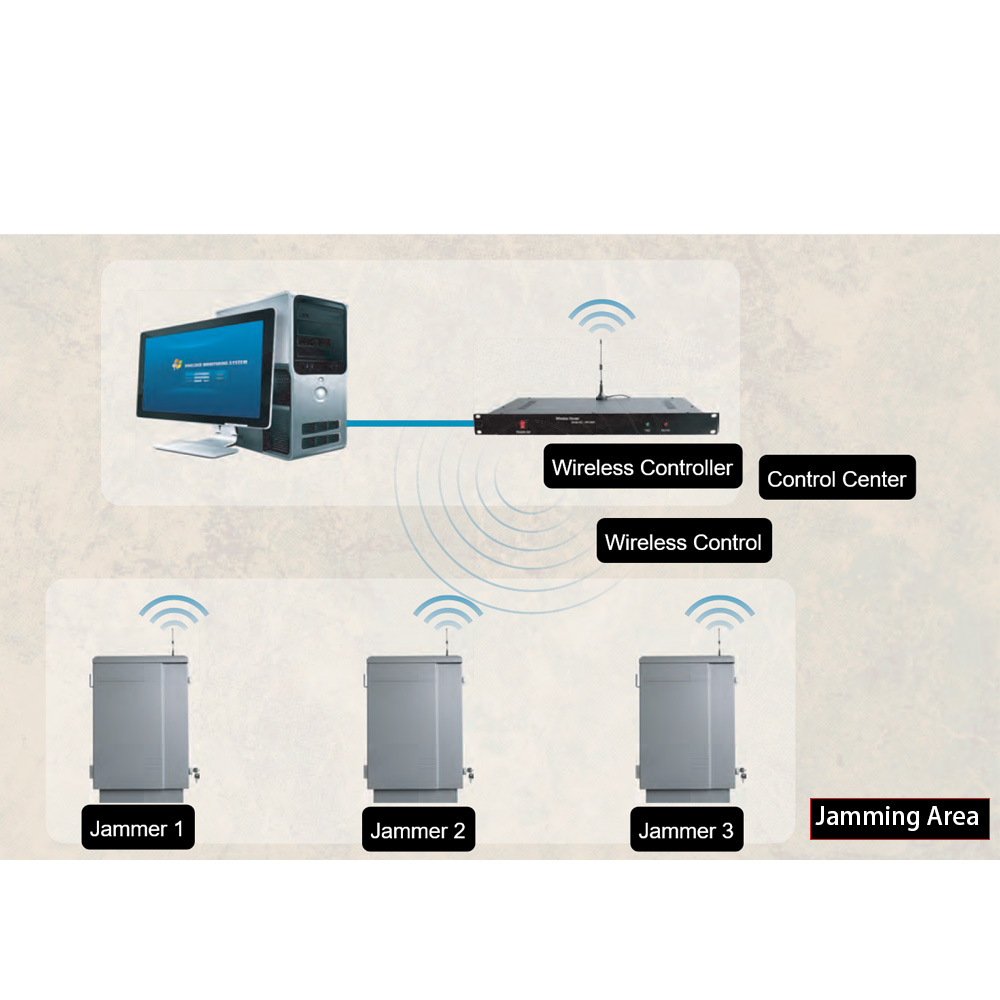

The system supports both local and remote monitoring and control through wired RS485 or TCP/IP networks. DDS digital signal synthesis technology ensures efficient jamming performance, while its adjustable output frequency bands and power levels allow flexible configuration. With an intelligent cooling mechanism, the WK-101M.Net maintains stable operation even under high-temperature outdoor conditions.
User access control, log reporting, storage management, and map configuration functions are included to support secure and scalable system deployment.
Technical Specifications – WK-101M.Net
| Model | TG-101M.Net 5 | TG-101M.Net 6 |
|---|---|---|
| Total Power | Up to 400 W | Up to 400 W |
| Power Supply | 230 VAC / 110 VAC | 24–27 VDC |
| Antenna | Omnidirectional or 12–15 dBi directional antenna | Omnidirectional or 12–15 dBi directional antenna |
| Control Interface | RS485 / TCP/IP / Satellite network / Wireless control | RS485 / TCP/IP / Satellite network / Wireless control |
| Protection Level | IP65 | IP65 |
| Output Power | 50–100 W per band | 50–100 W per band |
| Dimensions | 780 × 450 × 320 mm | 780 × 530 × 330 mm |
| Weight | Approx. 48 kg | Approx. 64 kg |
