IVS4G-Q Mini Intelligent Vehicle-Mounted Thermal AI System
IVS4G-Q Mini Intelligent Vehicle-Mounted Thermal AI System
The IVS4G-Q is a compact AI-enhanced thermal imaging system designed for vehicle-mounted
situational awareness and all-day, all-weather monitoring. Equipped with an uncooled infrared
sensor and intelligent recognition algorithms, the device provides clear thermal imaging,
target detection, and distance-based identification for both drivers and security operators.
With a lightweight body, IP67 protection, Wi-Fi transmission, and support for vehicle roof or
windshield installation, the IVS4G-Q offers flexible deployment for cars, patrol vehicles, and
security teams. Its integrated AI engine supports pedestrian and vehicle detection, enabling
safer driving and enhanced surveillance capabilities across complex environments.
Key features
- High-clarity thermal imaging — 640×512 resolution, 12μm detector, 25Hz
frame rate for smooth visual output. - Integrated AI recognition — Supports smart detection of pedestrians and

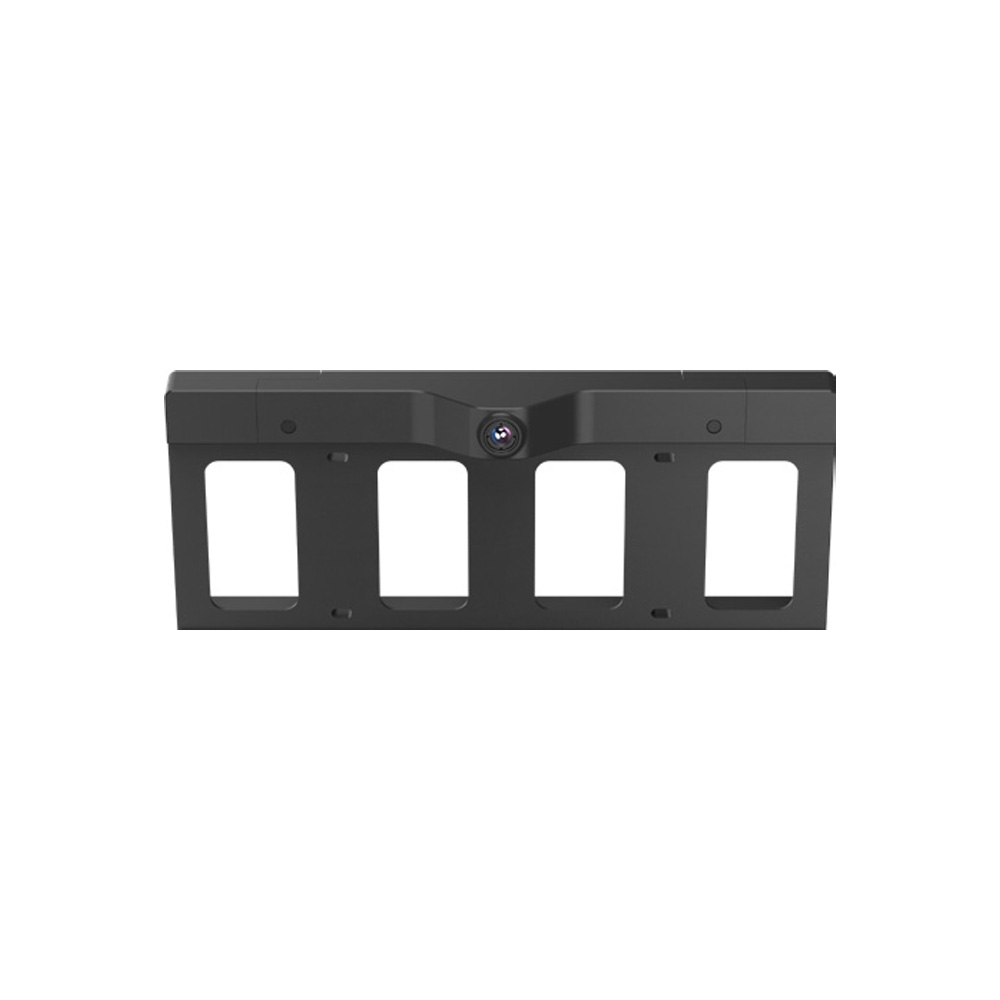

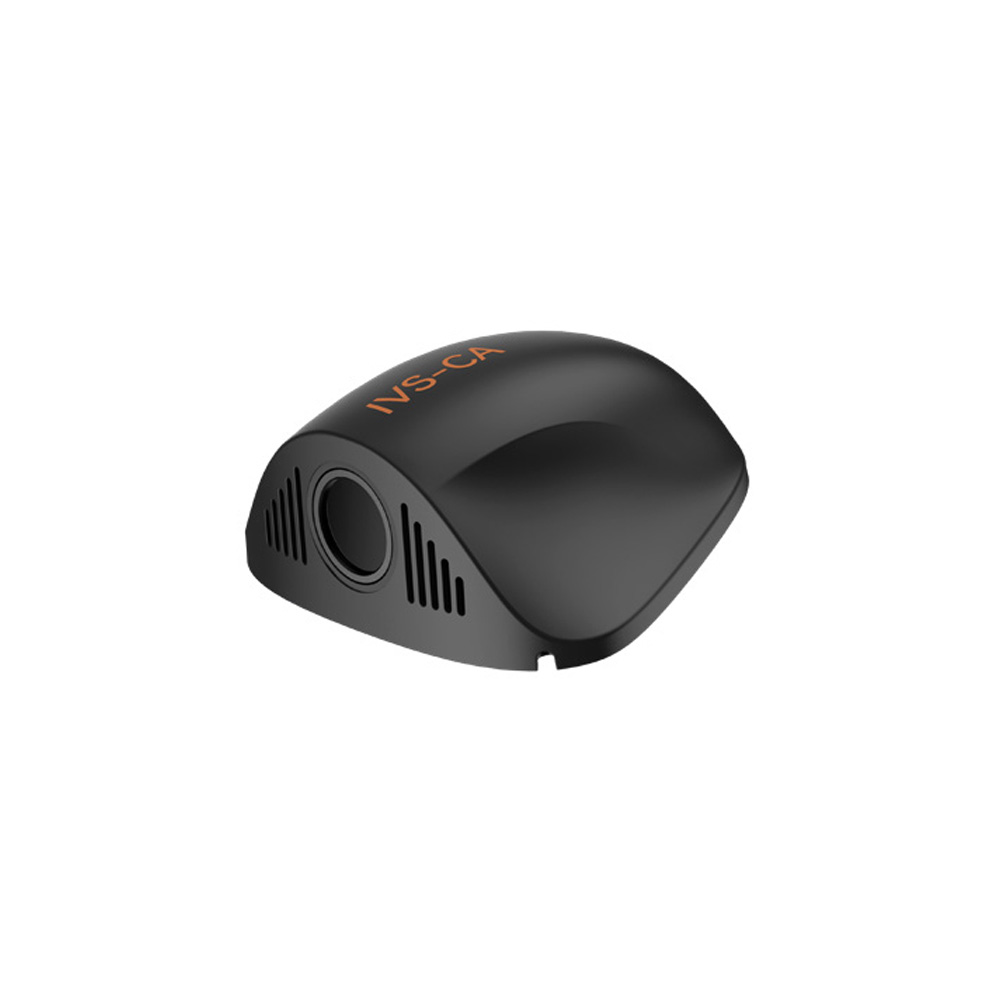

vehicles for enhanced safety and decision support. - Flexible installation — Vehicle roof (6mm lens) or windshield mounting

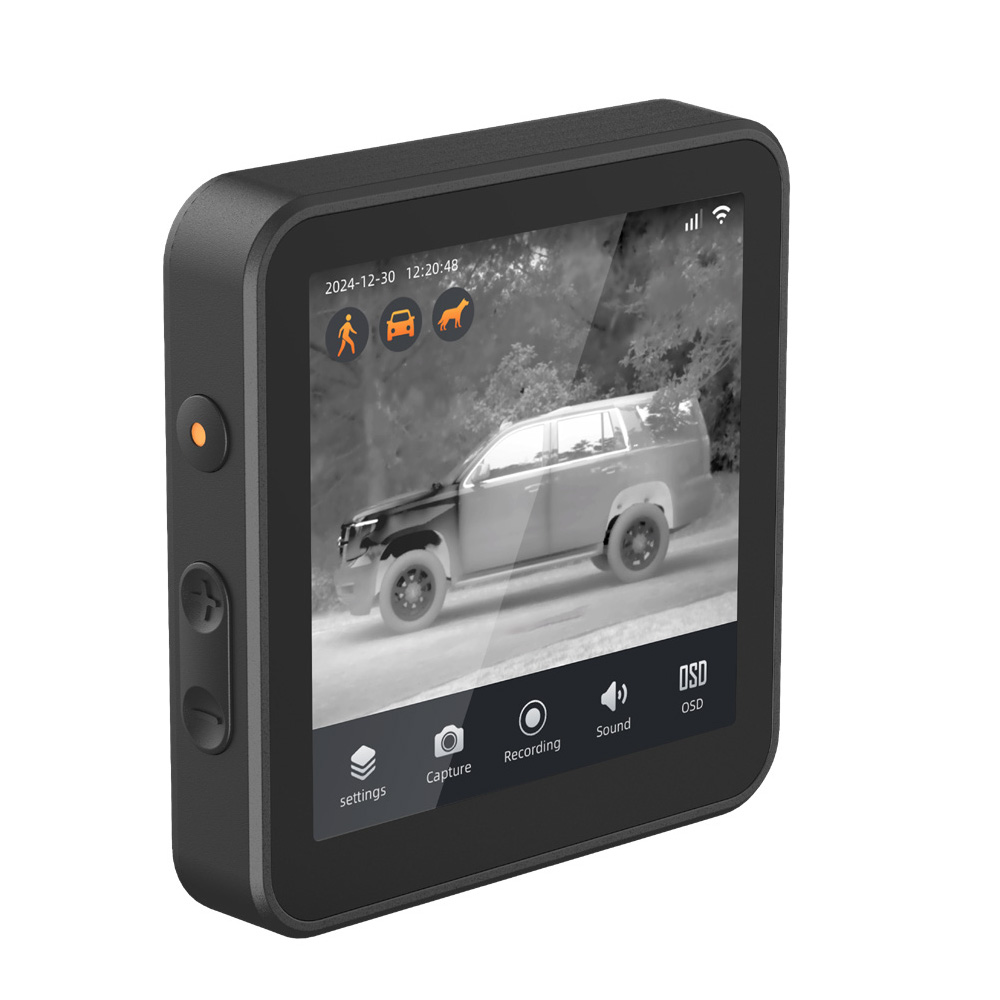

(9mm lens) options. - Dual display support — 4-inch 720×720 LCD screen with real-time image view.
- Reliable wireless transmission — Built-in Wi-Fi for stable device-to-display
connectivity. - Rugged outdoor performance — IP67 protection, −20°C to +60°C operating
temperature, suitable for harsh conditions. - Lightweight design — Less than 400g for easy vehicle integration.
Technical specifications
| Parameter | Specification |
|---|---|
| Product name | Mini Intelligent Vehicle-Mounted AI System |
| Model | IVS4G-Q09(Q06) |
| Detector type | Uncooled infrared focal plane array |
| Resolution | 640 × 512 / 12μm |
| Spectral range | 8–14μm |
| Frame rate | 25Hz |
| Lens options | 9mm (standard) / 6.6mm |
| Field of view | H40° (39°) |
| Recognition distance (1.7m person) | 200m (150m) |
| Identification distance (2m vehicle) | 250m (200m) |
| Display | 4″ LCD 720×720 |

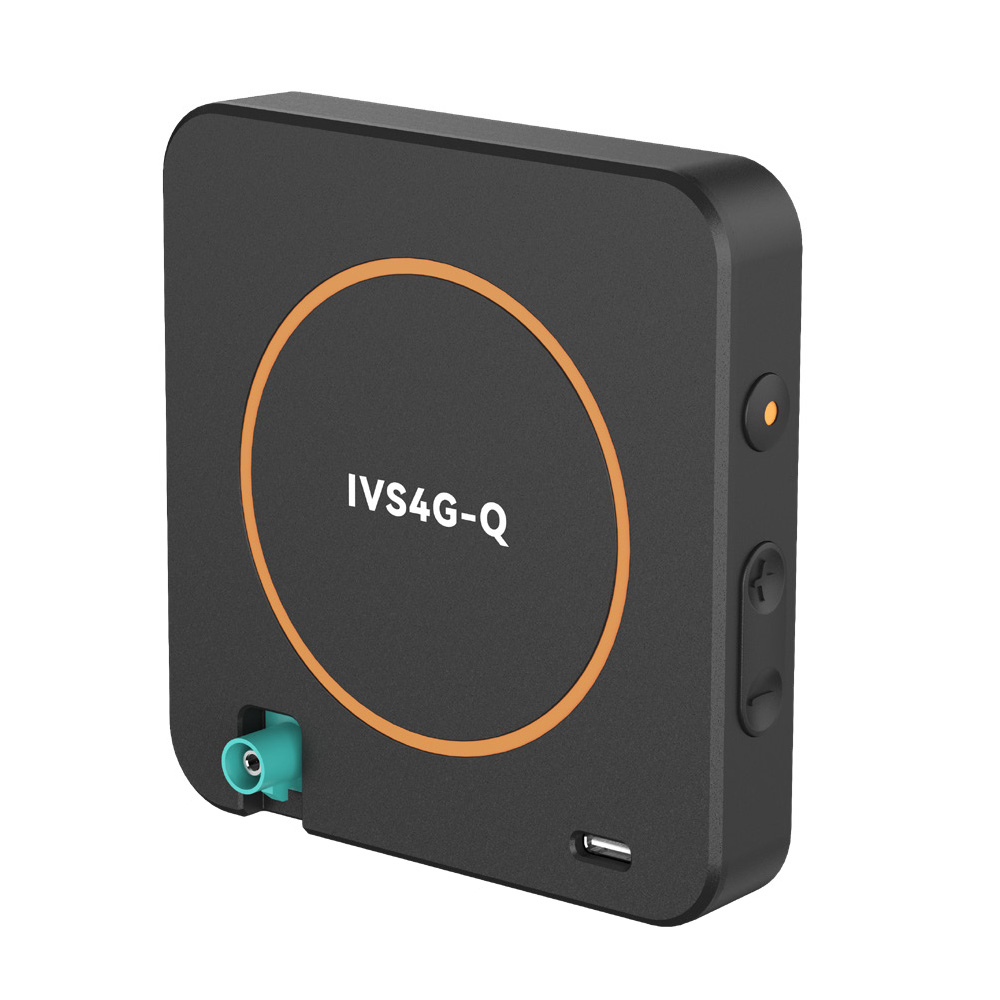

| Interface | GMSL / FAKRA / Type-C |
| Wireless | Wi-Fi |
| Power input | Type-C (5V 3A) |
| Power consumption | ≤ 15W |
| Protection rating | IP67 |
| Operating temperature | −20°C to +60°C |
| Weight | < 400g |
| Dimensions | 96 × 92 × 18 mm |
| AI recognition | Supported |
| Thermal lens options | Roof mount (6mm) / Windshield mount (9mm) |
