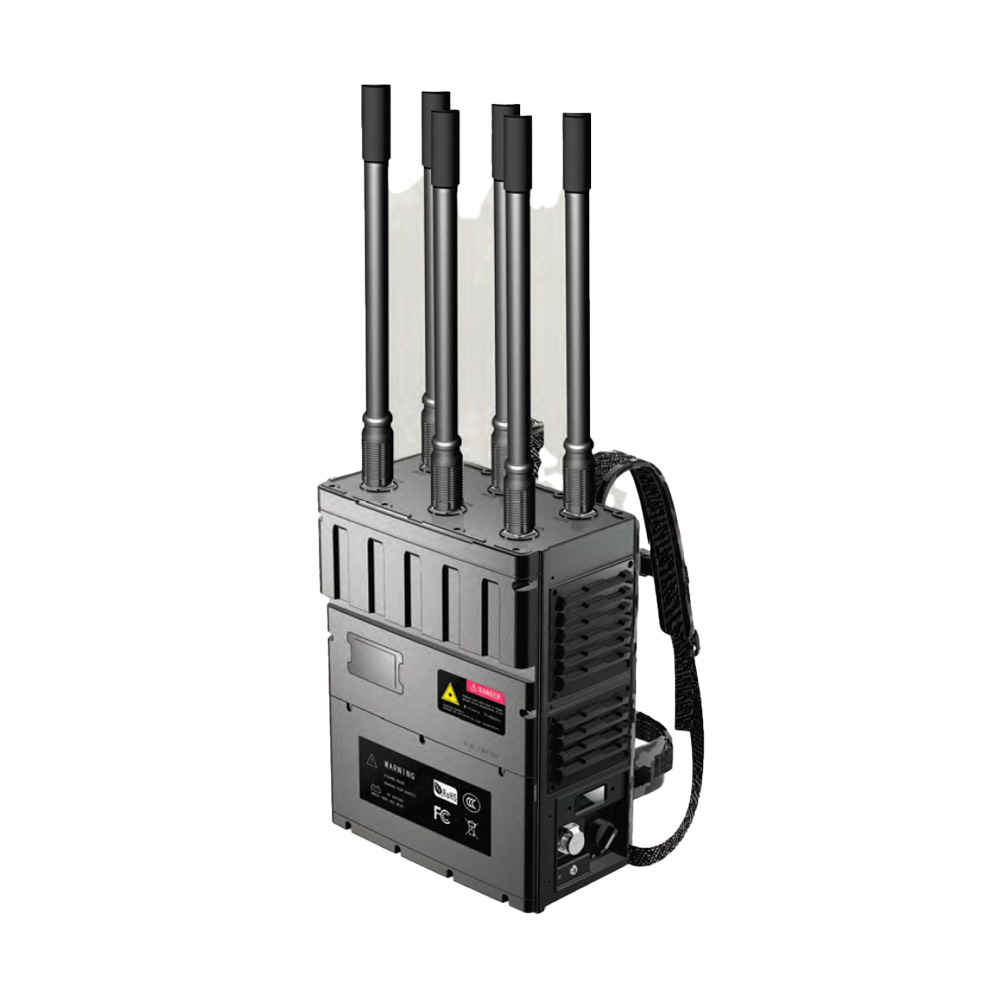

ManPack JAM6-UAV – High-Power Portable Backpack Drone Signal Jamming System
ManPack JAM6-UAV – High-Power Portable Backpack Drone Signal Jamming System
The ManPack JAM6-UAV is a highly portable and lightweight backpack-style drone signal jamming system designed for complex and restrictive environments where vehicles cannot operate. Its mobility allows operators to carry the device through rugged terrain, narrow passages, steep hills, stairways, and other hard-to-reach areas, enabling efficient response and increased operational safety.
This portable jamming system is engineered to counter small civilian UAVs within close range and disrupt common long-distance remote-control signals, providing effective field protection.
Key Features
- Supports simultaneous jamming across up to 6 frequency modules.
- Backpack-style form factor with excellent portability and a total output power of up to 150 W.
- Continuous operation capability, functioning reliably even under high-temperature conditions.
- Built-in battery providing more than 2 hours of standby time.
- Rechargeable via AC or DC power sources.
- Modular design for convenient maintenance, servicing, and upgrading.
- System design meets standardized military requirements.
Technical Specifications
| Frequency Range | 20–3000 MHz |
|---|---|
| Total Power | Up to 150 W |
| Number of Modules | 6 |
| Cooling System | Intelligent cooling system |
| Protection System | SWR protection, over-voltage, and over-current protection |
| Antenna Type | High-gain omnidirectional antennas |
| Antenna Quantity | 6 |
| Internal Battery | 23 AH / 24–28 VDC |
| Main Unit Weight | Approx. 18 kg |
