MANTA 5 DC
MANTA 5 DC

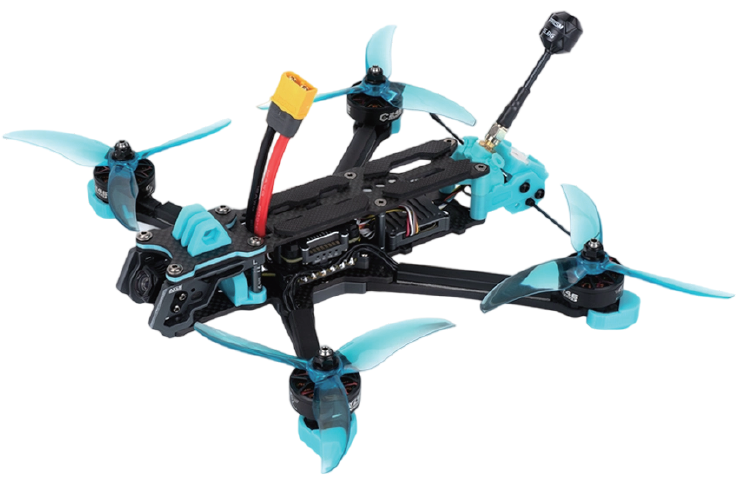

The Axisflying MANTA 5 DC is an FPV drone platform for freestyle, cinematic, long-range, or professional UAV applications. It is organized here with key build details and configuration notes for quick comparison.
Key Features
- FPV drone platform for build planning and configuration comparison
- Frame, stack, mounting, battery, motor, and VTX details organized when available
- Suitable for evaluating freestyle, cinematic, or long-range UAV setups
Specifications
| Recommended Motor | C246 1850KV / 2050KV 6S |
|---|---|
| Recommended Battery | Tattu 1300 mAh 6S |
| Recommended Propeller | BB39 (Max 5.1 inch) |
| Recommended Stack | Argus |
| VTX | DJI O4 Lite / CADDX AIR UNIT / LINK KIT / Analog VTX |
| Frame Type | DC type |
| Wheelbase | 229 mm |
| Bottom Plate Thickness | 2.5 mm |
| Top Plate Thickness | 2.5 mm |
| Carbon Plate Material | T700 |
| Electronics stack height | 25 mm |
| Arm Thickness | 5 mm |
| Camera Spacing | 14-20 mm |
| FC Stack Mounting | M3*30.5 / 20 mm |
| VTX Mounting | M2*20 mm M3*30.5 mm |
| Motor Mounting | 16*16 mm 482 g |
| All-Up Weight | 10 km |
