MANTA 5 PRO
Request a Quote
Contact us for pricing, availability, bulk orders and OEM/ODM requirements.
MANTA 5 PRO
MANTA 5 PRO

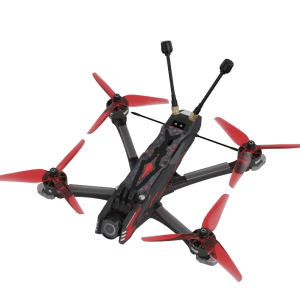

The Axisflying MANTA 5 PRO is an FPV drone platform for freestyle, cinematic, long-range, or professional UAV applications. It is organized here with key build details and configuration notes for quick comparison.
Key Features
- FPV drone platform for build planning and configuration comparison
- Frame, stack, mounting, battery, motor, and VTX details organized when available
- Suitable for evaluating freestyle, cinematic, or long-range UAV setups
Specifications
| Recommended Motor | C227-1960KV |
|---|---|
| Recommended Battery | LIHV / LIPO 1300-1800 mAh 6S |
| Recommended Propeller | 5.1*3.8*3 (Max 5.1 inch) |
| Recommended Stack | Argus Mini 55 A |
| VTX | DJI O4 Air Unit / Analog VTX |
| Frame Type | DC / Wide-X |
| Wheelbase | 229 mm |
| Bottom Plate Thickness | 3 mm |
| Top Plate Thickness | 2 mm |
| Carbon Plate Material | T700(forged pattern) |
| Electronics stack height | 23 mm |
| Arm Thickness | 6 mm |
| Camera Spacing | 19-20 mm |
| FC Stack Mounting | M3*20 mm |
| VTX Mounting | M2*20 mm |
| Motor Mounting | 16*16 mm 475 g |
| All-Up Weight | 10 km |
