Outdoor Fixed Anti-Drone Detection & Jamming System – K4
Outdoor Fixed Anti-Drone Detection & Jamming System – K4

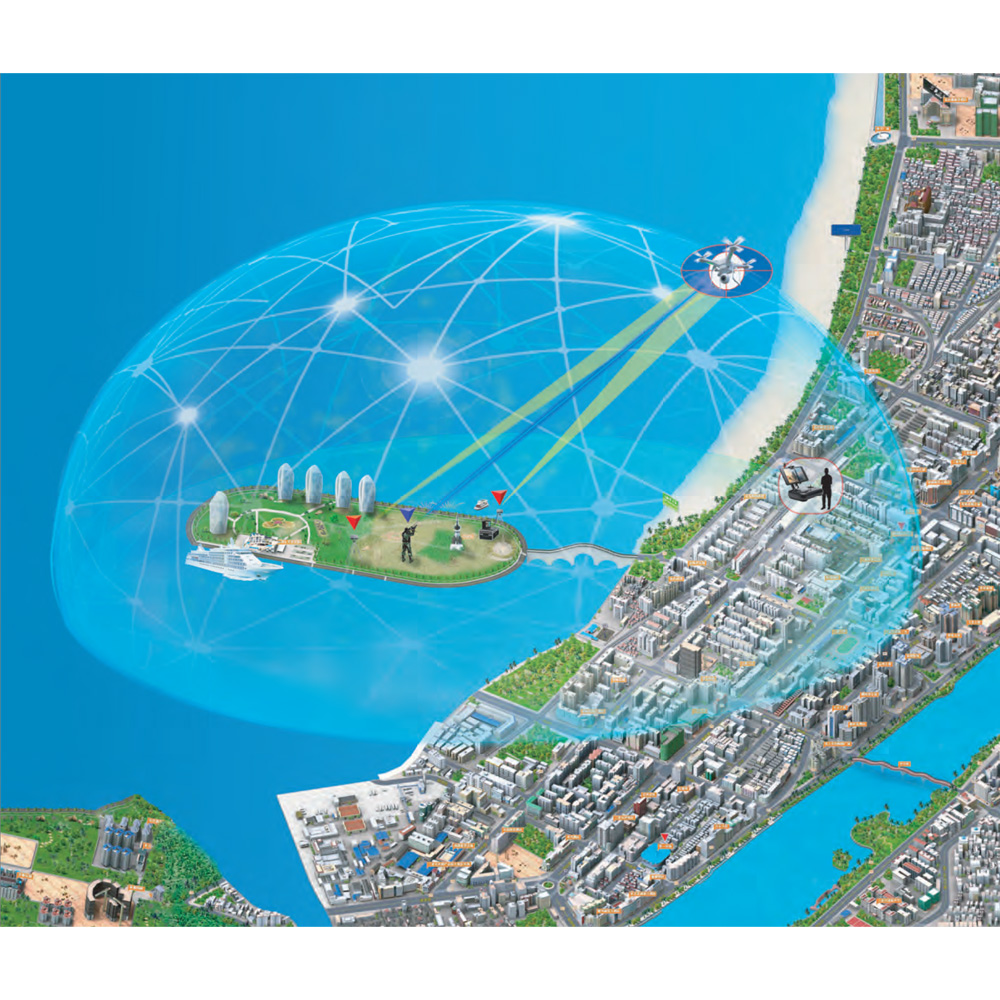

The K4 Outdoor Fixed Anti-Drone Detection & Jamming System is designed to secure open-area fixed sites by enabling security personnel to monitor, detect, and neutralize unauthorized drones directly through the central control room. The system ensures continuous protection for outdoor facilities by providing reliable situational awareness and interception capability.

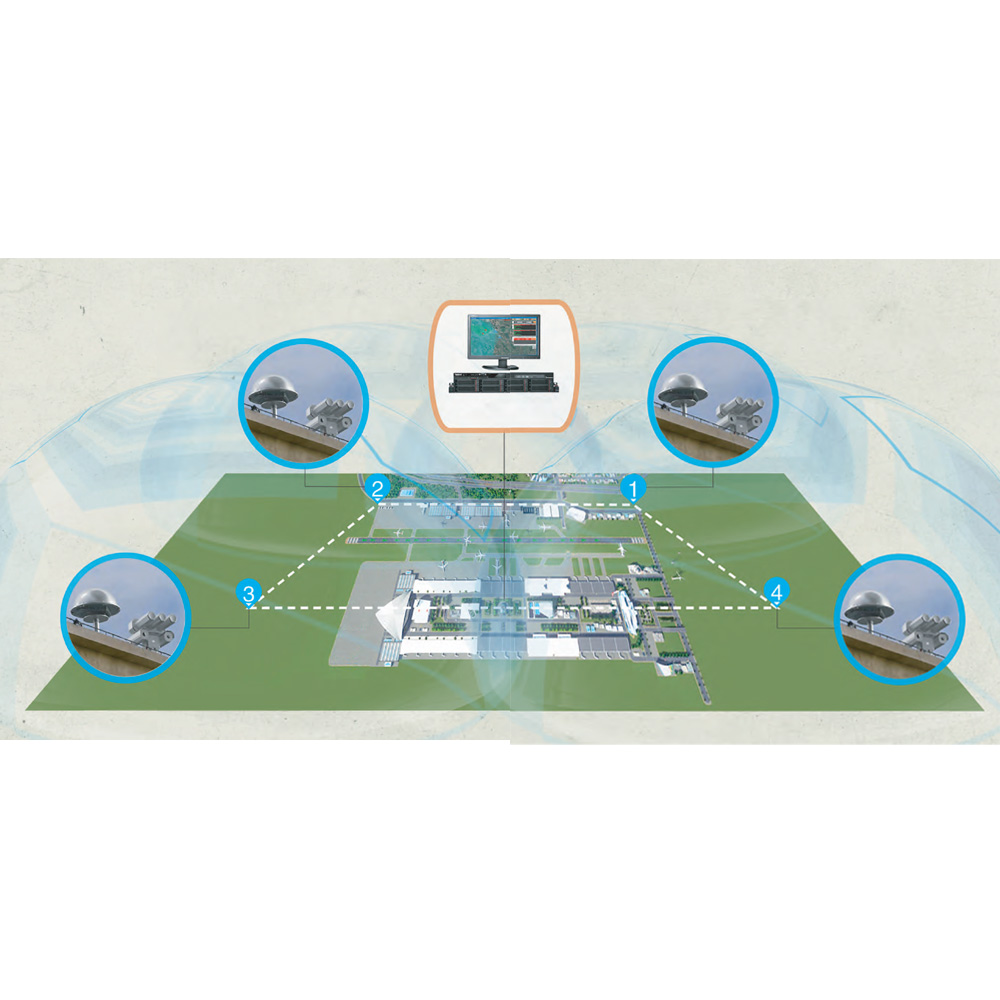

By deploying 2–3 sets of K4 units at elevated fixed positions, the system offers highly accurate cross-directional positioning of incoming drones. Once a target UAV is detected approaching from outside the secured perimeter, the K4 system initiates effective interference to prevent intrusion.
In the event of a drone swarm attempting to breach the protected zone, the system can immediately activate high-power omnidirectional jamming to maintain the overall safety of the secured environment.
Technical Specifications – Model K4
| Frequency Range (MHz) | Power (W) |
|---|---|
| 900–930 MHz | 20 |
| 1574–1576 MHz (GPS L1) | 10 |
| 2400–2485 MHz | 20 |
| 5725–5850 MHz | 10 |
| Jamming Range | >1.5 km |
