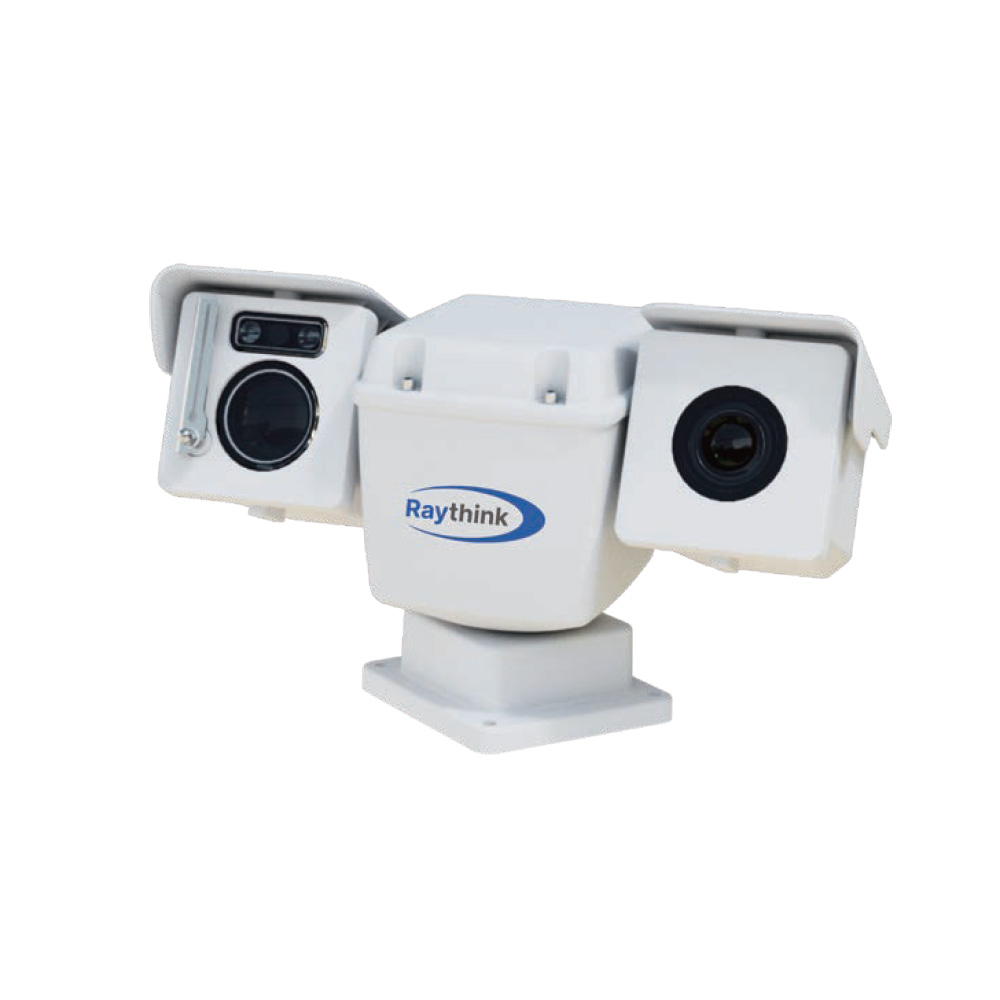

PC264T1 Dual-Spectrum Lightweight PTZ Network Camera
PC264T1 Dual-Spectrum Lightweight PTZ Network Camera
The PC264T1 is a dual-spectrum lightweight PTZ camera integrating infrared thermal imaging,
high-definition visible-light monitoring, and intelligent analysis.
It supports fire point detection, perimeter intrusion detection, tripwire, and area monitoring,

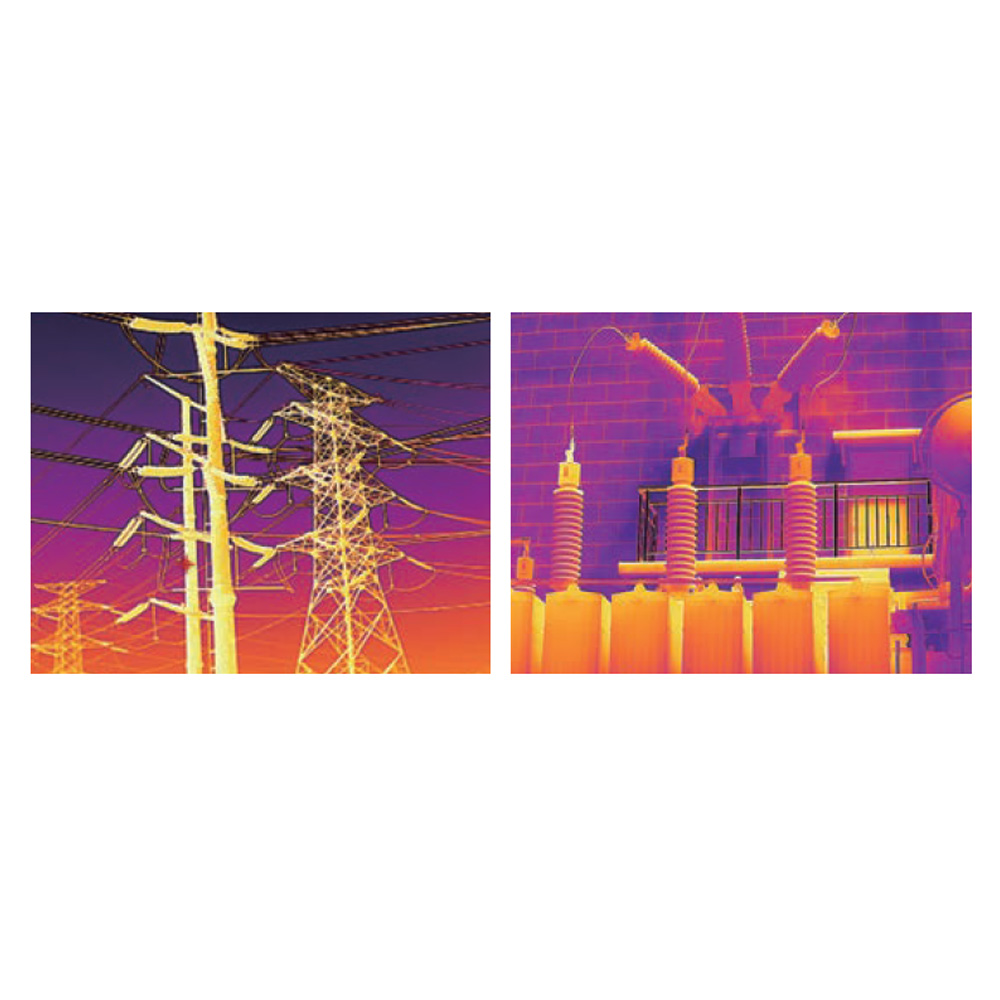

while the built-in industrial-grade temperature analysis tool enables accurate and real-time temperature monitoring.
It is suitable for equipment temperature inspection, factory perimeter security, and machine vision patrol scenarios.
Technical Specifications
| Thermal Imaging | |
|---|---|
| Sensor Type | Uncooled VOx infrared focal plane detector |
| Spectral Range | 8–14 μm |
| NETD | <40mK (@25°C, F#1.0) |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Focal Length | 13mm / 25mm |
| Visible-Light Imaging | |
| Sensor | 1/1.8” 4MP CMOS |
| Resolution | 2688 × 1520 |
| Lens Focal Length | 6.5–130mm 20× optical zoom |
| PTZ Performance | |
| Horizontal Range | 360° continuous rotation |
| Vertical Range | -90° ~ +90° |
| Preset Positions | 1024 |
| PTZ Modes | Preset cruise / pattern scan / patrol / double-light linkage / 360° sweeping |
| Temperature Measurement | |
| Range | -20°C ~ +550°C |
| Accuracy | ±2°C or ±2% (whichever is greater) |
| Intelligent Functions | |
| Fire Detection | Supported |
| Smoke Detection | Supported |
| Smart Video Analysis | Tripwire, intrusion, area detection, loitering, personnel detection |
| System Interface | |
| Power Input | DC 24V |
| Network | 1 × RJ45 10M/100M/1000M adaptive Ethernet port |
| Audio Input | 1 channel |
| Audio Output | 1 channel |
| Alarm Input | 2 channels |
| Alarm Output | 2 channels |
| Storage | Supports Micro SD card (max 256GB) |
| RS485 | 1 × RS485 interface |
| General | |
| Operating Temperature / Humidity | -40°C ~ +70°C; < 90% RH |
| Protection Level | IP66, TVS 6000V lightning surge protection |
| Dimensions | 358 × 164.5 × 203 mm |
| Weight | 4.5 kg |
