SCH35 Thermal Imaging Scope
SCH35 thermal imaging scope with 640×512 resolution, 35mm lens, and 1818m detection range for clear and reliable observation.

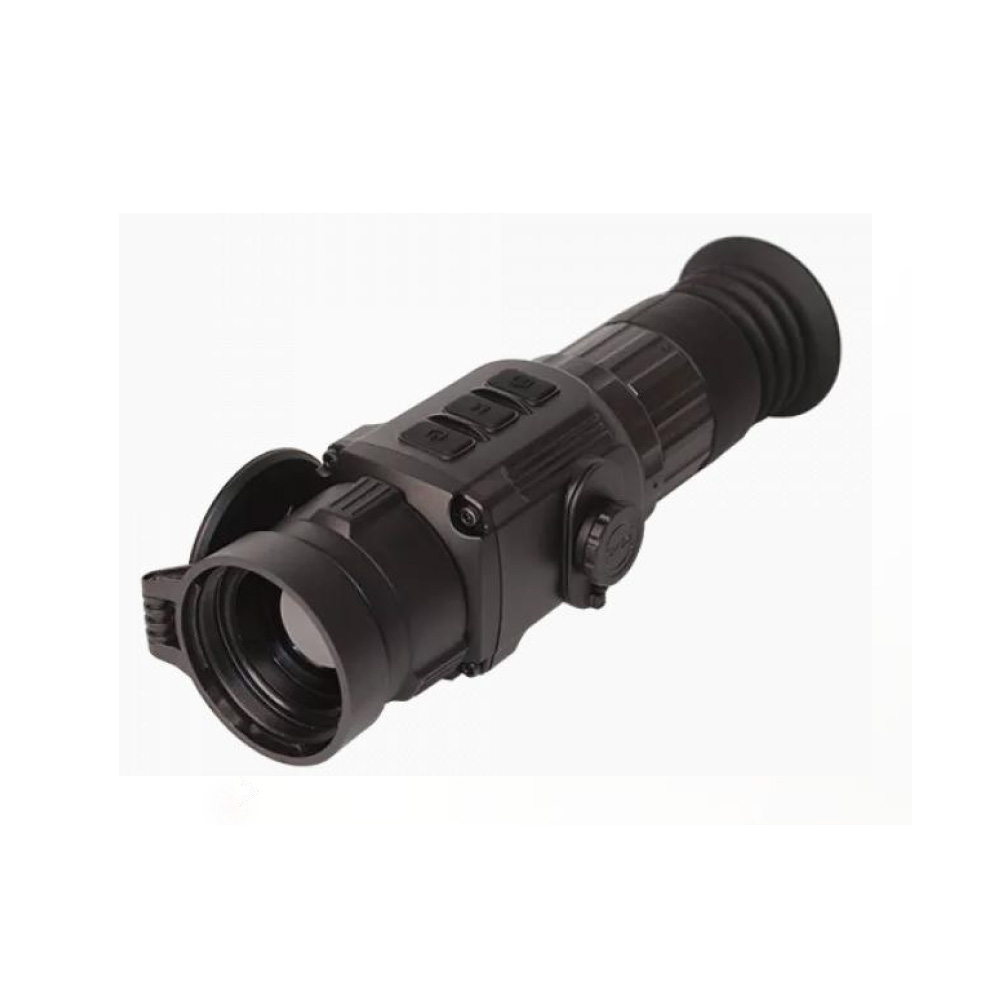

SCH35 Thermal Imaging Scope
The SCH35 Thermal Imaging Scope is a high-performance thermal optic designed for mid-to-long range observation with enhanced clarity and sensitivity. Featuring a 640×512 thermal sensor and 12μm pixel pitch, it delivers detailed thermal imaging in low-visibility environments.
Equipped with a 35mm objective lens and 3x magnification, the SCH35 offers a detection range of up to 1818 meters. Its optimized field of view provides a balanced perspective for both target detection and situational awareness.
The scope features a 1024×768 OLED display for sharp image output and comfortable viewing. Powered by CR123 batteries, it supports up to 3.5 hours of operation. With an IP67-rated housing and durable construction, the SCH35 is built for reliable use in demanding outdoor environments.
Technical Specifications
| Model | SCH35 |
| Resolution | 640 × 512 |
| Pixel Size | 12μm |
| NETD | < 40mK |
| Frame Rate | 50Hz |
| Objective Lens | 35mm |
| Field of View | 11 × 8 |
| Magnification | 3x |
| Detection Range | 1818m |
| Display | OLED, 1024 × 768 |
| Battery | CR123 ×2 |
| Operation Time | Up to 3.5 hours |
| Protection | IP67 |
