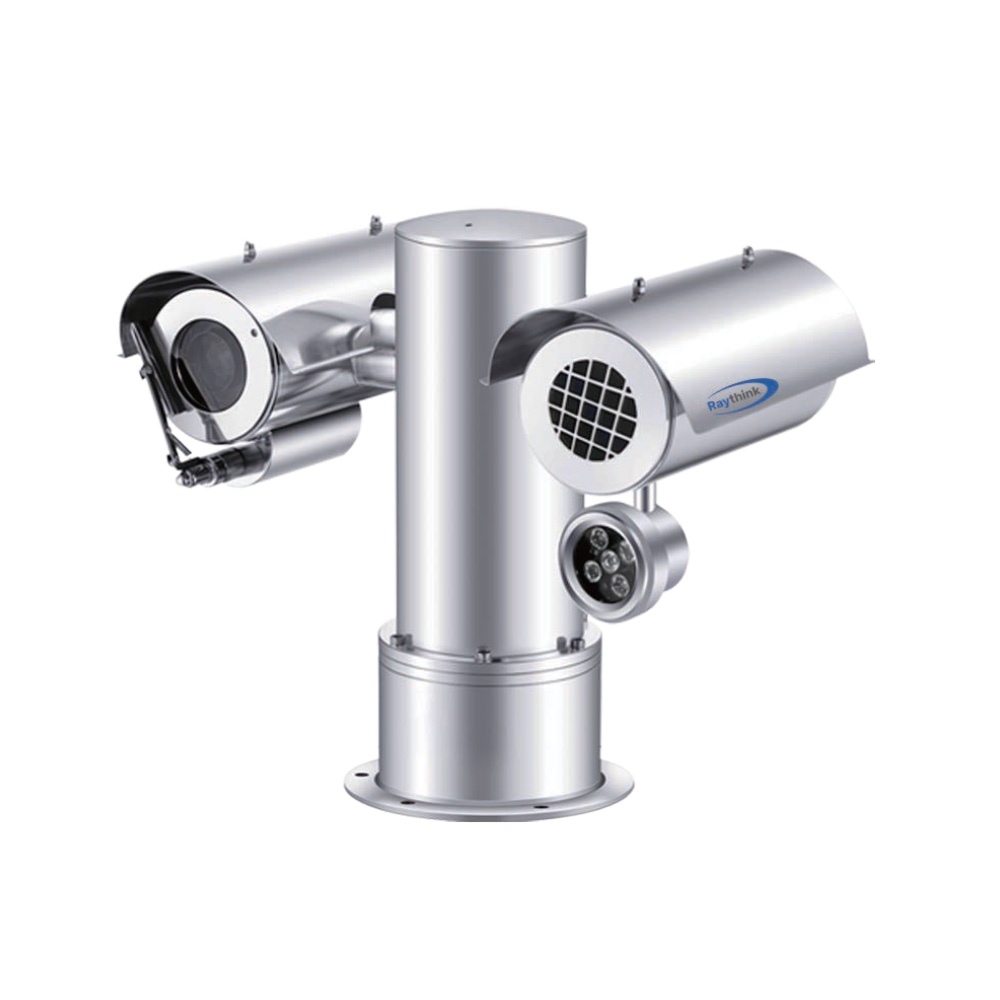

TE464 Dual-Spectrum Explosion-Proof PTZ Thermal Imaging Network Camera
TE464 Dual-Spectrum Explosion-Proof PTZ Thermal Imaging Network Camera
The TE464 is a dual-spectrum explosion-proof PTZ thermal imaging camera designed for industrial safety monitoring.

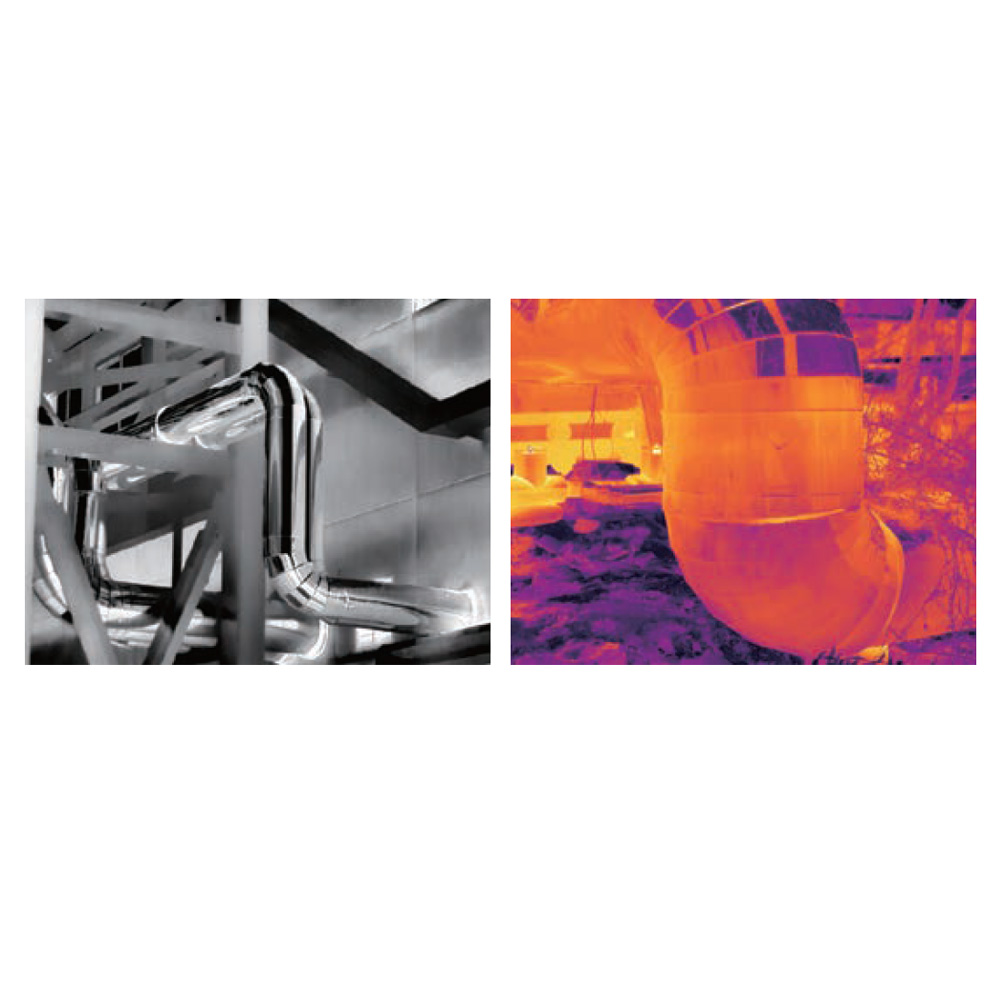

It integrates a high-resolution visible-light camera and an advanced infrared thermal detector, supporting 640×512 thermal imaging resolution.
The device meets gas- and dust-level dual explosion-proof certifications, suitable for use in Zone 1/2 gas environments and Zone 21/22 dust environments, helping enterprises maintain safe operations.
With long-range detection capability, intelligent fire-spot detection, and multiple smart video analysis features, the TE464 is ideal for use in factories, chemical plants, industrial zones, hazardous material storage, and safety supervision scenarios.
Technical Specifications
| Parameter | TE464 |
|---|---|
| Thermal Imaging | |
| Detector Type | Uncooled VOx infrared detector |
| Spectral Range | 8–14 μm |
| NETD | ≤40mK (@25°C, F#1.0, 25Hz) |
| Thermal Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Thermal Lens | 25 mm |
| Visible-Light Imaging | |
| Sensor | 1/1.8″ 4MP Progressive Scan CMOS |
| Resolution | 2688 × 1520 |
| Lens Focal Length | 6.5–130 mm |
| PTZ Functions | |
| Pan Range | 360° continuous rotation |
| Tilt Range | -90° to +90° |
| Temperature Measurement | |
| Measurement Range | -20°C to +550°C |
| Accuracy | ±2°C or ±2% (whichever is greater) |
| Temperature Analysis | Supports point / line / area temperature monitoring and linkage alarms |
| Intelligent Functions | |
| Fire Detection | Supported |
| Smart Analysis | Intrusion detection, area entry/exit, loitering detection, and other intelligent analytics |
| Alarm Linkage | Record / snapshot / email / cloud upload / alarm output |
| System Interface | |
| Power Input | AC85–260V / DC24V 3A (optional) |
| Network Interface | 1 × RJ45 10M/100M adaptive Ethernet port |
| Alarm Input | 1 channel |
| Alarm Output | 1 channel |
| RS485 | 1 × RS485 port |
| General | |
| Operating Temperature / Humidity | -40°C to +60°C; <90% RH |
| Explosion-Proof Rating | Exd IIC T6 Gb / Extb A21 IP68 T80°C |
| Ingress Protection | IP68 |
| Housing Material | 304/316L stainless steel (suitable for harsh or corrosive environments) |
| Power Consumption | <100 W (heater enabled) |
| Dimensions | 436 × 296 × 406 mm |
| Weight | 27 kg |
