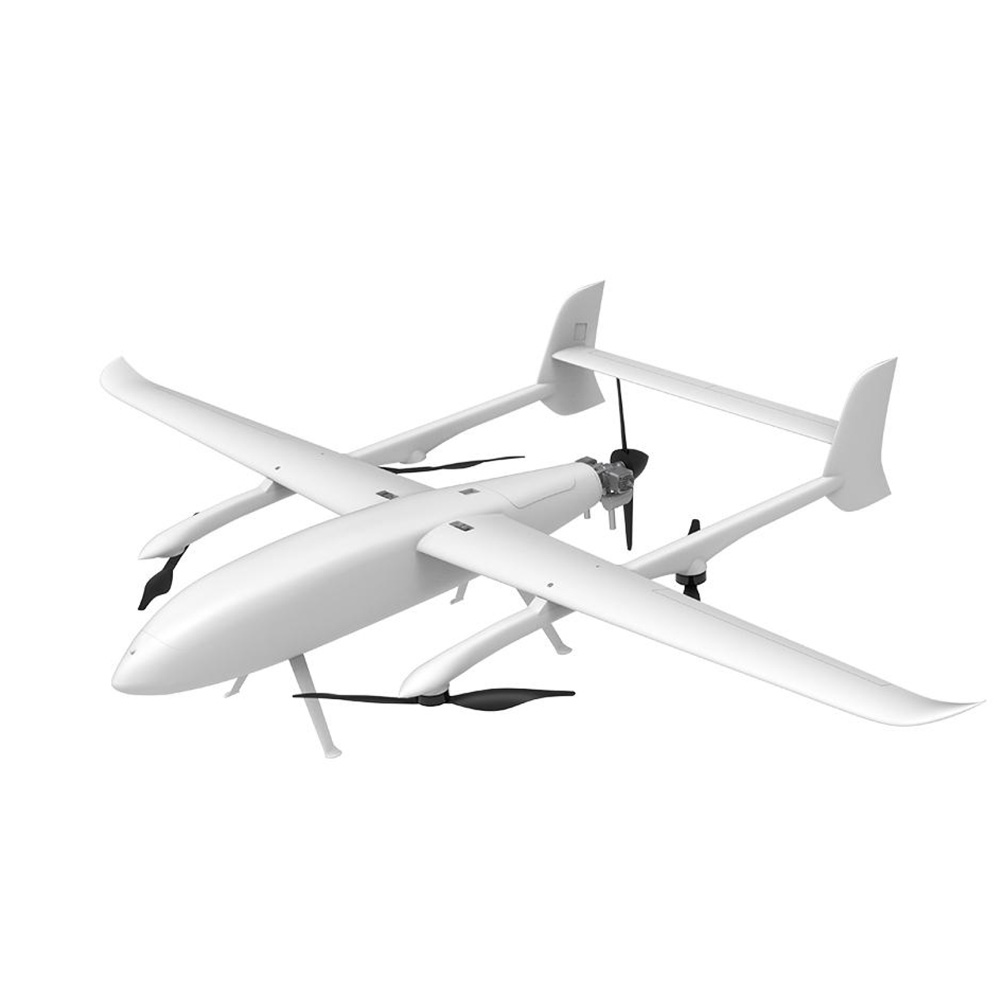

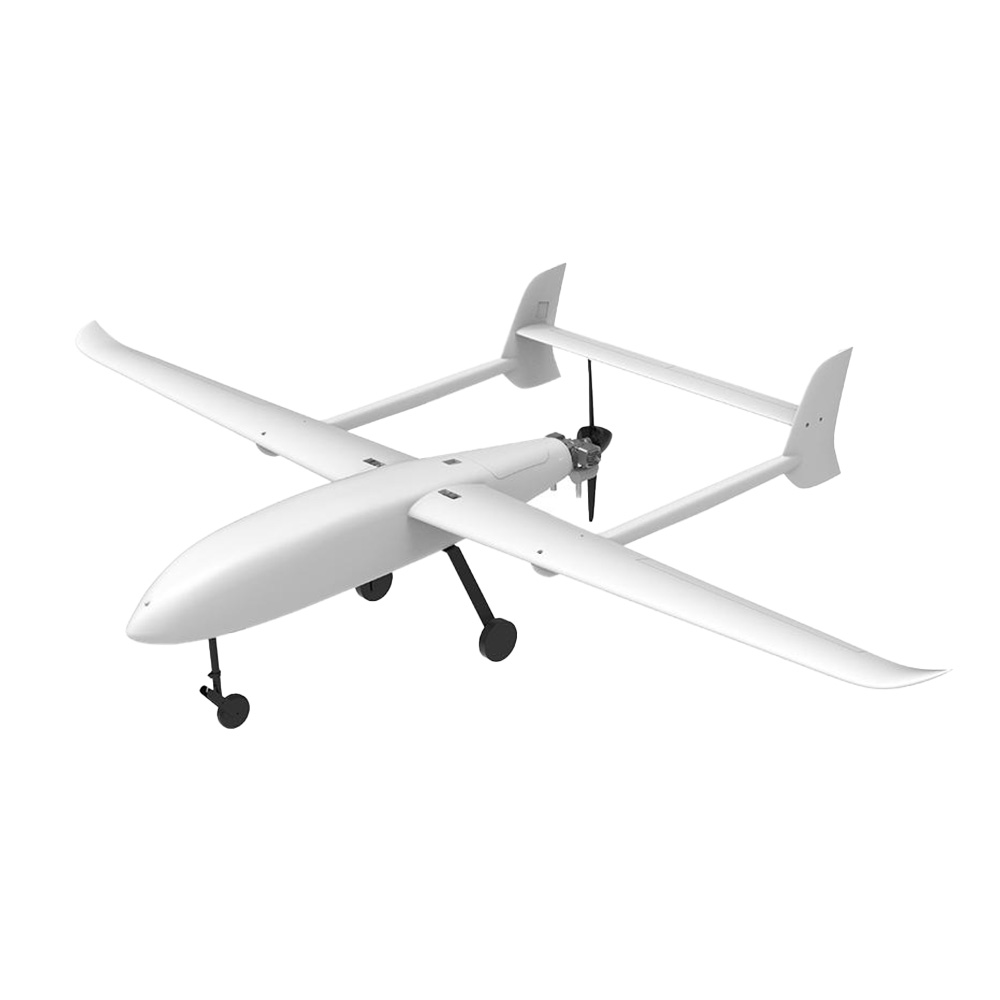

Tianxun TX-35V / TX-35F Sky Fox VTOL Aircraft Platform
Tianxun TX-35V / TX-35F Sky Fox VTOL Aircraft Platform
The Tianxun TX-35V / TX-35F Sky Fox VTOL platform is a lightweight, long-endurance unmanned aircraft system designed for multi-mission scenarios.
Featuring a 35 kg MTOW and up to 10 hours of maximum endurance, the aircraft supports both vertical takeoff/landing and conventional runway taxiing,
providing flexible deployment across complex environments.
Built with aviation-grade carbon fiber composites, the Sky Fox series ensures high structural strength and stability.
Its dual-control safety architecture enables partial operation even if one side of the control surfaces is compromised.
The 12 kg payload capacity supports mapping, patrol, logistics, emergency response, and multi-domain reconnaissance missions.
- Long endurance performance — up to 10 hours of maximum flight time with efficient gasoline power.
- Flexible takeoff/landing modes — supports VTOL and taxiing modes to handle various terrains.
- Carbon-fiber composite airframe — lightweight structure with excellent torsional and bending resistance.
- Dual-control security design — retains partial control even when one side experiences actuator failure.
- 12 kg payload capacity — suitable for mapping, transport, inspection, and emergency missions.
Technical Specifications
| Length | 2360 mm |
| Height | 700 mm |
| Wingspan | 3920 mm |
| Airframe Material | Aviation carbon fiber composites |
| Engine | Gasoline engine |
| Payload (with fuel) | VTOL: 12 kg / Taxiing: 20 kg (Payload & fuel) |
| MTOW | 35 kg |
| Safe Take-off Speed | 21–40 m/s |
| Cruising Speed | 26 m/s |
| Fuel Consumption | Gasoline: VTOL 1 L/h | Taxiing 0.95 L/h |
| Service Ceiling | 5000 m |
| Operating Temperature | -20°C ~ +55°C |
| Wind Resistance | Take-off level 5 / Flight level 6
(Take-off 8.0–10.7 m/s | Cruising 10.8–13.8 m/s) |
