TX-175V / TX-180F “Tianxun White Crane” VTOL Fixed-Wing UAV Platform
TX-175V / TX-180F “Tianxun White Crane” VTOL Fixed-Wing UAV Platform

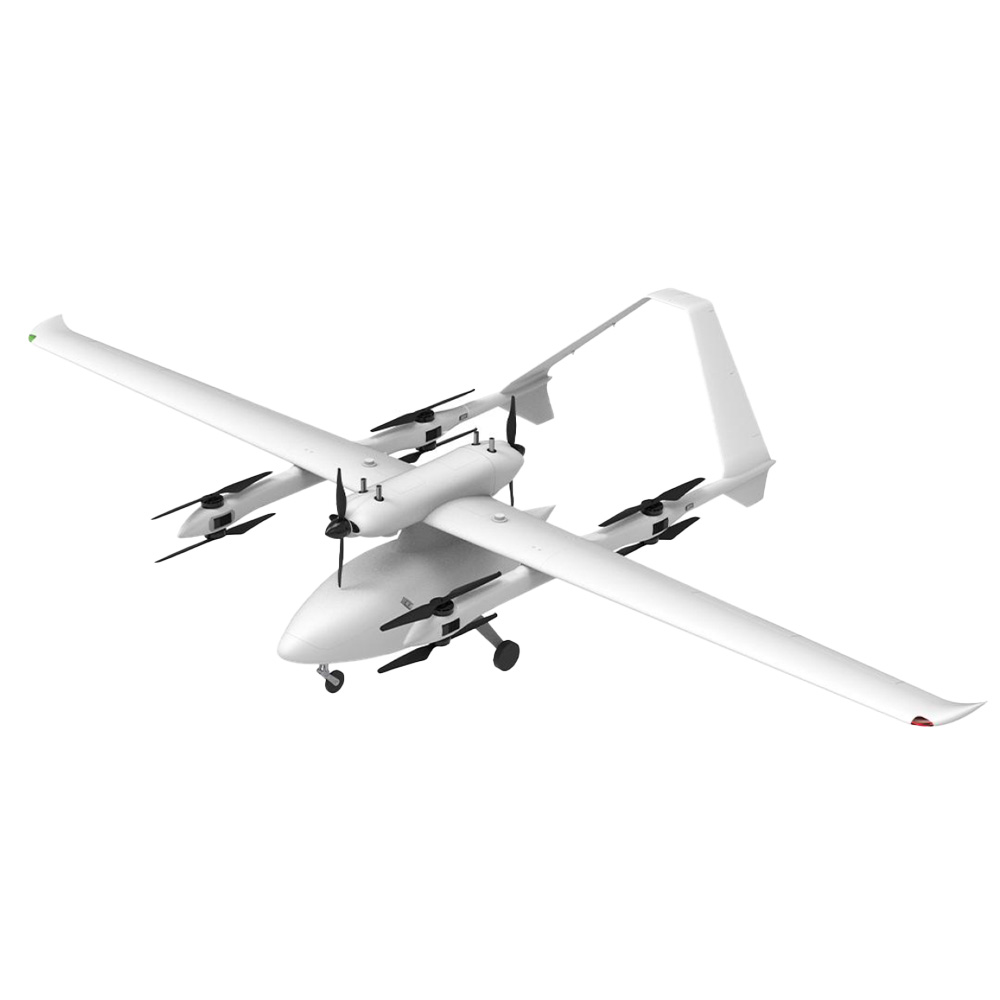

The TX-175V / TX-180F is a high-payload VTOL fixed-wing UAV platform designed for long-range missions,
heavy-load transport, and complex-environment operations. With a maximum takeoff weight of 175 kg (VTOL)
and a load capacity of 65 kg with gasoline, the platform supports dual-mode takeoff and landing—vertical

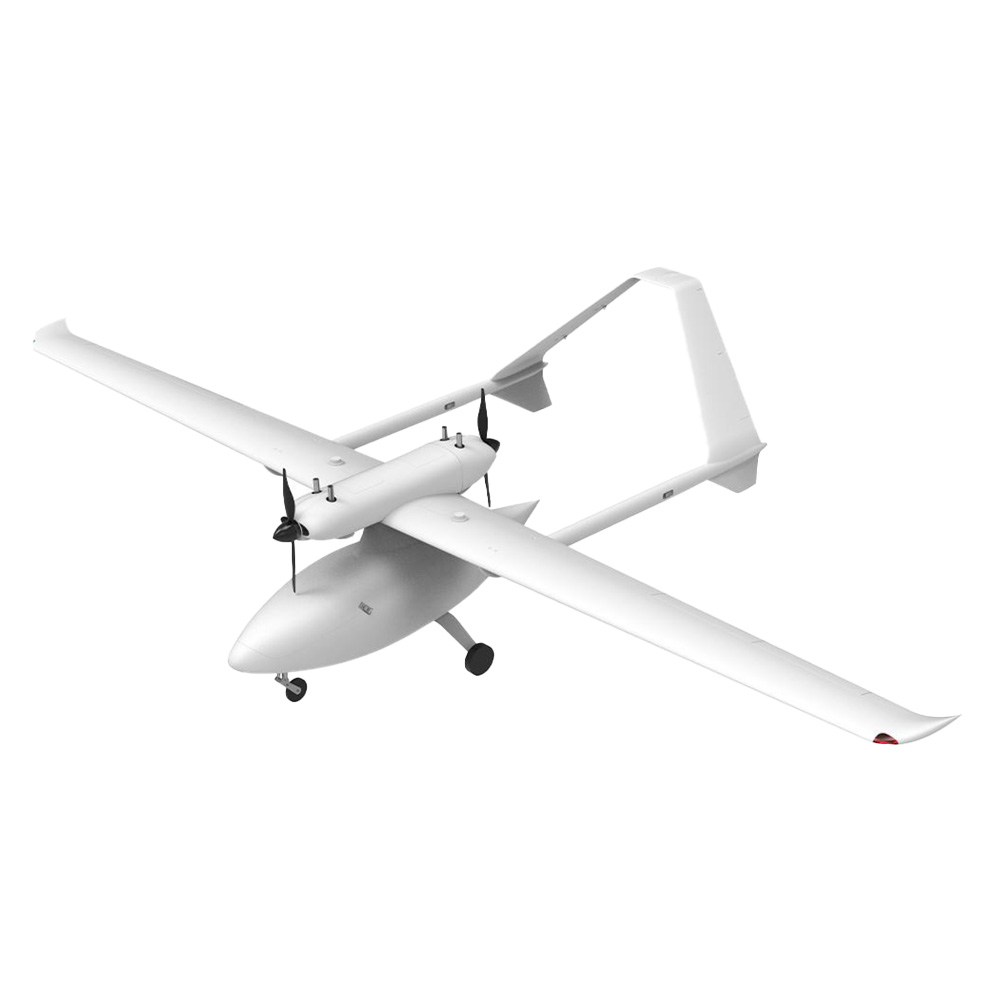

lift for confined areas and taxiing mode for extended-runway operations.
Featuring advanced carbon-fiber structure, eight distributed lift motors, dual-redundant control layout,
and separate fuel/payload compartments, the aircraft ensures operational safety even under partial-damage
conditions. Its three-section detachable wing design enables fast deployment, easy transport, and flexible
mission loading, making it suitable for logistics, inspection, mapping, defense, and long-endurance
applications.
Key features
- Large payload capacity — Supports up to 65 kg with gasoline; VTOL maximum takeoff
weight 175 kg. - Dual-mode operation — VTOL takeoff/landing for confined spaces and taxiing mode for
high-efficiency long-runway operations. - High-safety redundant design — Eight lift motors, dual ailerons, and independent
fuel/payload compartments enhance survivability. - Fast mission deployment — Three-section detachable wings and modular design improve
transportation and rapid-assembly efficiency. - Long-range endurance — Efficient gasoline engine provides stable cruising performance
with verified fuel consumption of 7.5 L/h. - Long-distance flight capability — Suitable for logistics transport, patrol,
emergency supply, mapping, and border-security missions.
Technical specifications
| Parameter | Specification |
|---|---|
| Wingspan | 8000 mm |
| Length | 3794 mm |
| Height | 1764 mm |
| Airframe material | Aviation-grade carbon-fiber composites |
| Engine | Gasoline engine |
| Load capacity | VTOL: 65 kg (with gasoline) / Taxiing: 130 kg (payload + fuel) |
| Maximum takeoff weight | VTOL: 175 kg / Taxiing: 180 kg |
| Cruising speed | 26–45 m/s |
| Fuel consumption | VTOL 7.5 L/h / Taxiing 7 L/h |
| Service ceiling | 5000 m |
| Operating temperature | −25 °C to +55 °C |
| Wind resistance | Takeoff: level 5 (0–10.7 m/s) / Flight: level 6 (10.8–13.8 m/s) |
*Flight time and range may vary based on mission load, weather, and operational conditions.
