WK-SW 360 All-Direction UAV Detection & Identification System
WK-SW 360 All-Direction UAV Detection & Identification System

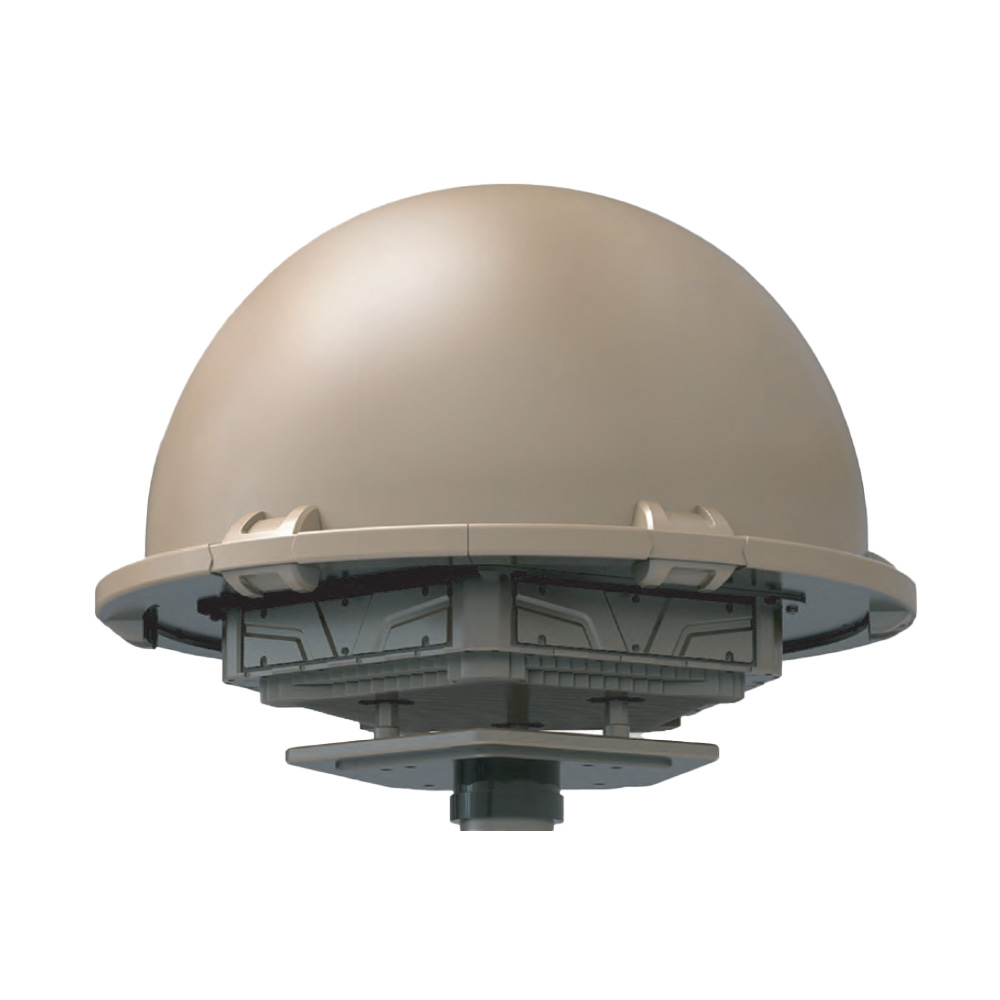

The WK-SW 360 is a 360° all-direction UAV detection and identification system designed for
industrial security, perimeter protection, airborne safety monitoring, and multi-platform integration.
It supports open protocols, allowing connection with radar, optical sensors, strike solutions or alarm systems.
With a detection radius of 5–8 km (airspace), the system provides real-time scanning, UAV feature
recognition, model identification, operator identification, flight path tracking, and automated reporting.
- Open protocol design for seamless integration with radar, EO systems and defense platforms.
- Detection radius of 5–8 km (airspace), extendable depending on environment.
- Full 360° omnidirectional scanning.
- Built-in UAV feature database for manufacturer and model identification.
- Professional management software with automated alarms and reporting.
- Configurable UAV identification zones, alert zones and intrusion warning zones.
- Multi-target detection, model recognition and UAV operator detection.

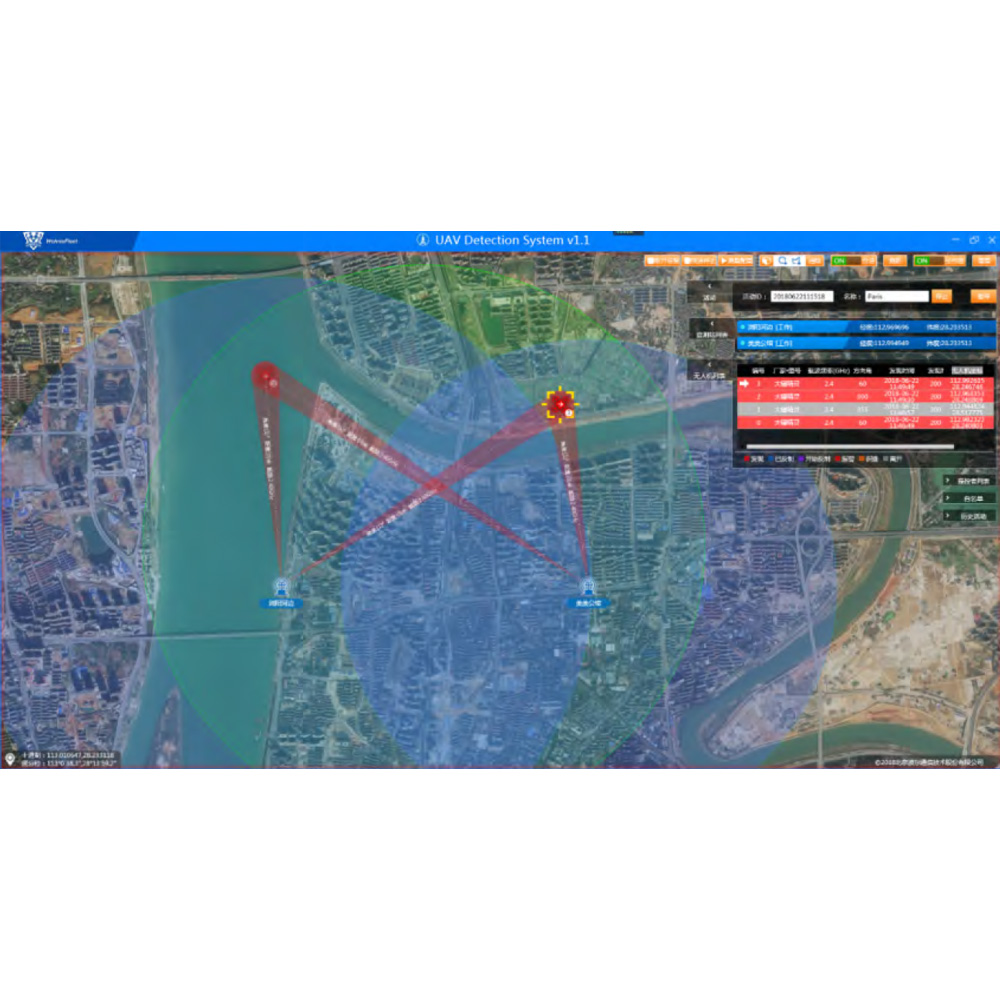

- Real-time positioning, tracking and flight-path visualization.
- Automatic incident summary reports.

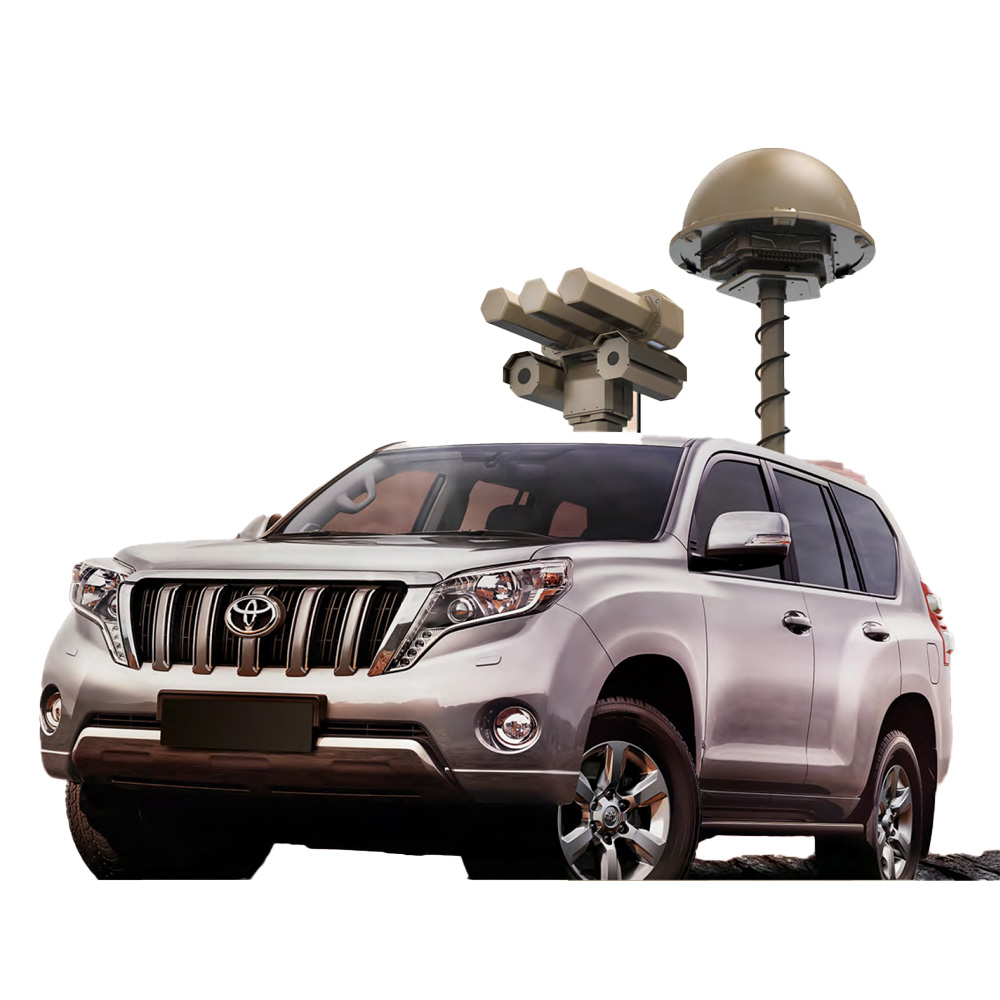

We install the drone detection and strike system on special vehicles, utilizing their mobility and flexibility for rapid deployment in any area that requires enhanced protection, such as: VIP motorcades, venues for important international conferences, large-scale international event locations, military command posts, etc.
Operators can complete the tasks of detecting and striking aerial drones from inside the vehicle, seizing control of the airspace.
The system is usually deployed on 2-3 special vehicles, which allows for more accurate cross-location of drones, and the system will strike all potentially invading drones outside the security zone.
When the security zone is attacked by a drone swarm, we will quickly activate a full-power, directional drone jamming system to ensure the relative safety of the security zone.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 300 MHz – 6000 MHz |
| Detection Radius | 5–8 km (airspace) |
| Scanning Coverage | 360° |
| Angular Accuracy | ≤ 3° (RMS) |
| Antenna Channels | 10 |
| Real-time Bandwidth | 120 MHz |
| First Detection Time | ≤ 3 s |
| Simultaneous UAV Detection Capacity | ≤ 40 targets |
