WK-VIP-JAM UAV – 5-Band Portable Drone Signal Jamming System
WK-VIP-JAM UAV – 5-Band Portable Drone Signal Jamming System

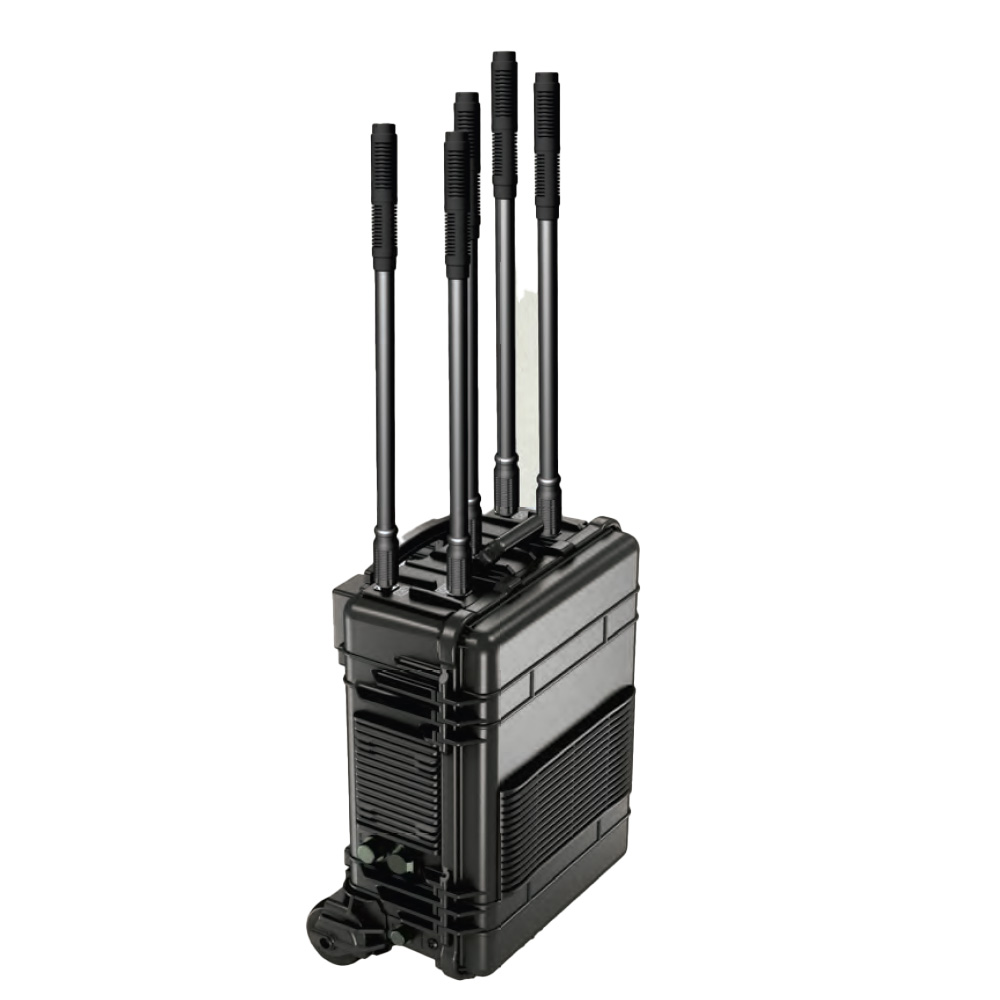

The WK-VIP-JAM UAV is a high-power portable drone signal jamming system equipped with DDS digital signal synthesis technology. It delivers efficient multi-band interference performance and integrates a complete wideband jamming module. With 5 independent jamming modules, the system covers up to 10 different frequency bands and supports a maximum output power of 250–300 W.
Key Features
- High-power portable jammer with on-site programmable frequency and adjustable output power.
- Modular design with individual removable modules for easy maintenance and upgrades.
- Supports up to 5 independent modules capable of covering up to 10 frequency bands.
- Each module includes an LCD display indicating operating frequency and output power.
- Panel-based control, allowing wired control to switch each module on or off.
- Portable trolley-case design for rapid field deployment.
- Internal battery with AC or DC power input options.
- External LCD interface available for real-time battery status display.
- Main unit supports external battery connection for quick replacement during field operations.
Technical Specifications
| Total Power | Up to 300 W |
|---|---|
| Number of Modules | 5 |
| Number of Supported Frequency Bands | 15 |
| Jamming Source | DDS digital synthesis; adjustable frequency and power |
| Antenna Type | High-gain omnidirectional antenna |
| Antenna Quantity | 5 |
| Internal Battery | 35 AH / 24–28 VDC |
| Main Unit Dimensions | 565 × 460 × 270 mm |
| Main Unit Weight | Approx. 35 kg |
