WK-VIP JAM6 / JAM7 / JAM8 – High-Power DDS Wideband Portable Signal Jamming System
WK-VIP JAM6 / JAM7 / JAM8 – High-Power DDS Wideband Portable Signal Jamming System
The WK-VIP JAM6, JAM7, and JAM8 are high-power, wideband portable jamming systems designed for rapid deployment in operational or static environments. Built with DDS digital synthesis modules, the systems can continuously broadcast shielding signals to block remote-controlled triggers, wireless detonation commands, or unauthorized communication signals across the 20–6000 MHz spectrum.

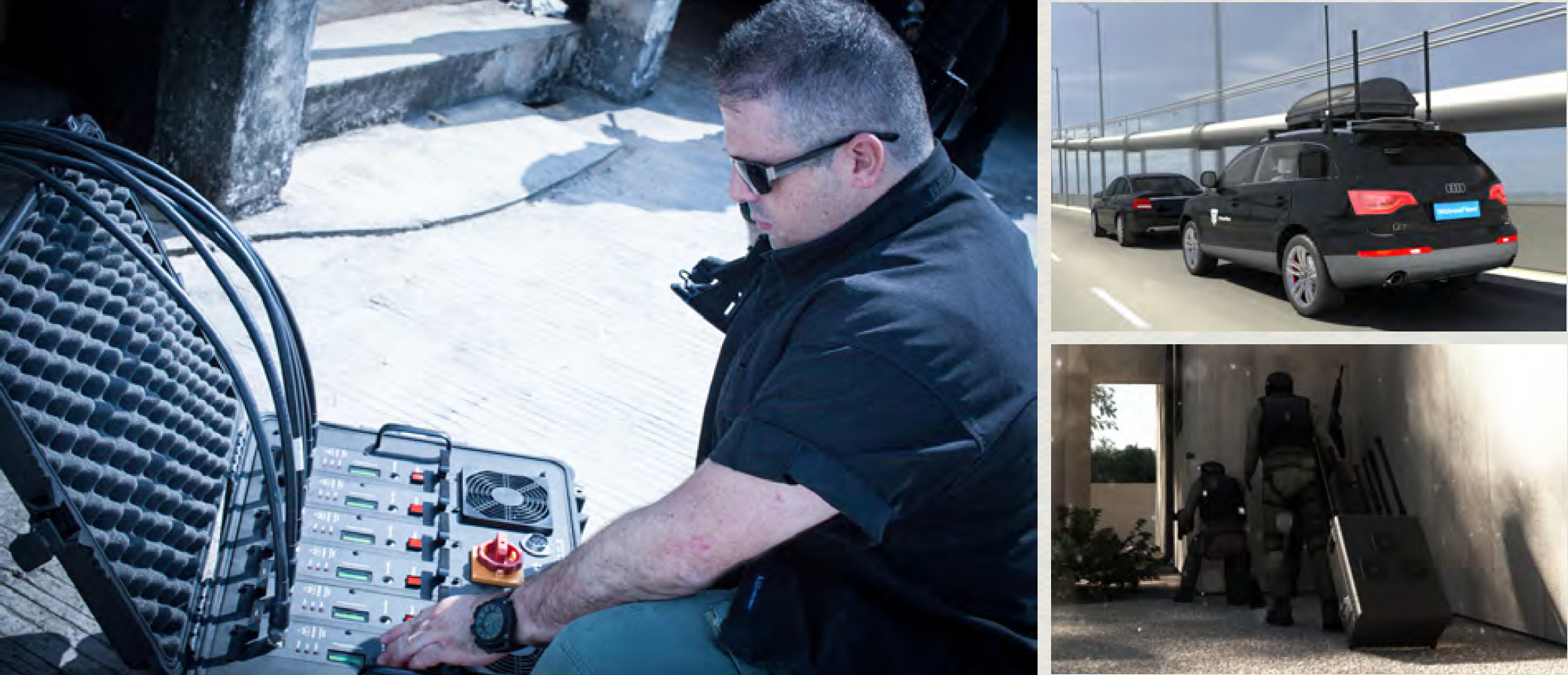

With 6, 7, or 8 independent jamming modules depending on the model, each system supports more than 20 frequency bands and provides a maximum output power of up to 600 W. Designed for military-grade requirements and long-term field reliability, the suitcase-style form factor allows operators to deploy the jamming system quickly during mobile security missions or stationary protection tasks.
Key Features
- Maximum output power up to 600 W for long-distance signal suppression.
- High-power portable jammer with programmable frequencies and adjustable power levels.

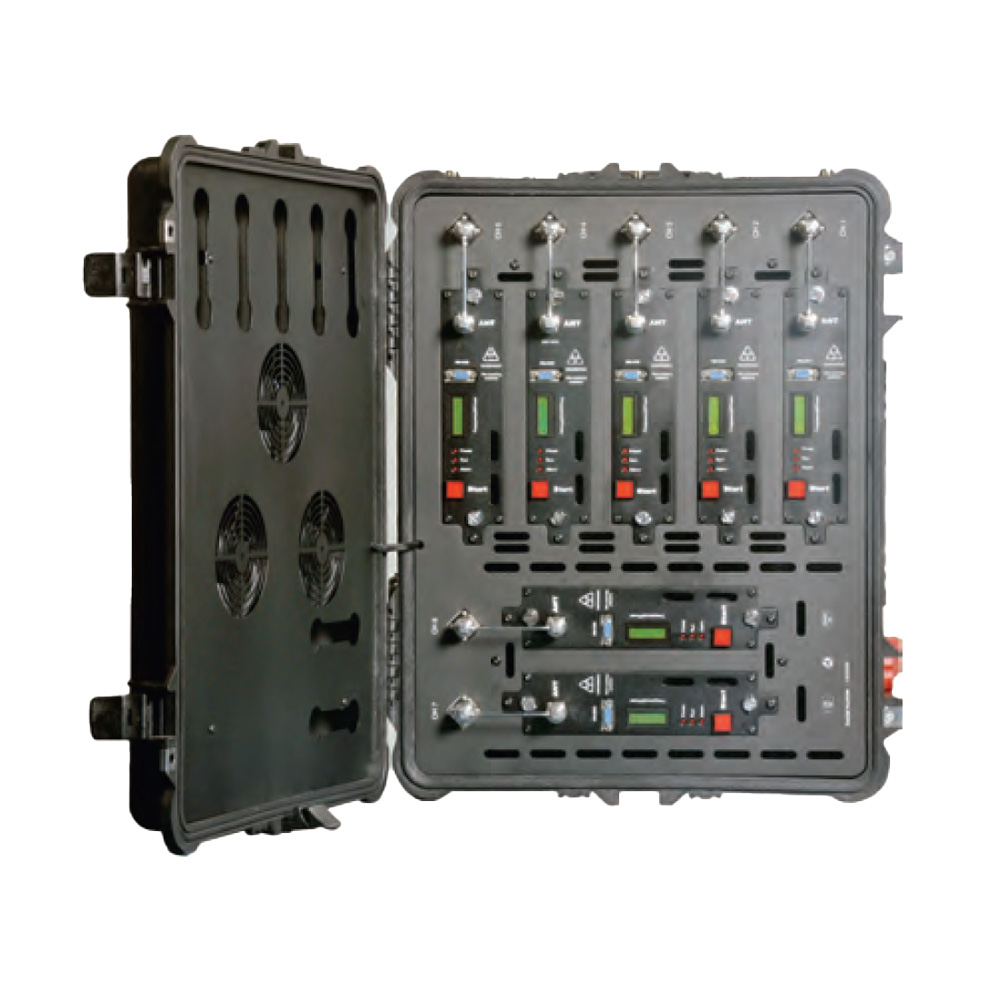

- Modular design with independent replaceable units for maintenance and upgrades.
- Supports 6 / 7 / 8 modules covering more than 20 frequency bands.
- Each module features an LCD display showing active frequency and power status.
- Panel-based wired control allowing operators to activate or deactivate individual modules.

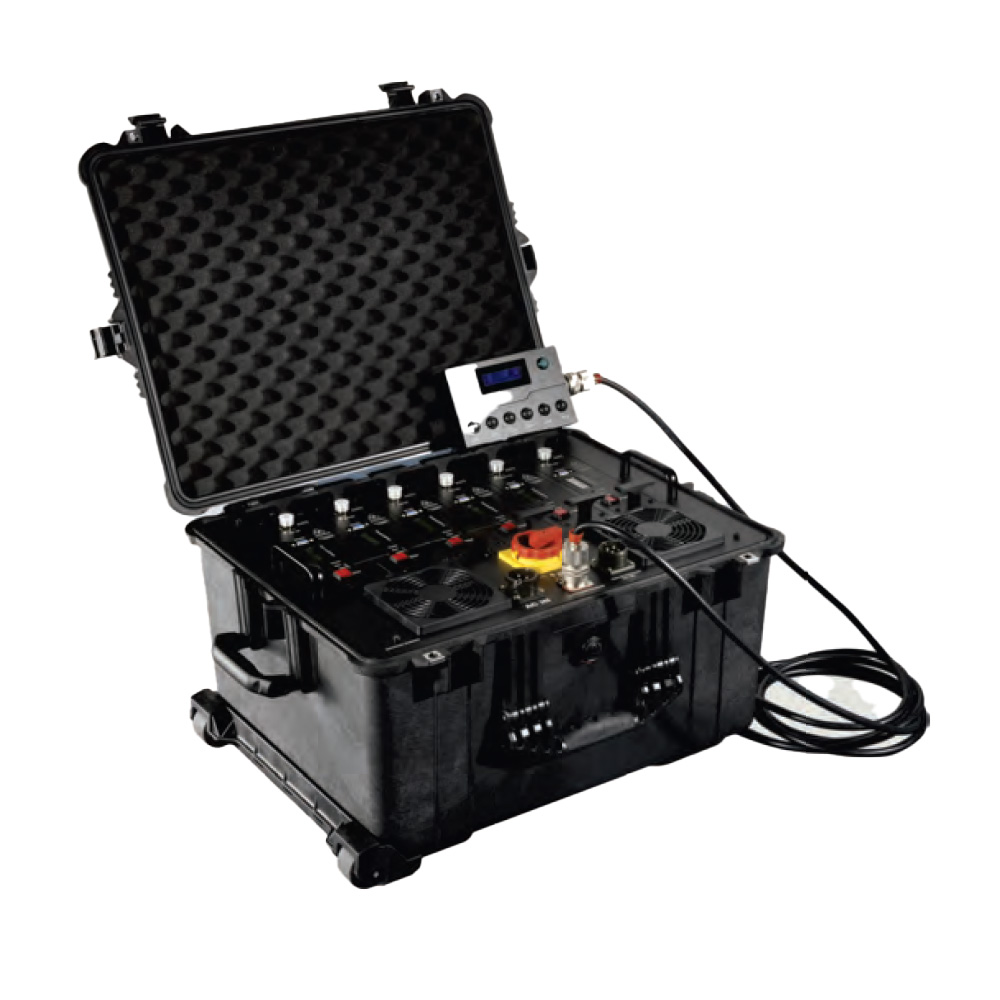

- Portable trolley-case design for rapid field deployment.
- Supports AC charging or DC power input.
- Compatible with external battery packs for on-site battery replacement.
Technical Specifications
| Model | WK-VIP JAM6 | WK-VIP JAM7 | WK-VIP JAM8 |
|---|---|---|---|
| Frequency Range | 20–6000 MHz | ||
| Total Power | Up to 600 W | Up to 400 W | Up to 400 W |
| Number of Modules | 6 | 7 | 8 |
| Number of Bands | 20 | ||
| Cooling System | Intelligent cooling system | ||
| Protection System | SWR, over-voltage, and over-current protection | ||
| Jamming Source | DDS digital synthesis; adjustable frequency and power output | ||
| Antenna Type | High-gain omnidirectional antennas | ||
| Antenna Quantity | 6 | 7 | 8 |
| Battery | 50 AH / 24–28 VDC | ||
| Main Unit Dimensions | 630 × 492 × 352 mm | 630 × 500 × 302 mm | 630 × 492 × 352 mm |
| Main Unit Weight | Approx. 39 kg | Approx. 37.58 kg | Approx. 42 kg |
| Operating Temperature | –35°C to +80°C | ||
| Operating Humidity | Up to 80% | ||
