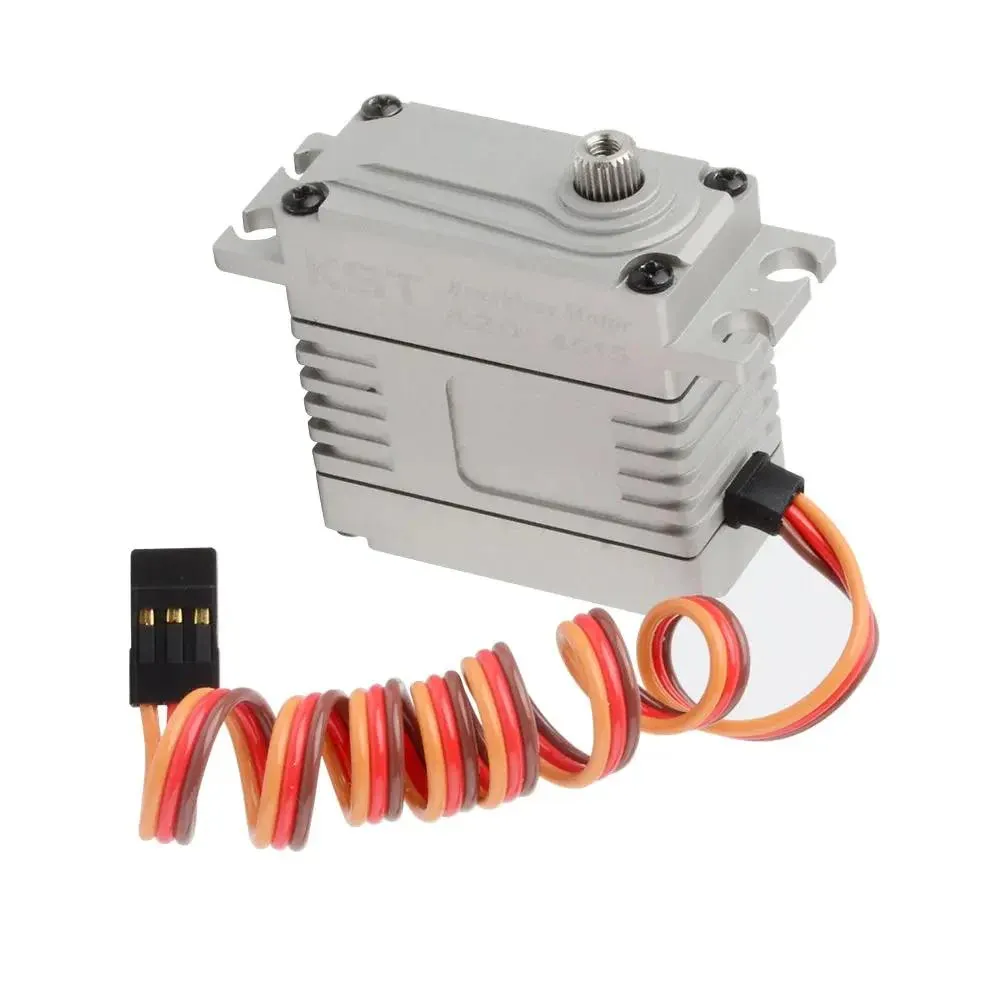

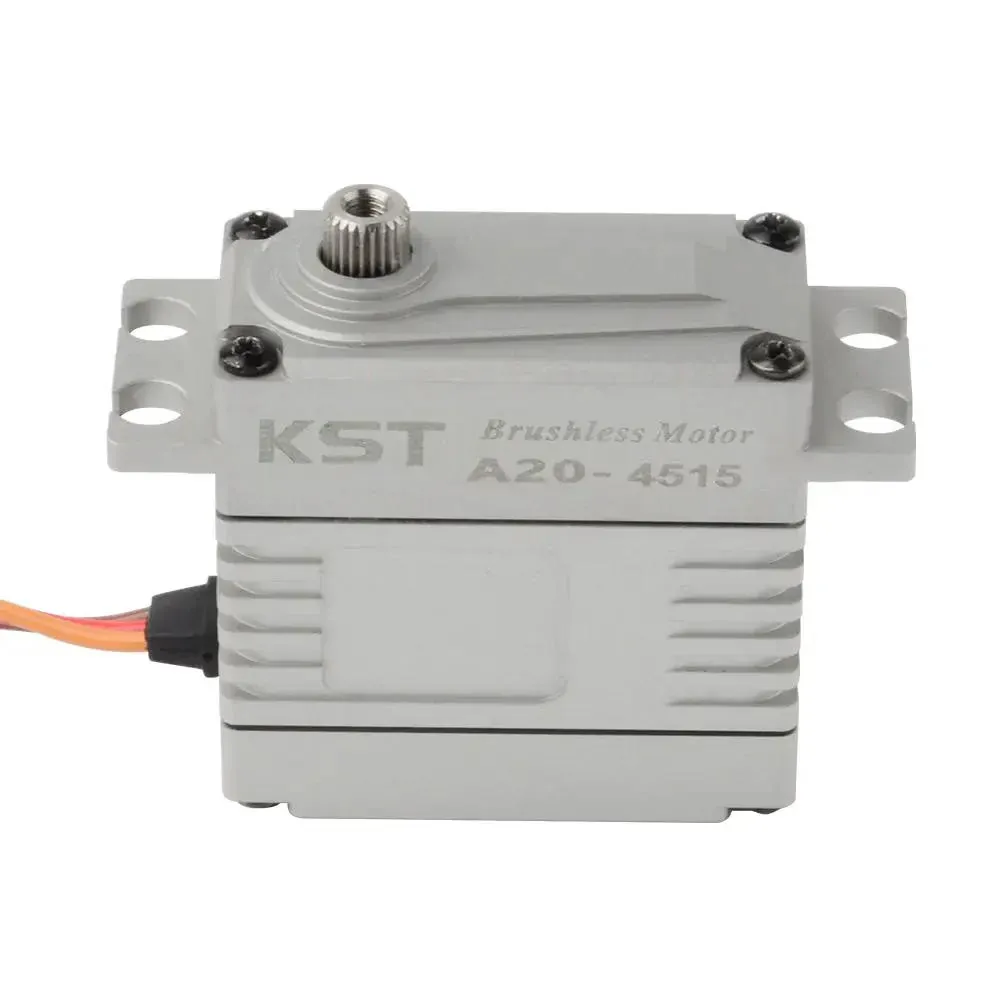

KST A20-4515 Servo

The A20-4515 V8 (pre-programmed without soft start) brushless HV servo is very well suited for large “big scale” surface models of all kinds. The motor of the fast and extremely powerful KST servo can be loaded with up to Kgf.cm. The high-quality, all-aluminum housing can be mounted precisely and ensures good heat dissipation.

Features

• Brushless DC motor
• Hardened Steel Gears
• Extreme torque and Excellent speed
• CNC aluminium case

Specification

• Item: A20-4515 Brushless HV Servo
• Operation Voltage(rated): DC7.4V

• Operation Voltage Range: DC6.0V-8.4V
• Torque: 36Kgf.cm@6.0V, 45Kgf.cm@7.4V, 50Kgf.cm@8.4V

• Speed: 0.19sec/60°@6.0V, 0.15sec/60°@7.4V, 0.13sec/60°@8.4V

• Operating Temperature Range: -20℃ to +65℃
• Case Material: Aluminum Alloy
• Motor Type: Brushless
• Gear Set Material: Phosphor Bronze & Hardened Steel
• Shielded Connecting Cable: 22AWG

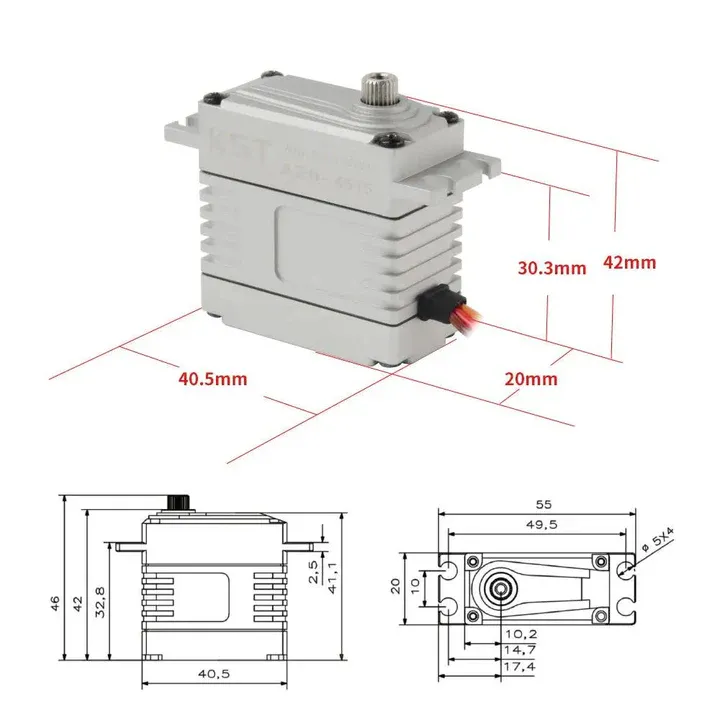

• Case Dimensions: 40.5mm*20mm*42mm
• Weight: 80g

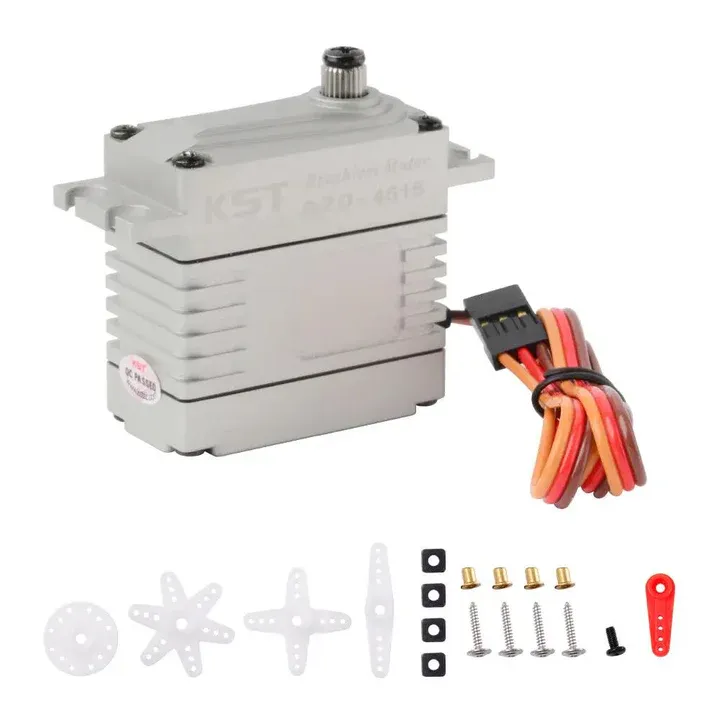

Package Including

• 1 * A20-4515 Servo
• 1 * Pack of Accessories

A20-4515 Technical Specification.
