KST Servo BLS series

Add to Wishlist
Request a Quote

Contact us for pricing, availability, bulk orders and OEM/ODM requirements.

, Brand:

KST Servo BLS series

BLS159

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V
Stalling Torque 15Kgf.cm@7.4V
Rated Torque 4Kgf.cm@7.4V
Stalling Current 3.85A
Rated Current 0.65A
No-load Speed 0.11sec/60deg@7.4V
Rated Speed 0.15sec/60deg@7.4V
Working Frequency 1520us/333Hz
Default Travel Angle +/-50deg = 100deg total
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Yes
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2 BB
Case Dimensions 40*20*26.5mm
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 900us-2100us Pulse Lengths for Position 1000us/1500us/2000us -50deg/ 0deg/+50deg
Pulse Lengths 900us-2100us

BLS259

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V-8.4V
Stalling Torque 12Kgf.cm@6.0V 17Kgf.cm@7.4V 20Kgf.cm@8.4V
No-load Speed 0.12sec/60deg@6.0V 0.11sec/60deg@7.4V 0.10sec/60deg@8.4V
Working Frequency 1520us/333Hz
Default Travel Angle +/-50deg = 100deg
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Yes
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Case Dimensions 40.5*21*38.6mm+/-0.2mm
Weight 70g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 900us-2100us Pulse Lengths for Position 1000us/1500us/2000us -50deg/ 0deg/+50deg
Pulse Lengths 900us-2100us

BLS359

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V-8.4V
Stalling Torque 20Kgf.cm@6.0V 25Kgf.cm@7.4V 30Kgf.cm@8.4V
No-load Speed 0.14sec/ 60deg @6.0V 0.12sec/ 60deg @7.4V 0.10sec/ 60deg @8.4V
Working Frequency 1520us/333Hz
Default Travel Angle +/-50deg = 100deg
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Yes
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Case Dimensions 40.5*21*38.6mm+/-0.2mm
Weight 70g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 900us-2100us Pulse Lengths for Position 1000us/1500us/2000us -50deg / 0deg /+50deg
Pulse Lengths 900us-2100us

BLS505

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V-8.4V
Stalling Torque 5.0Kgf.cm@6.0V 6.2Kgf.cm@7.4V 7.0Kgf.cm@8.4V
No-load Speed 0.09sec/60deg @6.0V 0.08sec/60deg @7.4V 0.07sec/60deg @8.4V
Working Frequency 1520us/333Hz
Default Travel Angle +/-50deg = 100deg
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Yes
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Case Dimensions 35.5*15*32.5mm+/-0.2mm
Weight 40g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 900us-2100us Pulse Lengths for Position 1000us/1500us/2000us -50deg / 0deg /+50deg
Pulse Lengths 900us-2100us

BLS505X

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V-8.4V
Stalling Torque 3.8Kgf.cm@6.0V / 4.8Kgf.cm@7.4V / 5.5Kgf.cm@8.4V
No-load Speed 0.05sec/60deg@6.0V / 0.04sec/60deg@7.4V / 0.03sec/60deg@8.4V
Working Frequency 760us/560Hz
Default Travel Angle Not specified
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Yes
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Case Dimensions 35.5*15*32.5mm+/-0.2mm
Weight 40g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 450us-4050us Working Frequency 760us/560Hz
Pulse Lengths 450us-4050us

BLS661WP

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V-8.4V
Stalling Torque 12.0Kgf.cm@6.0V 16.0Kgf.cm@7.4V 19.0Kgf.cm@8.4V
No-load Speed 0.12sec/ 60deg @6.0V 0.11sec/ 60deg @7.4V 0.10sec/ 60deg @8.4V
Working Frequency 1520us/333Hz
Default Travel Angle +/-50deg = 100deg
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Yes
Case Material PA66
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel Waterproof level IP67
Position Sensor Potentiometer
Case Dimensions 40.5*21*40.5mm+/-0.2mm
Weight 61g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 900us-2100us Pulse Lengths for Position 1000us/1500us/2000us -50deg / 0deg /+50deg
Pulse Lengths 900us-2100us

BLS662WP

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V-8.4V
Stalling Torque 15.0Kgf.cm@6.0V 20.0Kgf.cm@7.4V 25.0Kgf.cm@8.4V
No-load Speed 0.15sec/60deg@6.0V 0.13sec/60deg@7.4V 0.11sec/60deg@8.4V
Working Frequency 1520us/333Hz
Default Travel Angle +/-50deg = 100deg
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Yes
Case Material PA66
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel Waterproof level IP67
Position Sensor Potentiometer
Case Dimensions 40.5*21*40.5mm+/-0.2mm
Weight 61g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 900us-2100us Pulse Lengths for Position 1000us/1500us/2000us -50deg/ 0deg/+50deg
Pulse Lengths 900us-2100us

BLS805X

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V-8.4V
Stalling Torque 5.5Kgf.cm@6.0V / 6.5Kgf.cm@7.4V / 7.5Kgf.cm@8.4V
No-load Speed 0.048sec/60deg@6.0V / 0.042sec/60deg@7.4V / 0.039sec/60deg@8.4V
Working Frequency 760us/560Hz
Default Travel Angle Not specified
Temperature Range -20C to +65C
Soft Start Not specified
Programmable Not specified
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2 BB
Case Dimensions 40.5*20*38mm+/-0.2mm
Weight 70g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 450us-1050us Working Frequency 760us/560Hz
Pulse Lengths 450us-1050us

BLS815

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V-8.4V
Stalling Torque 14Kgf.cm@6.0V 17Kgf.cm@7.4V 20Kgf.cm@8.4V
No-load Speed 0.09sec/ 60deg @6.0V 0.08sec/ 60deg @7.4V 0.07sec/ 60deg @8.4V
Working Frequency 1520us/333Hz
Default Travel Angle +/-50deg = 100deg
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Yes
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2 BB
Case Dimensions 40.5*20*38mm+/-0.2mm
Weight 70g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 900us-2100us Pulse Lengths for Position 1000us/1500us/2000us -50deg / 0deg /+50deg
Pulse Lengths 900us-2100us

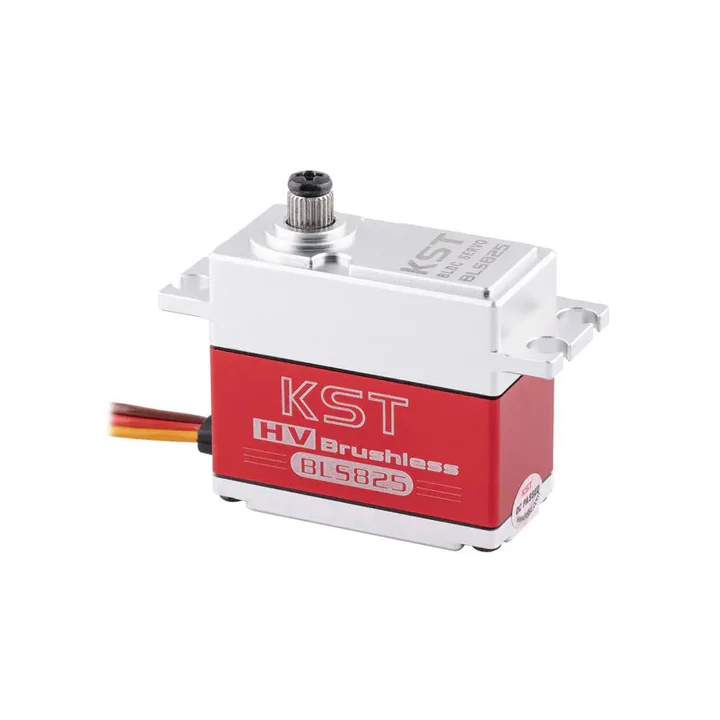

BLS825

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V-8.4V
Stalling Torque 25Kgf.cm@6.0V 30Kgf.cm@7.4V 35Kgf.cm@8.4V
No-load Speed 0.15sec/ 60deg @6.0V 0.13sec/ 60deg @7.4V 0.11sec/ 60deg @8.4V
Working Frequency 1520us/333Hz
Default Travel Angle +/-60deg = 120deg
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Yes
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2 BB
Case Dimensions 40.5*20*38mm+/-0.2mm
Weight 70g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 900us-2100us Pulse Lengths for Position 1000us/1500us/2000us -50deg / 0deg /+50deg
Pulse Lengths 900us-2100us

BLS835

Output Shaft 6mm_25T Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V-8.4V
Stalling Torque 30.0 Kgf.cm@6.0V 38.0 Kgf.cm@7.4V 45.0 Kgf.cm@8.4V
No-load Speed 0.16sec/ 60deg @6.0V 0.14sec/ 60deg @7.4V 0.13sec/ 60deg @8.4V
Working Frequency 1520us/333Hz
Default Travel Angle +/-50deg = 100deg
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Yes
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2 BB
Case Dimensions 40.5*20*38mm+/-0.2mm
Weight 70g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 900us-2100us Pulse Lengths for Position 1000us/1500us/2000us -50deg / 0deg /+50deg
Pulse Lengths 900us-2100us

BLS905X

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V-8.4V
Stalling Torque 6.0Kgf.cm@6.0V / 7.0Kgf.cm@7.4V / 8.0Kgf.cm@8.4V
No-load Speed 0.045sec/60deg@6.0V / 0.040sec/60deg@7.4V / 0.035sec/60deg@8.4V
Working Frequency 760us/560Hz
Default Travel Angle Not specified
Temperature Range -20C to +65C
Soft Start Not specified
Programmable Not specified
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2 BB
Case Dimensions 40.5*20*38mm+/-0.2mm
Weight 70g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 450us-1050us Working Frequency 760us/560Hz
Pulse Lengths 450us-1050us

BLS915

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC7.4V
Voltage Range DC6.0V-8.4V
Stalling Torque 18Kgf.cm@6.0V 22Kgf.cm @7.4V 25Kgf.cm @8.4V
No-load Speed 0.09sec/ 60deg @6.0V 0.08sec/ 60deg @7.4V 0.07sec/ 60deg @8.4V
Working Frequency 1520us/333Hz
Default Travel Angle +/-50deg = 100deg
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Yes
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2 BB
Case Dimensions 40.5*20*38mm+/-0.2mm
Weight 70g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V; Low: min.0.0V, max.1.5V Pulse Lengths 900us-2100us Pulse Lengths for Position 1000us/1500us/2000us -50deg / 0deg /+50deg
Pulse Lengths 900us-2100us
A20-4515 Technical Specification. BLS505X Technical Specification BLS505 Technical Specification BLS359 Technical Specification BLS259 Technical Specification BLS661WP Technical Specification BLS915 V8.0 Technical Specification BLS905X Technical Specification BLS835 Technical Specification BLS825 V8.0 Technical Specification BLS815 V8.0 Technical Specification BLS805X Technical Specification BLS662WP Technical Specification BLS159 V8.0 Technical Specification
