4720
Request a Quote
Contact us for pricing, availability, bulk orders and OEM/ODM requirements.
4720
4720

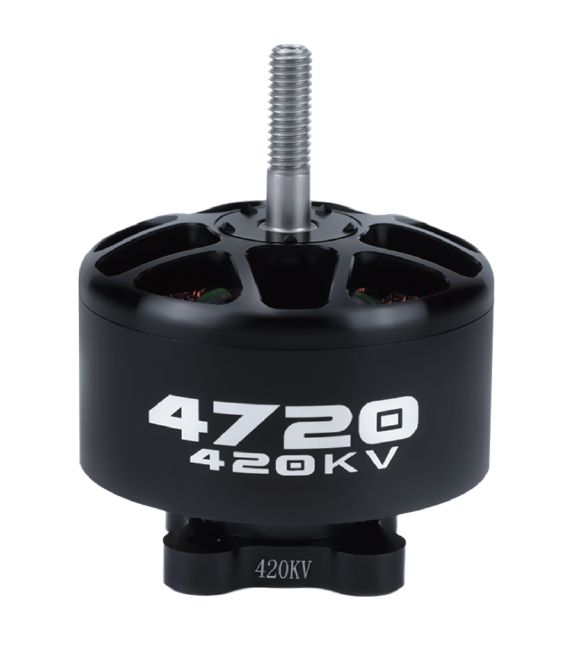

The Axisflying 4720 is an FPV motor option for drone builds that need matched thrust, voltage, and mounting compatibility. Use the specification table below to compare it with your frame, propeller, and power-system requirements.
Key Features
- Motor-focused specification layout for thrust, KV, voltage, and mounting review
- Useful for matching frame size, propeller size, and battery voltage
- Axisflying product line
- Organized specification table for easier comparison
Specifications
| KV Rating | 420 |
|---|---|
| Silicone Wire | 13AWG |
| Operating Voltage | 6-8S |
| Motor Weight (with Wires) | 336.0 g |
| Max Power | 3037.38 W |
| Max Current | 99.7 A |
| Stator Configuration | 12N14P |
| Internal Resistance | 30mΩ |
| Motor Size | ?54.7*69.8 mm |
| Shaft Diameter | 6 mm No-load current (10V) : 1.90 A |
| Max Thrust | 7232 g Unit: mm |
