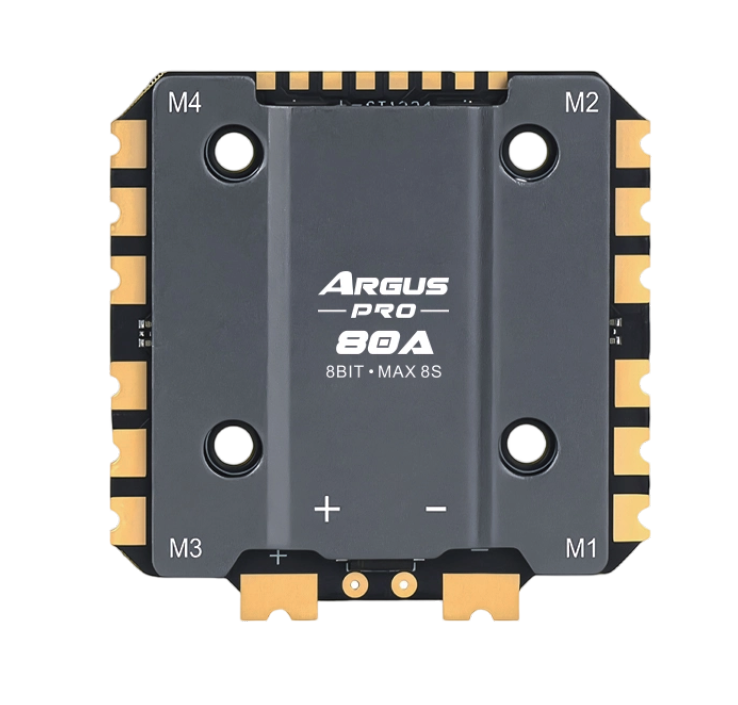

Argus PRO 4in1 80A/100A ESC
Request a Quote
Contact us for pricing, availability, bulk orders and OEM/ODM requirements.
Argus PRO 4in1 80A/100A ESC
Argus PRO 4in1 80A/100A ESC
The Axisflying Argus PRO 4in1 80A/100A ESC is an electronic speed controller for FPV and UAV power systems. The table below summarizes the key configuration details available for import.
Key Features
- ESC-focused specification layout for current rating and power-system planning
- Useful for matching motors, battery voltage, and stack architecture
- Axisflying product line
- Organized specification table for easier comparison
Specifications
| Firmware Target | B-X-40-Bluejay / BLHeli32 Current scale: 200 |
|---|---|
| Input Voltage | 4-8S Lipo |
| Continuous Current | 80 A/100 A |
| Burst Current | 90 A/110 A Temperature protection: Supported |
| Telemetry | 32 Supported / 8 Not supported |
| BEC | Not supported |
| Size | 57*56*7 mm |
| Mounting Hole Spacing | 30.5*30.5 mm |
| Weight | 41±2 g |
| Recommended Setup | H743 Pro flight controller Argus ECO F405 flight controller Argus ECO F722 flight controller Argus PRO 4in1 80 A/100 A ESC |
