Argus mini 40A ESC
Argus mini 40A ESC

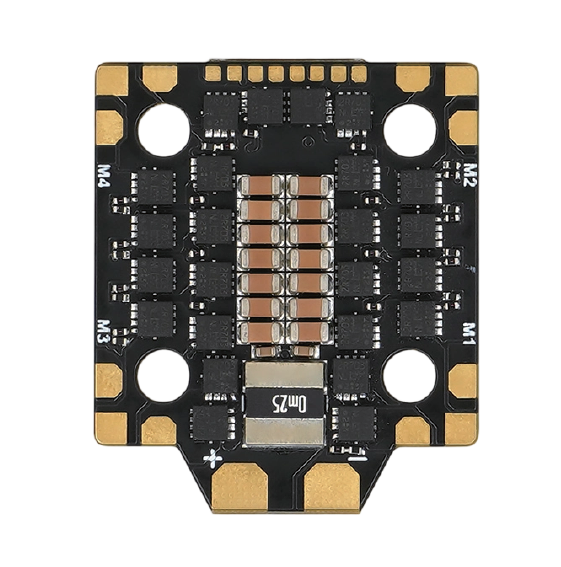

The Axisflying Argus mini 40A ESC is an electronic speed controller for FPV and UAV power systems. The table below summarizes the key configuration details available for import.
Key Features
- ESC-focused specification layout for current rating and power-system planning
- Useful for matching motors, battery voltage, and stack architecture
- Axisflying product line
- Organized specification table for easier comparison
Specifications
| Firmware Target | AT_F4_04_F421 |
|---|---|
| MCU | AT32F421G8U7 |
| Input Voltage | 4-6S Lipo |
| Continuous Current | 40 A |
| Burst Current | 50 A |
| BEC | Not supported |
| Telemetry | Supported PWM : 24-96kHz Current scale: Scale 200 Dimensions: 37*31.3*6.2 mm |
| Mounting Hole Spacing | 20*20 mm / M2 / M3 |
| Weight | 8.2 g Argus Mini F7 flight controller |
