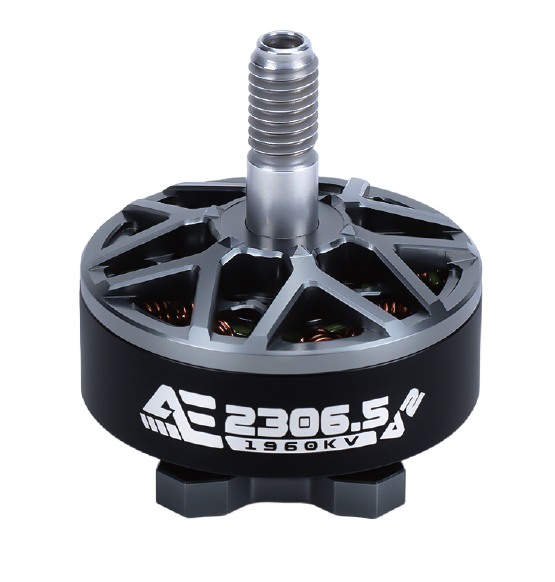

The Axisflying AE 2306.5 V2 is an FPV motor option for drone builds that need matched thrust, voltage, and mounting compatibility. Use the specification table below to compare it with your frame, propeller, and power-system requirements.
Key Features
- Motor-focused specification layout for thrust, KV, voltage, and mounting review
- Useful for matching frame size, propeller size, and battery voltage
- Axisflying product line
- Organized specification table for easier comparison
Specifications
| KV Rating | 1960 |
|---|---|
| Silicone Wire | 20# 150 mm |
| Operating Voltage | 6S |
| Motor Weight (with Wires) | 33.7 g |
| Max Power | 1041.79 W |
| Max Current | 44.54 A |
| Stator Configuration | 12N14P |
| Internal Resistance | 60.16mΩ |
| Motor Size | ?27.9*32.7 mm |
| Shaft Diameter | 4 mm No-load current (10V): 1.28 A |
| Max Thrust | 1760 g |
| KV Rating | 1860 |
| Silicone Wire | 20# 150 mm |
| Operating Voltage | 6S |
| Motor Weight (with Wires) | 33.45 g |
| Max Power | 859.58 W |
| Max Current | 36.86 A |
| Stator Configuration | 12N14P |
| Internal Resistance | 70.62mΩ |
| Motor Size | ?27.9*32.7 mm |
| Shaft Diameter | 4 mm No-load current (10V): 0.95 A |
| Max Thrust | 1670 g |
| Motor | NMB , , Frame type . |
