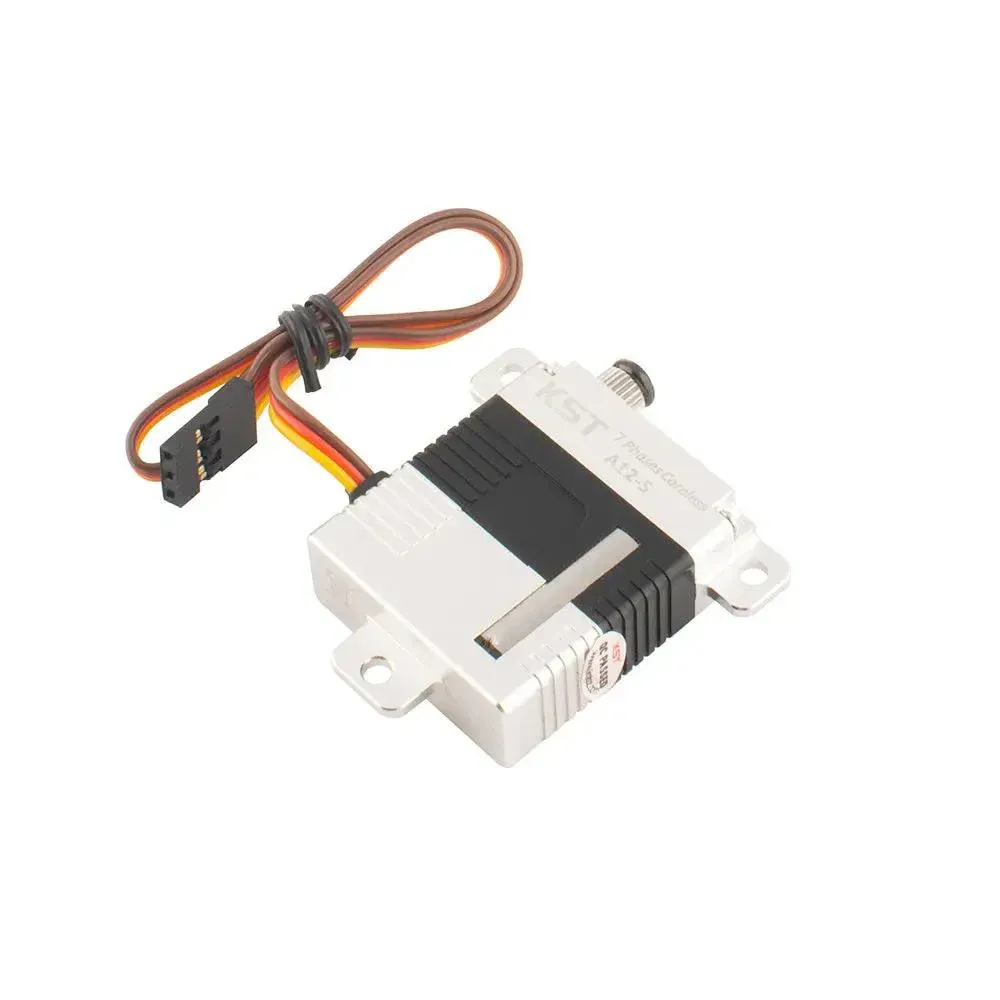

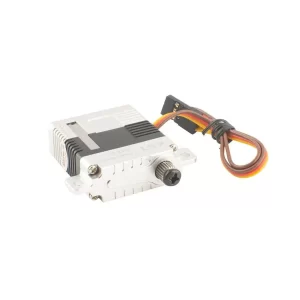

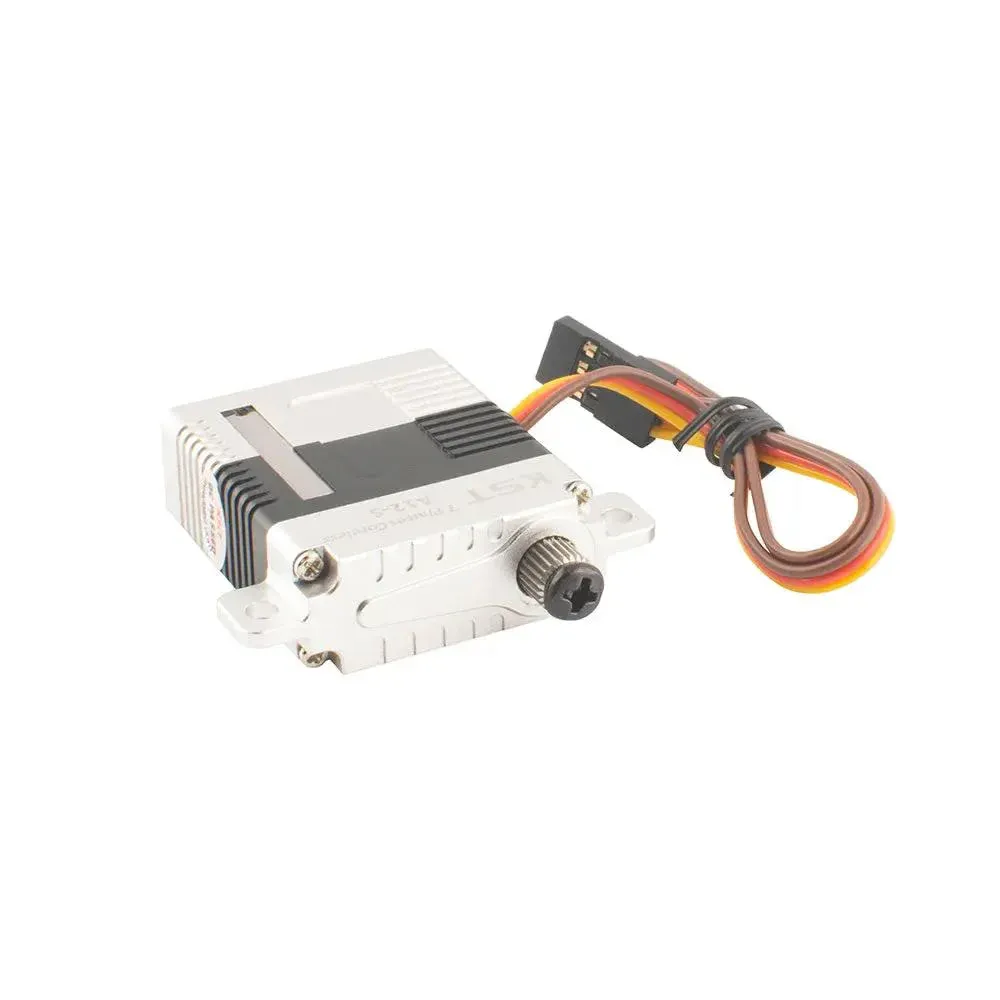

A12-S HV Mini Coreless Metal Gear Contactless Magnetic Sensors Servo
A12-S HV Mini Coreless Metal Gear Contactless Magnetic Sensors Servo
KST A12-S servo has the same length and width as the successful KST X10 servo. The thickness is not 10mm but 12mm, and the servo output is equipped with a 25T-6 (Futaba standard) like 15-20mm KST servos. The A12-T has a wear-free magnetic sensor!
A12-S with 7 phase coreless DC motor, specifically designed for large scale gliders / open class GPS gliders / large aerobatic gliders/ jet turbine.
Features
- 7 Phase Coreless DC Motor
- Contactless (Magnetic Sensor)
- Programmable
- Compact and Lightweight Design
- Excellent Torque and Speed
- Excellent Heat Dissipation
- Designed for High Performance RC Gliders
Specification
- Item: A12-S Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 1.10N.m@6.0V, 1.28N.m@7.4V, 1.35N.m@8.4V
- Torque: 11.21kg-cm@6.0V, 13.05kg-cm@7.4V, 13.76kg-cm@8.4V
- Speed: 0.11sec/60°@6.0V, 0.09sec/60°@7.4V, 0.08sec/60°@8.4V
- Working Frequency: 1520us/333Hz
- Default Travel Angle: ±60° = 120° Total
- Temperature Range: -10℃……+60℃
- Soft Start: Yes
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: 7 Phases Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Contactless (Magnetic sensor)
- Ball Bearing: 2BB
- Case Dimensions: 30mm*12mm*35.5mm±0.2mm
- Weight 32g±10%

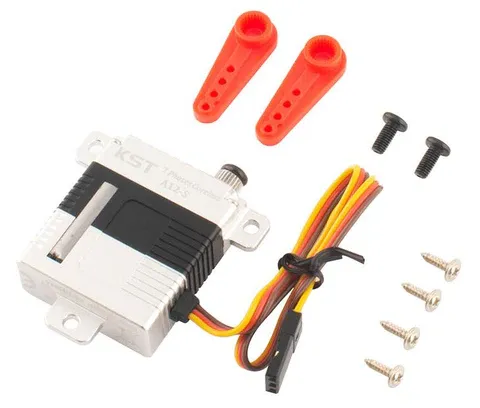

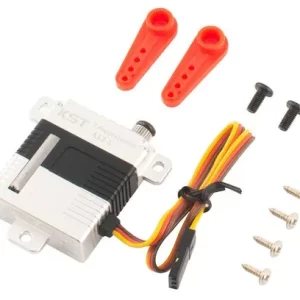

Package Including
- 1 * A12-S HV Metal Servo
- 2 * Plastic Servo Horn
- 4 * Mounting Screw
- 2 * Servo Horn Screw
