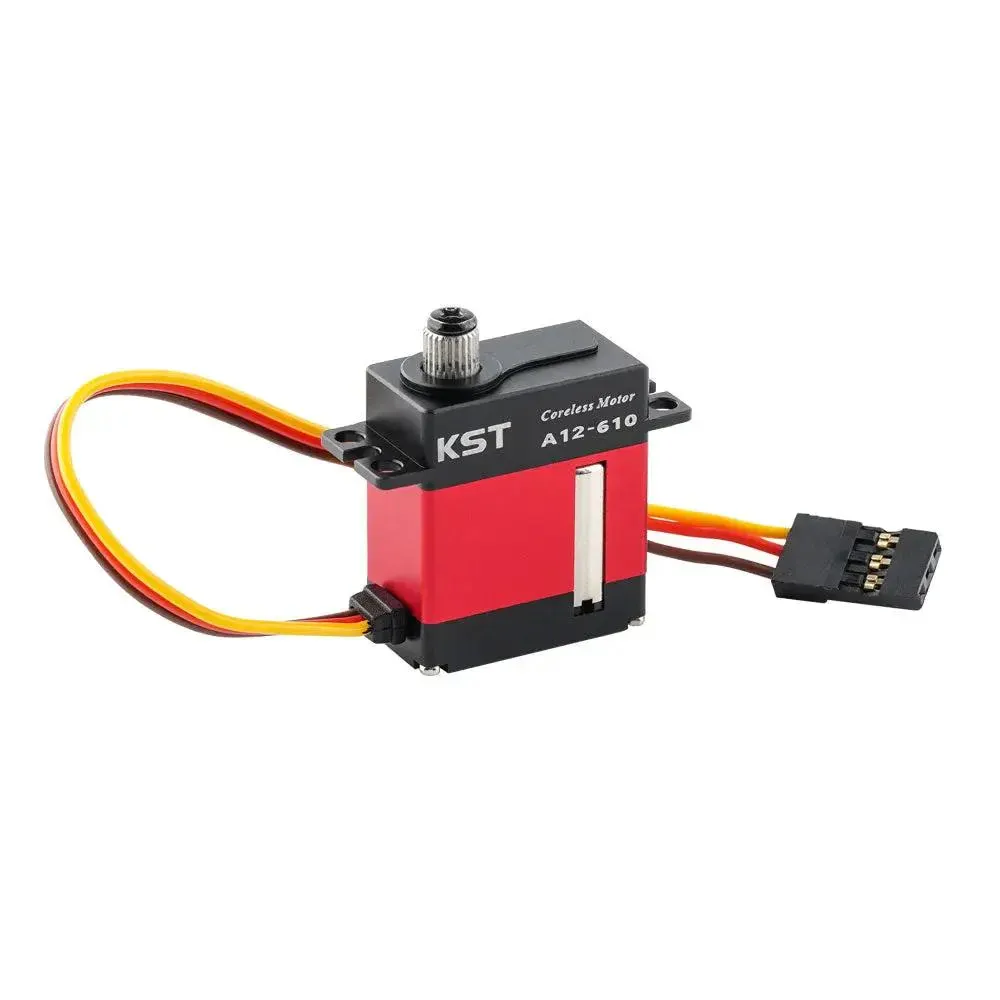

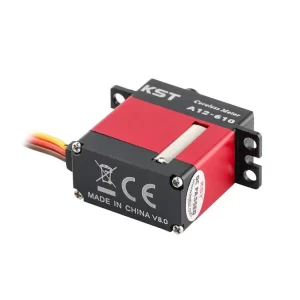

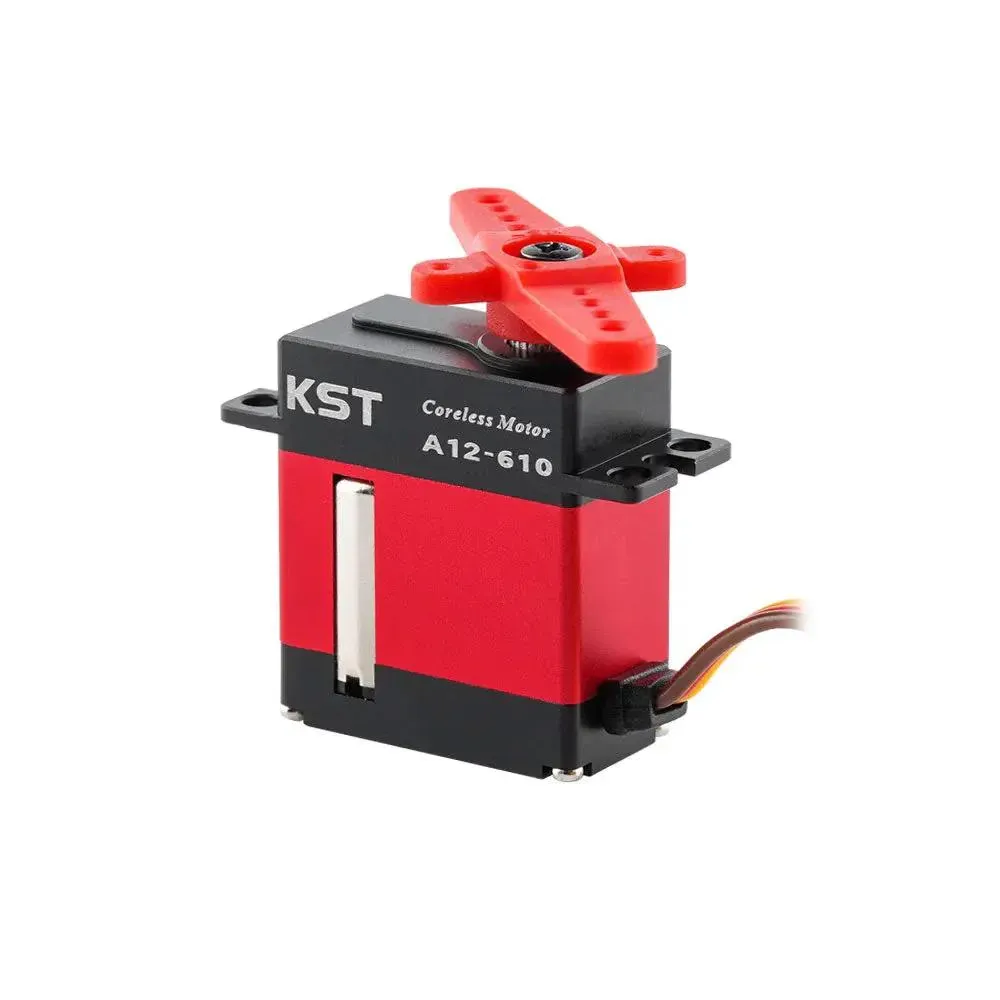

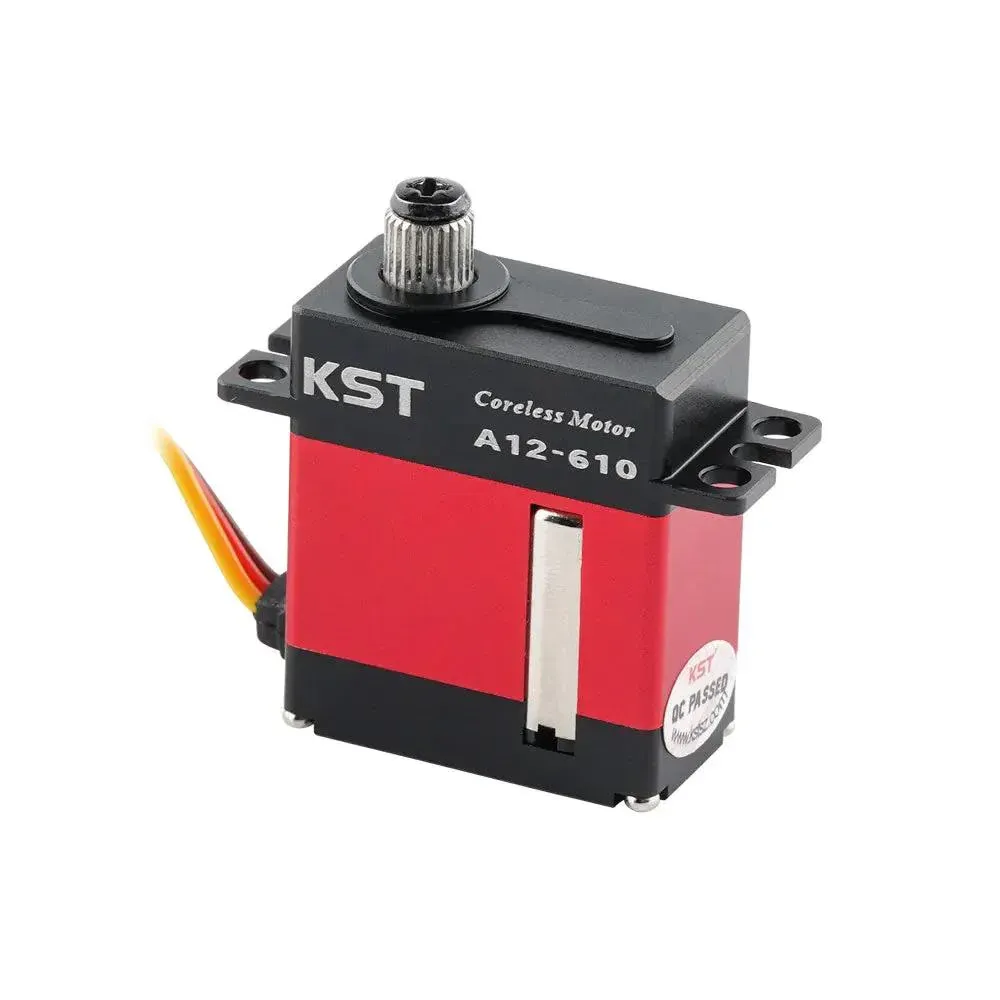

A12-610 V8.0 HV Mini Servo
A12-610 V8.0 HV Mini Servo
The A12-610 HV servo is well-suited for gliders and small fixed-wing models. It’s an upgrade of the X12-508 servos, with even more torque (8.0 Kgf.cm@7.4V) and a nice soft start function. The high-quality, all-aluminum housing can be mounted precisely and ensures good heat dissipation.
Features
- Hardened Steel Gears
- Extreme Torque and Excellent Speed
- CNC Aluminum Case
- Ideal for Glider Wing
Specification
- Item: A12-610 Mini Glider Wing Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC4.8V-8.4V
- Torque:
5.5Kgf.cm@4.8V
6.5Kgf.cm@6.0V
8.0Kgf.cm@7.4V
9.0Kgf.cm@8.4V
- Speed:
0.13sec/60°@4.8V
0.12sec60°@6.0V
0.11sec/60°@7.4V
0.10sec/60°@8.4V
- Working Frequency: 1520us/333Hz
- Default Travel Angle: ±50°= 100° Total
- Temperature Range: -10’C …..+65°C
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Case Dimensions: 23mm*12mm*27mm±0.2mm
- Weight: 20g±10%

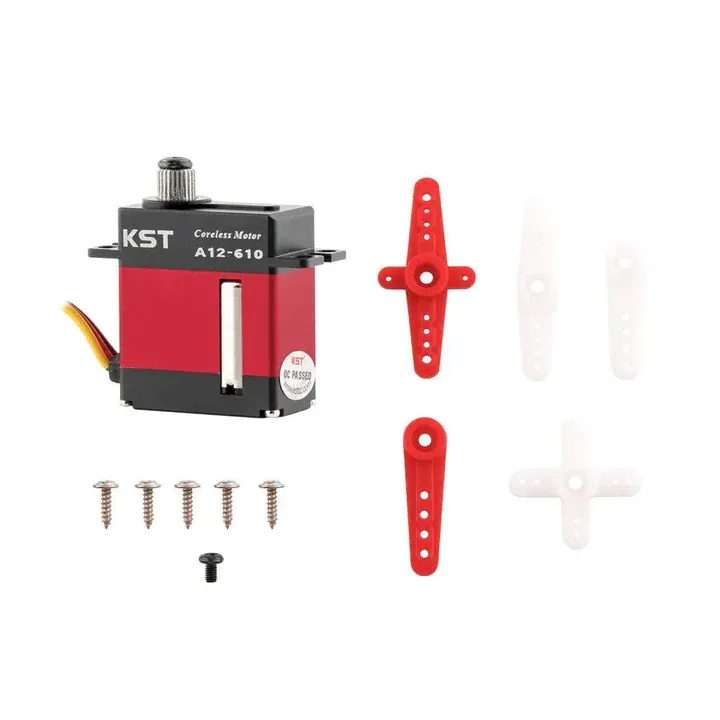

Package Including
- 1 * A12-610 V8.0 HV Mini Servo
- 5 * Plastic Servo Horn
- 1 * Servo Horn Screw
- 5 * Mounting Screw
