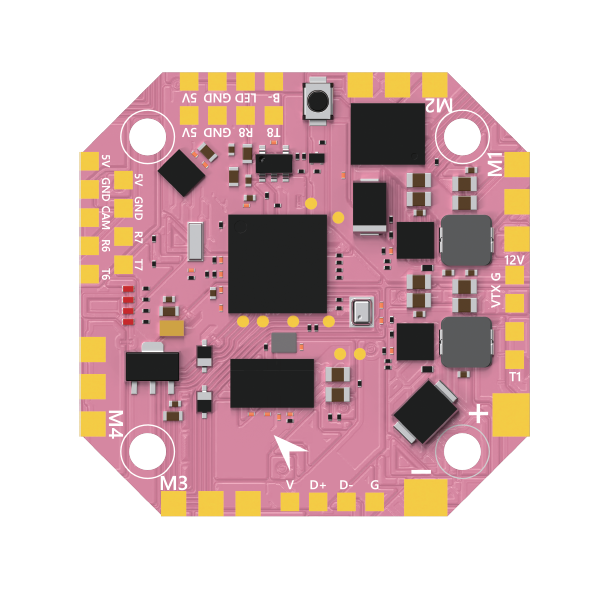

Axisflying H743 25A AIO
Axisflying H743 25A AIO
The Axisflying Axisflying H743 25A AIO is a flight-control component for FPV drone and UAV builds. Review the specification table for board, stack, and system-fit details.
Key Features
- Flight-controller specification layout for stack and board comparison
- Useful for planning FPV drone electronics and control-system integration
- Axisflying product line
- Organized specification table for easier comparison
Specifications
| Firmware Target | H743 AIO |
|---|---|
| MCU | STM32H743 |
| Gyro | ICM-42688 |
| Input Voltage | 2-4S Lipo |
| BEC | 5V/3 A |
| OSD | Supported UART count: 6 |
| Barometer | Supported |
| Blackbox | 32M Dimensions: 36*36*4 mm |
| Mounting Hole Spacing | 25.5*25.5 mm/M2(hole diameterp3 mm) |
| Weight | 10.6 g |
