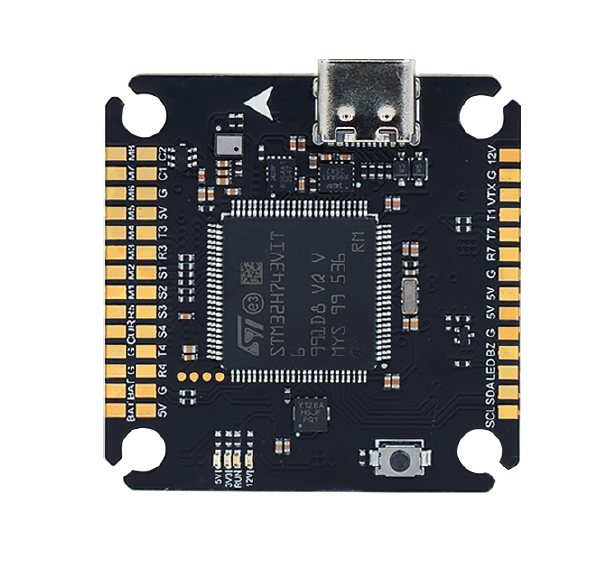

Axisflying H743 PRO Flight Controller
Request a Quote
Contact us for pricing, availability, bulk orders and OEM/ODM requirements.
Axisflying H743 PRO Flight Controller
Axisflying H743 PRO Flight Controller
The Axisflying Axisflying H743 PRO Flight Controller is a flight-control component for FPV drone and UAV builds. Review the specification table for board, stack, and system-fit details.
Key Features
- Flight-controller specification layout for stack and board comparison
- Useful for planning FPV drone electronics and control-system integration
- Axisflying product line
- Organized specification table for easier comparison
Specifications
| Firmware Target | F743 PRO |
|---|---|
| MCU | STM32 H743 |
| Gyro | ICM-42688 |
| Input Voltage | 4-8S |
| BEC | 12V/2 A,5V/2.5 A |
| OSD | Supported |
| UART | 7 |
| Barometer | DPS368 |
| Blackbox | Supported(16M Flash Memory) |
| Size | 38*38*8 mm |
| Mounting Hole Spacing | 30.5*30.5 mm / M3 |
| Weight | 9 g H743 PRO flight controller |
| Recommended Setup | Argus 60 A ESC Argus PRO 4in1 80 A/100 A ESC Argus PRO 6in1 80 A/100 A ESC Argus PRO 8in1 80 A/100 A ESC |
