Four Eyes Quad Goggles (DGT-18) (Gen2&3)
The DTG-18N is a panoramic night vision goggle with four intensifier tubes and a 120° field of view, offering unmatched situational awareness. Designed for demanding missions, it supports both helmet-mounted and handheld use with long battery life and rugged construction.
Request a Quote
Contact us for pricing, availability, bulk orders and OEM/ODM requirements.
Four Eyes Quad Goggles (DGT-18) (Gen2&3)
Model: DTG-18 / DTG-18N / DTG-18F

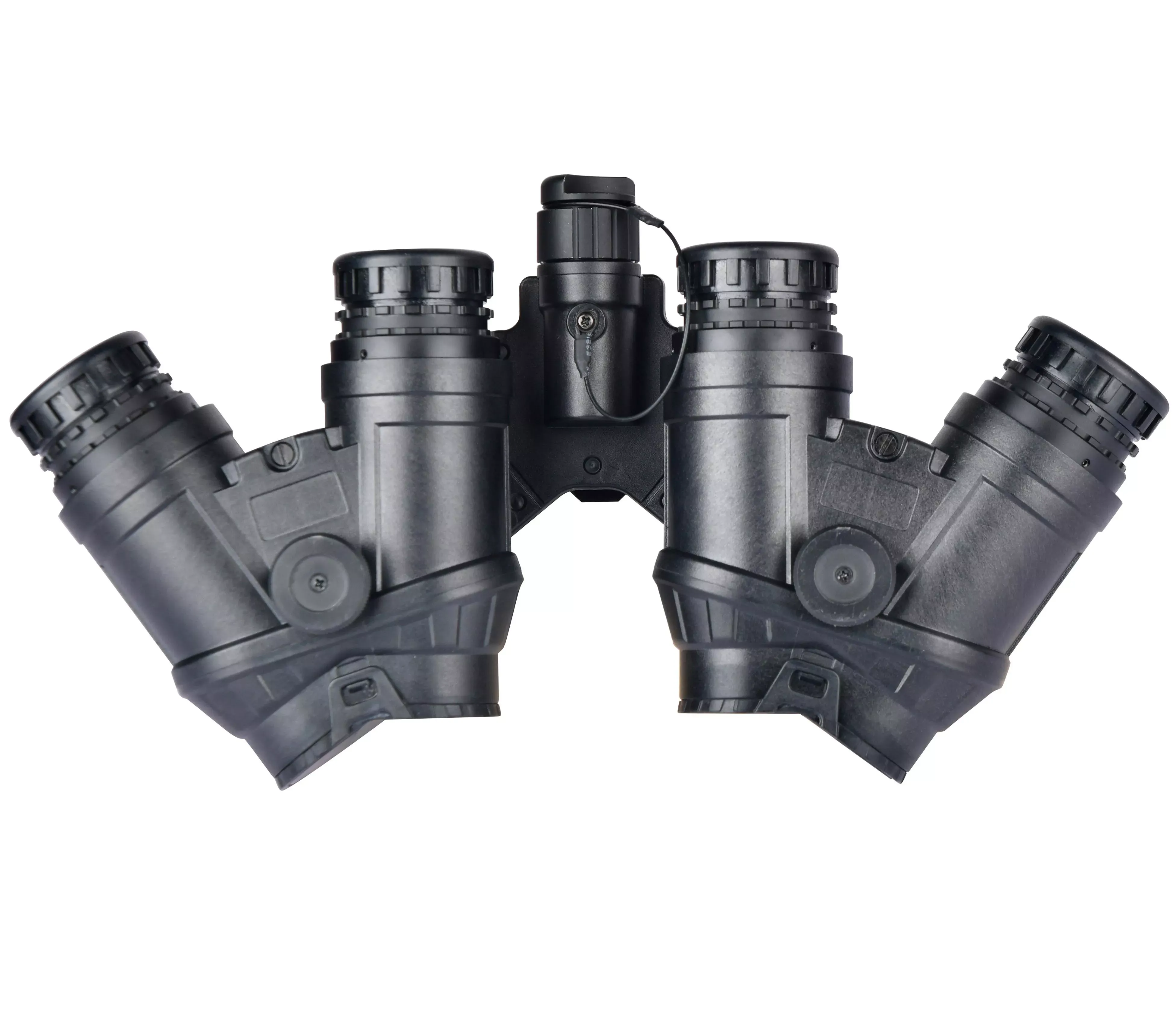

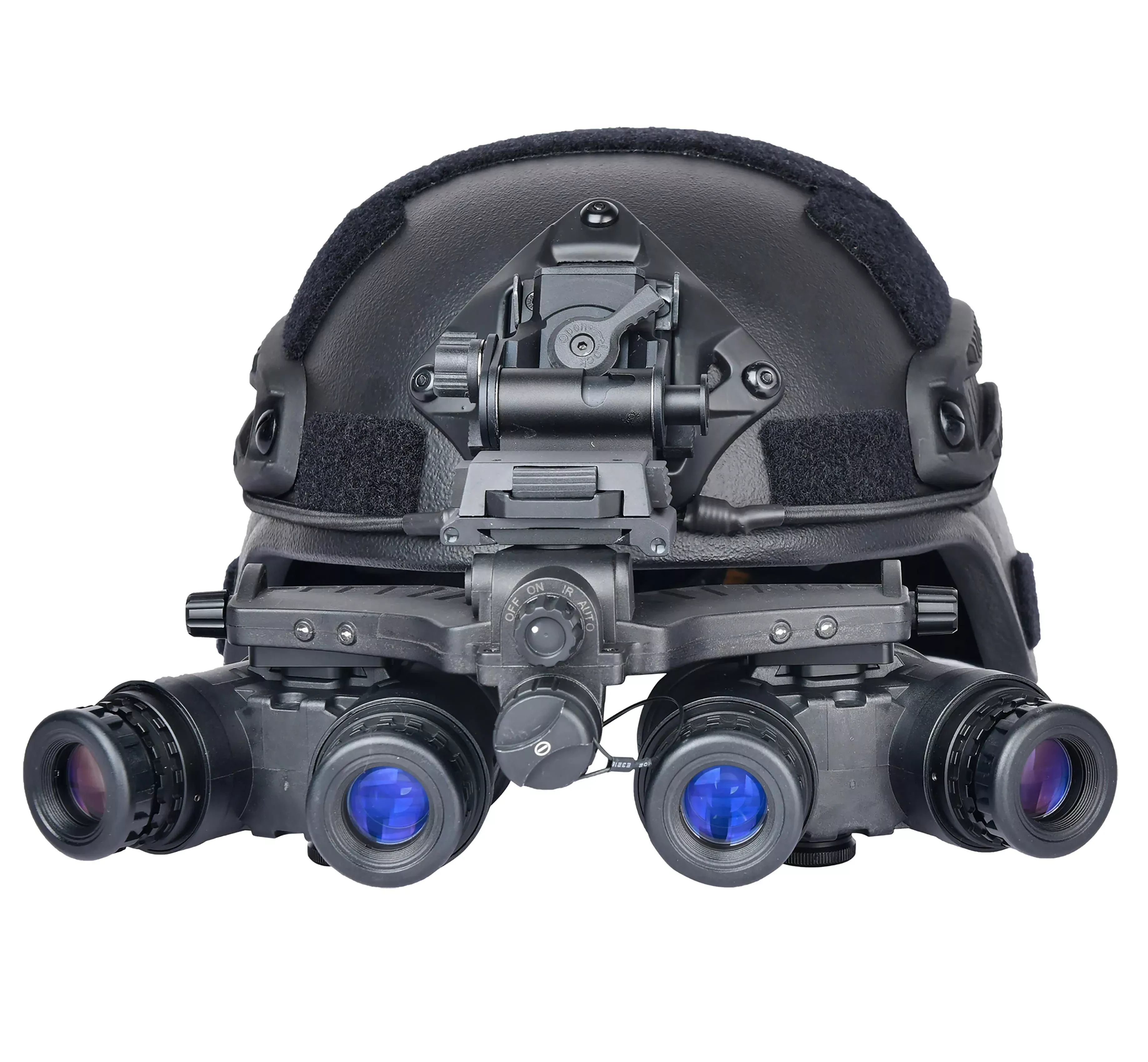

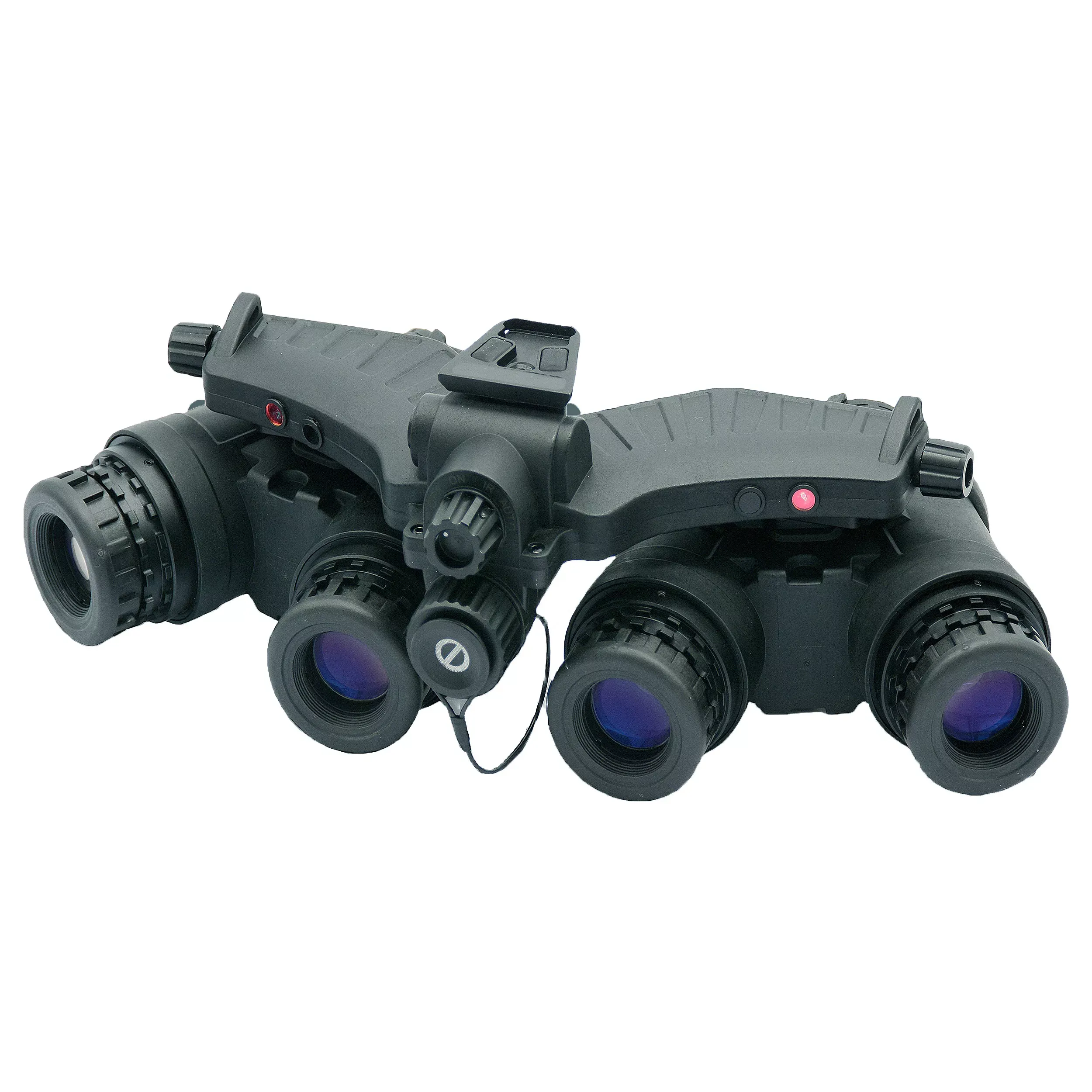

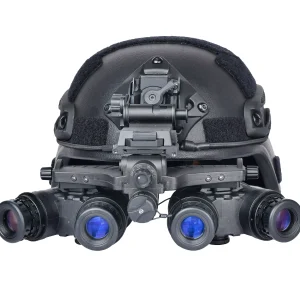

The DTG-18 Series is panoramic quad-tube head-mounted night vision solution, developed to provide the operator with significantly more situational awareness in dark environments. The series includes DTG-18, DTG-18N, and DTG-18F, all designed around a 120° panoramic field of view with four image intensifier tubes and four objective lenses arranged to expand peripheral vision while preserving forward depth perception.
The center two optical channels face forward like a traditional binocular night vision device, while the outer two channels are angled outward to enlarge the viewing area. The operator sees a merged panoramic image with minimal distortion, allowing faster observation, orientation, and response. This makes the DTG-18 Series especially suitable for tactical navigation, search tasks, and operations that require maximum battlefield awareness.
Within the series, DTG-18 is the standard panoramic model, DTG-18N offers a lighter housing and lower finished weight, and DTG-18F adds flip-up and side-flip shutoff capability for more flexible helmet-mounted operation. All three versions support Gen 2+ / Gen 3 tubes, automatic brightness control, bright light protection, and built-in IR illumination.
Technical Specifications
| Model | DTG-18 | DTG-18N | DTG-18F |
| Generation | Gen 2+ / Gen 3 (optional) | Gen 2+ / Gen 3 (optional) | Gen 2+ / Gen 3 (optional) |
| Magnification | 1X | 1X | 1X |
| Field of View | 120° x 50° +/- 2° | 120° x 50° +/- 2° | 120° x 50° +/- 2° |
| Diopter Range | +2.5 ~ -3.5 | +2.5 ~ -3.5 | +2.5 ~ -3.5 |
| Shutoff Mode | Flip-up shutoff | Flip-up shutoff | Flip-up shutoff / side-flip shutoff |
| Automatic Brightness Control | Yes | Yes | Yes |
| Bright Light Protection | Yes | Yes | Yes |
| Infrared Illuminator | Built-in (850nm, 20mW) | Built-in (850nm, 20mW) | Built-in (850nm, 20mW) |
| IR Indicator | Yes | Yes | Yes |
| Low Battery Indicator | Yes | Yes | Yes |
| Battery Type | Lithium battery (CR123A x1) / external battery pack (CR123A x4) | Lithium battery (CR123A x1) / external battery pack (CR123A x4 or AA x4) | Lithium battery (CR123A x1) / external battery pack (CR123A x4 or AA x4) |
| Optical Distortion | 1% Max | 1% Max | 1% Max |
| Eye Relief | 30mm | 30mm | 30mm |
| Exit Pupil | 8mm | 8mm | 8mm |
| Operating Temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
| Humidity Range | 5% – 95% | 5% – 95% | 5% – 95% |
| Waterproof Rating | IP65 / IP67 | IP65 / IP67 | IP65 / IP67 |
| Dimensions | 155 x 136 x 83 mm | 150 x 130 x 75 mm | 150 x 130 x 75 mm |
| Weight | 590g (housing) / 880g (finished) | 495g (housing) / 780g (finished) | 552g (housing) / 820g (finished) |
Model Highlights
DTG-18
Standard panoramic quad-tube configuration with the heaviest-duty structure in the series, suitable for users who prioritize the original full-size body and balanced panoramic observation performance.
DTG-18N
Lighter-weight panoramic version with reduced housing and finished weight, making it a more comfortable option for extended helmet-mounted use.
DTG-18F
Enhanced operational version featuring both flip-up and side-flip shutoff functions, ideal for users who want greater mounting flexibility and easier stow positioning on the helmet.
Related products
-
Night Vision Devices

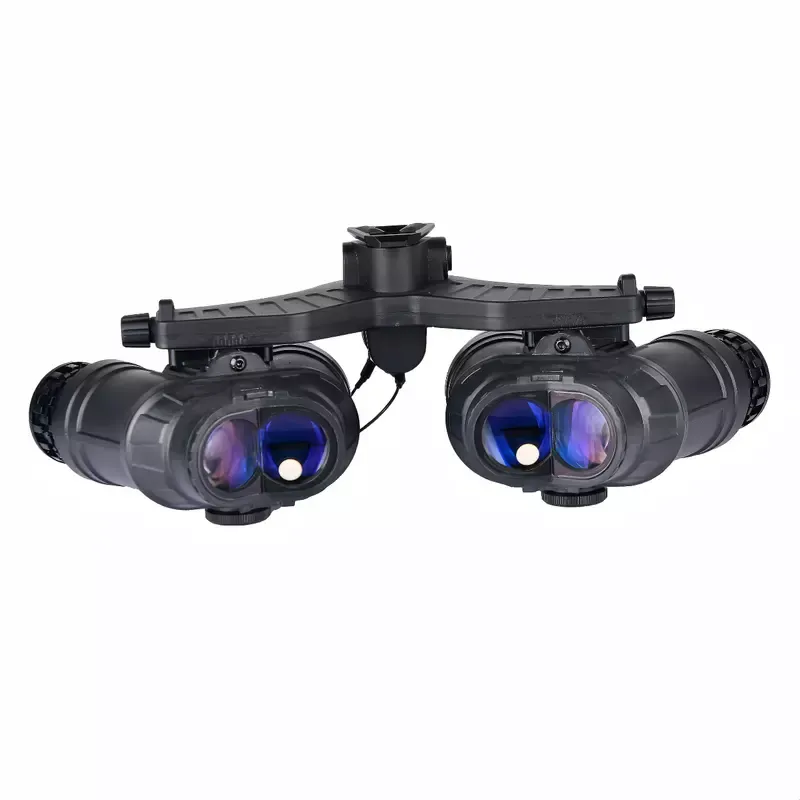

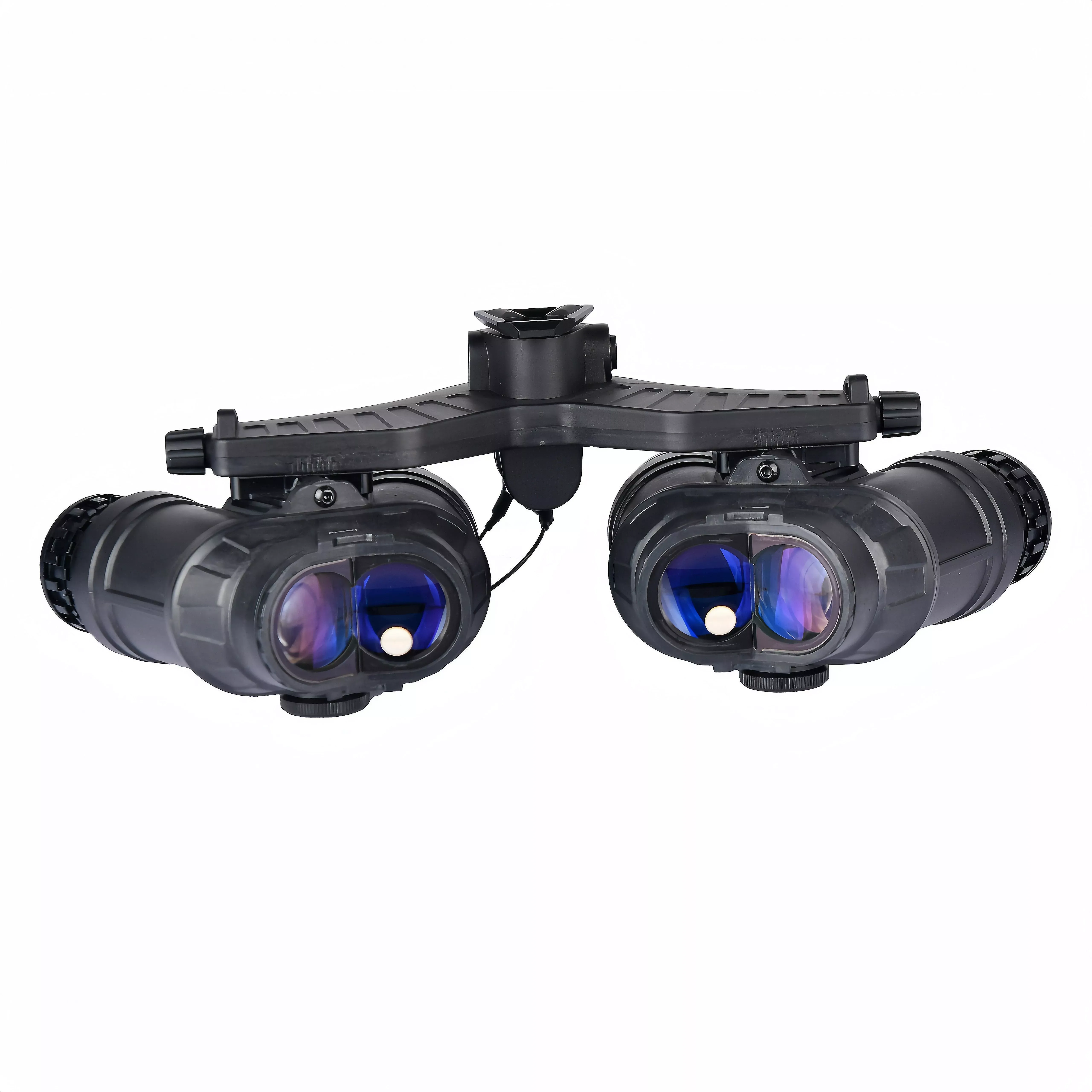

Head Mounted Night Vision Binocular (DTS-31N) (Gen2&3)
