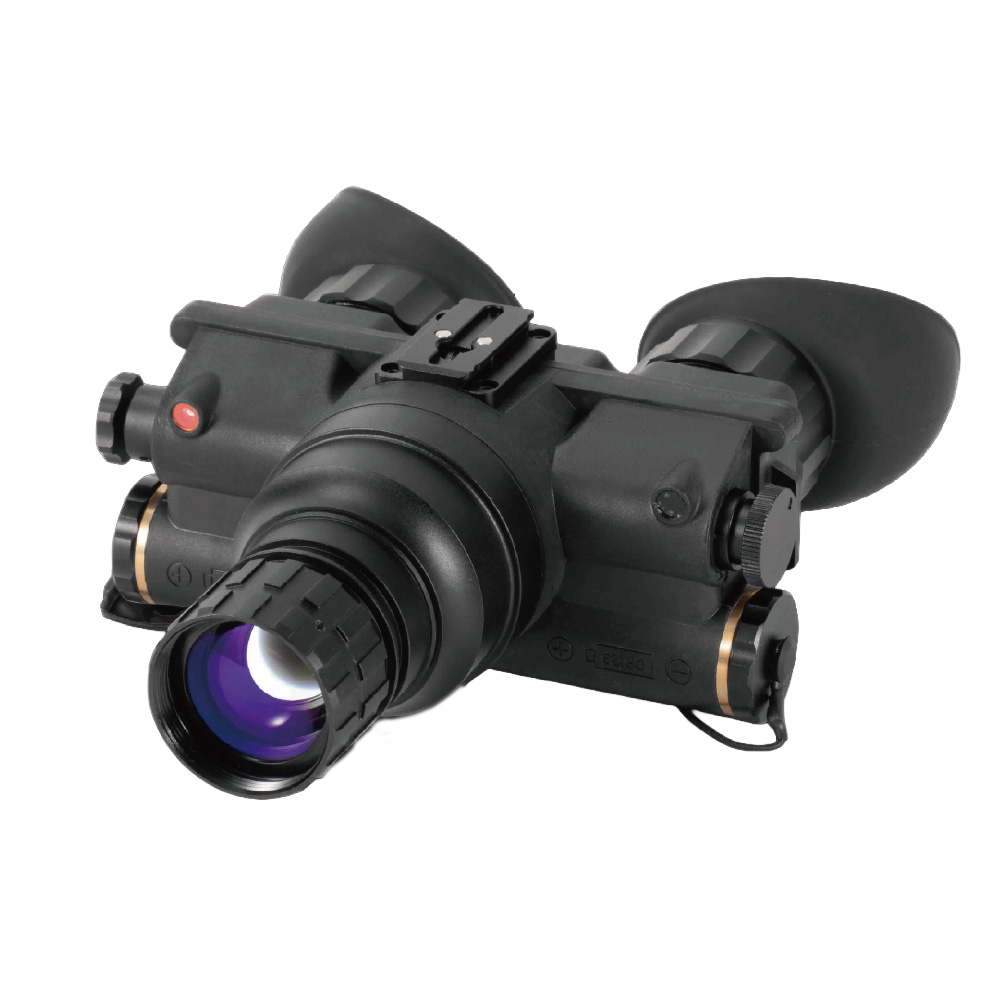

DT-NH7 (Gen2&3) binocular night vision device

Request a Quote

Contact us for pricing, availability, bulk orders and OEM/ODM requirements.

Brand:

DT-NH7 (Gen2&3) binocular night vision device

Model: DT-NH7

The DT-NH7 is a compact binocular single-tube night vision device designed for lightweight field observation and helmet-mounted use. It supports interchangeable objective options and clip-on magnifiers, allowing the user to adapt the system to different distances and mission profiles.

Its clear imaging, low distortion, and simple control layout make it a practical option for general night observation, mobile patrol, and short-to-medium range target spotting.

Technical Specifications

Model DT-NH7
Generation Gen 2+ / Gen 3 (optional)
Magnification 1X (3X / 4X / 5X optional)
Field of View 42° +/- 3°
Signal-to-Noise Ratio 18-24 dB
Photosensitivity 600-1000 µA/lm
MTBF 10,000 h
Observation Distance 180-230 m
Diopter Range +5 / -5
Lens System F1.2, 25 mm
Optical Distortion <1%
Focus Range 0.25 m to infinity
Automatic Brightness Control Yes
Shutoff Mode Flip-up shutoff
Housing Material Aerospace engineering plastic
Power Supply 2.6 – 4.2 V
Battery Type AA x2
Infrared Status Indicator Yes
Operating Temperature -40°C to +50°C
Humidity Range 5% – 98%
Waterproof Rating IP65 (IP67 optional)
Dimensions 125 x 125 x 56 mm
Weight 400 g (finished)
