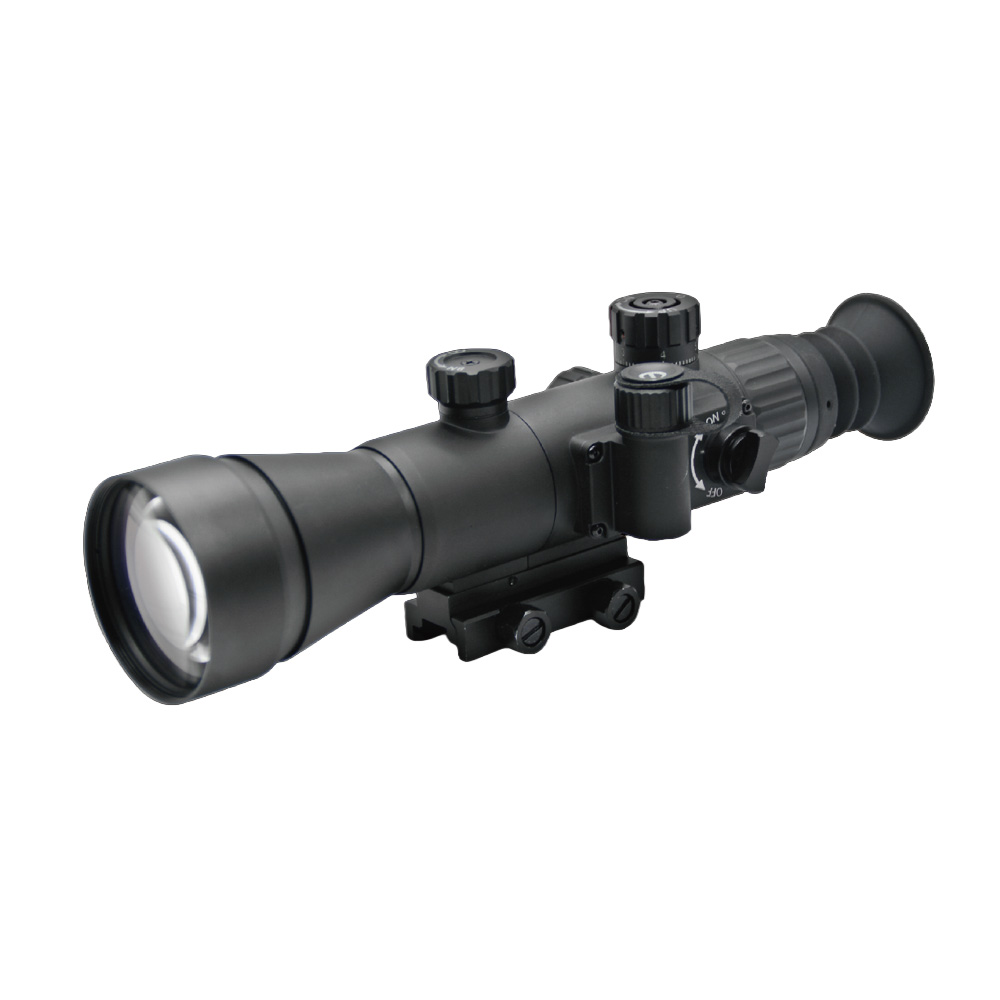

DT-NS8X (Gen2&3) Series Night Vision Weapon Sights
Model: DT-NS84 / DT-NS85
The DT-NS8X Series is a compact night vision weapon sight family built around a quick-lock mounting system, precision crosshair reticle, and strong impact resistance. It is designed for users who need dependable low-light aiming performance together with convenient installation and repeatable zero retention.
The series includes DT-NS84 and DT-NS85. Both models use the same structural concept and battery platform, while the difference lies mainly in magnification, objective size, and achievable observation distance. This allows users to select either a more balanced 4X configuration or a longer-range 5X version according to mission needs.
Suitable applications include night shooting, perimeter observation, hunting, and tactical field use where ruggedness and fast deployment matter.
Technical Specifications
| Model | DT-NS84 | DT-NS85 |
| Generation | Gen 2+ / Gen 3 (optional) | Gen 2+ / Gen 3 (optional) |
| Magnification | 4X | 5X |
| Resolution | 60-64 lp/mm | 60-64 lp/mm |
| Diopter Range | +/- 5 | +/- 5 |
| Observation Distance | 1200 m | 2000 m |
| Identification Distance | 800 m | 1500 m |
| Objective Diameter | 55 mm | 65 mm |
| Field of View | 10° | 8° |
| Eye Relief | 50 mm | 50 mm |
| Reticle | Red precision crosshair | Red precision crosshair |
| Adjustment Accuracy | 1/6 MOA | 1/8 MOA |
| Battery Type | CR123(A) x1 | CR123(A) x1 |
| Battery Life | 40-50 h | 40-50 h |
| Operating Temperature | -40°C to +60°C | -40°C to +60°C |
| Humidity Range | 5% – 98% | 5% – 98% |
| Shock Resistance | >1000 G | >1000 G |
| Waterproof Rating | IP65 / IP67 (optional) | IP65 / IP67 (optional) |
| Dimensions | 257 x 92 x 90 mm | 287 x 92 x 90 mm |
| Weight | 850 g | 920 g |
