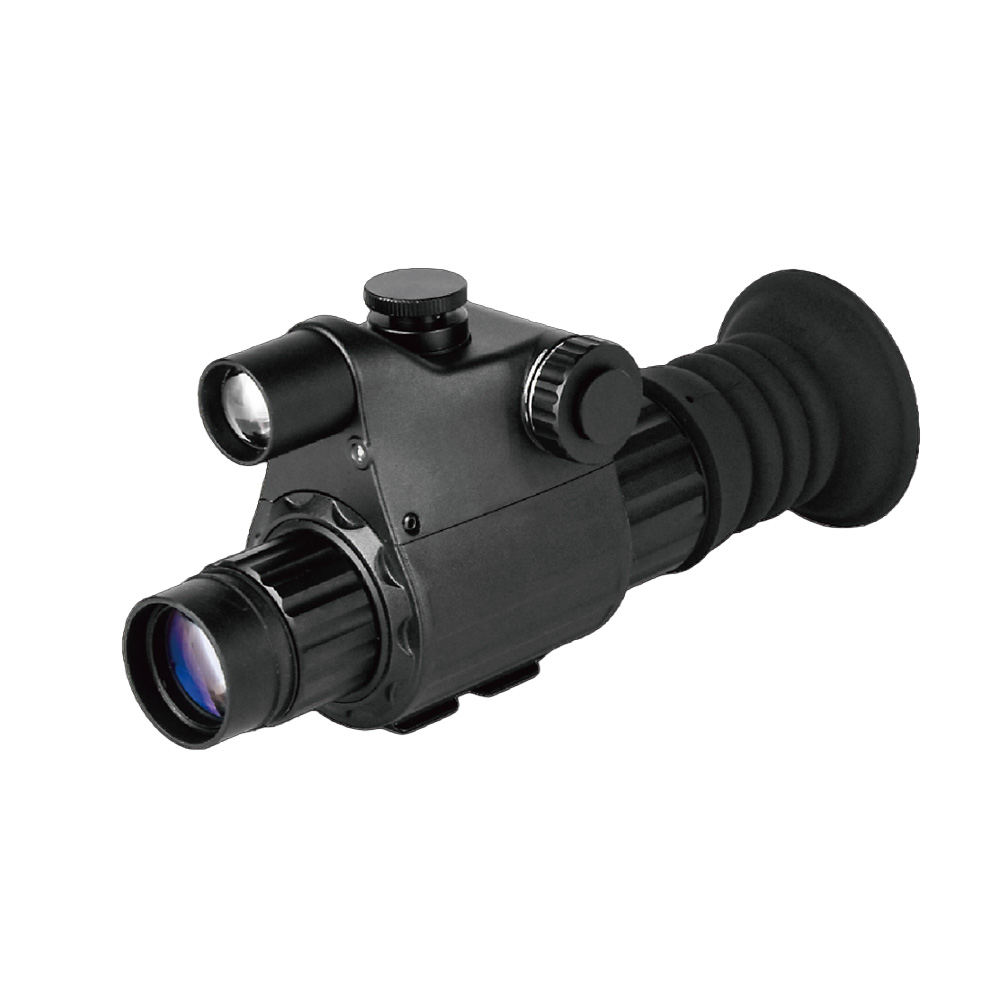

DT-NSCB (Gen2&3) Rear-Mounted Night Vision Sight

Model: DT-NSCB

The DT-NSCB is a rear-mounted night vision sight designed to work behind a daytime optic and extend night capability without changing the main aiming setup. Its compact body, metal structure, and simple connection layout make it practical for quick field use.

This model can be used head-mounted, handheld, or as a rear clip-on module, offering flexible night observation and aiming support in a lightweight format.

Technical Specifications

Model DT-NSCB
Generation Gen 2+ / Gen 3 (optional)
Magnification 1X
Resolution 60-64 (64-72) lp/mm
Objective Diameter 22 mm
Field of View 40°
Eye Relief 50 mm
Exit Pupil 9 mm
Diopter Range +/- 5
Battery Type One 3V lithium battery
Battery Life 40-50 h
Operating Temperature -40°C to +50°C
Humidity Range 5% – 98%
Shock Resistance >1000 G
Waterproof Rating IP65 / IP67 (optional)
Dimensions 160 x 55 x 69 mm (with eyecup)
Weight 295 g
