MANTA 10 X Lite
MANTA 10 X Lite

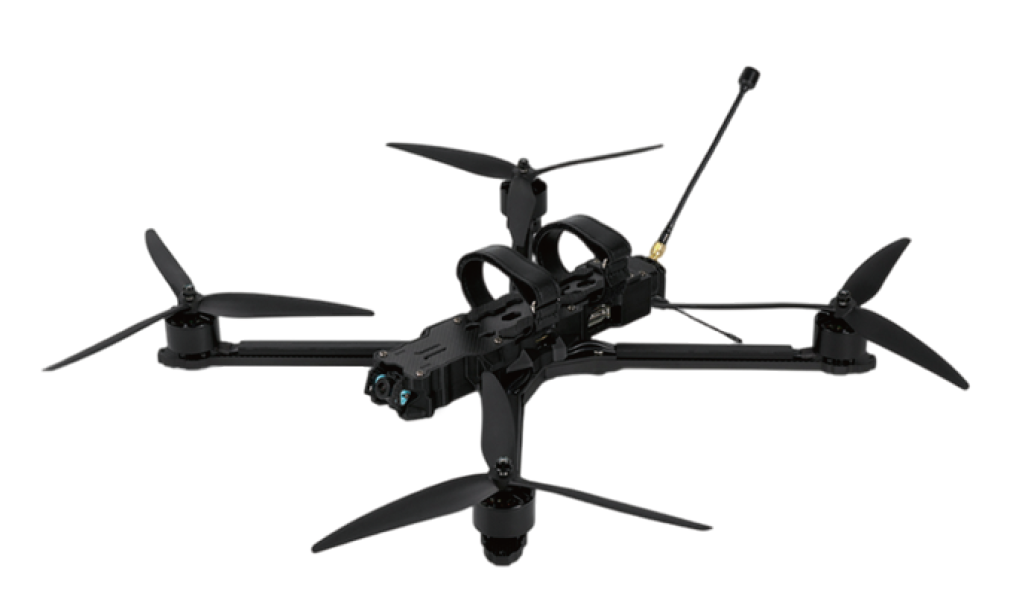

The Axisflying MANTA 10 X Lite is an FPV drone platform for freestyle, cinematic, long-range, or professional UAV applications. It is organized here with key build details and configuration notes for quick comparison.
Key Features
- FPV drone platform for build planning and configuration comparison
- Frame, stack, mounting, battery, motor, and VTX details organized when available
- Suitable for evaluating freestyle, cinematic, or long-range UAV setups
Specifications
| Recommended Motor | 3115 900KV |
|---|---|
| Recommended Battery | Lipo 7500 mAh 6S |
| Recommended Propeller | 10 inch |
| Recommended Stack | Argus 65 A + F722 |
| VTX | DJI O3 Air Unit / 5.8G 3 W approx. 30 min no-load endurance 10 km |
| Frame Type | True-X |
| Wheelbase | 440 mm |
| Bottom Plate Thickness | 3 mm |
| Top Plate Thickness | 2 mm |
| Carbon Plate Material | T700 |
| Electronics stack height | 25 mm |
| Arm Thickness | 7 mm |
| Camera Spacing | 20 mm |
| FC Stack Mounting | M3*30.5 mm |
| VTX Mounting | M2*20 / 25.5 mm M3*30.5 mm |
| Motor Mounting | M3*16/19 mm advanced cinematic kit with payload easy flight handling 4 kg max payload |
