MANTA 30
MANTA 30

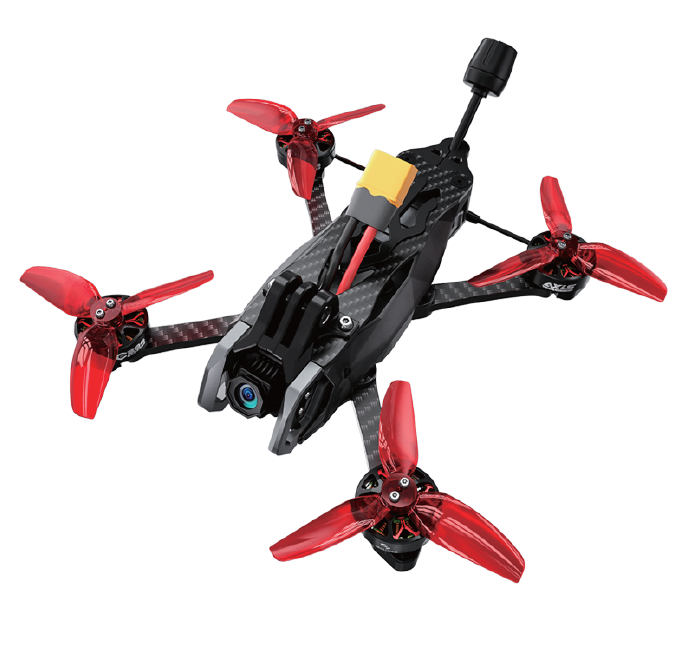

The Axisflying MANTA 30 is an FPV drone platform for freestyle, cinematic, long-range, or professional UAV applications. It is organized here with key build details and configuration notes for quick comparison.
Key Features
- FPV drone platform for build planning and configuration comparison
- Frame, stack, mounting, battery, motor, and VTX details organized when available
- Suitable for evaluating freestyle, cinematic, or long-range UAV setups
Specifications
| Wheelbase | 160 mm |
|---|---|
| Top Plate Thickness | 2 mm |
| Middle Plate Thickness | 2 mm |
| Bottom Plate Thickness | 2 mm |
| Arm Thickness | 4 mm |
| Carbon Plate Material | T700 |
| Camera Spacing | 19-20 mm |
| Electronics stack height | 16 mm |
| FC Stack Mounting | M3*20 mm |
| VTX Mounting | M2*25.5/30.5 mm |
| Motor Mounting | M3*12 mm DJI O4 Lite |
| Recommended Motor | C204-2650KV |
| Recommended Battery | 6S 650-850 mAh |
| Recommended Propeller | Max 3 inch |
| AIO | 40 A F745 |
| GPS | Beizheng BZ-121 |
| Receiver | ELRS (2.4G or 915M) / TBS Nano RX 150 km/H |
| Max Speed | 225 g |
| All-Up Weight | 8+ min |
| Flight Time | (no load) use 6S 650 mAh flight time approx. 7+ min, use 6S 850 mAh flight time approx. 8+ min |
