NAJA Dual-Sensor Module
NAJA Dual-Sensor Module

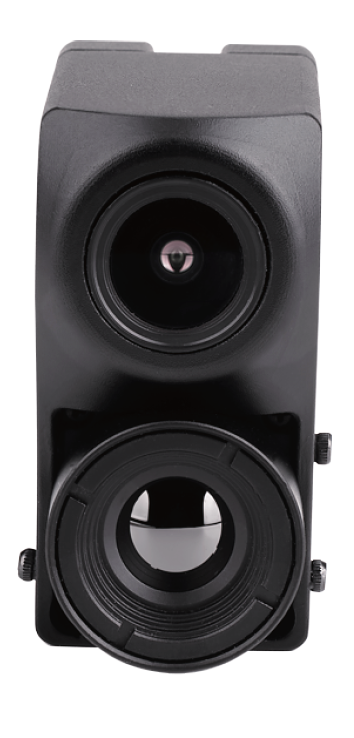

The Axisflying NAJA Dual-Sensor Module is a drone camera or imaging module for FPV and UAV applications. Use the table below to review the available product information.
Key Features
- Imaging-focused specification layout for FPV and UAV camera selection
- Useful for comparing camera modules, low-light options, and mission payloads
- Axisflying product line
- Organized specification table for easier comparison
Specifications
| Sensor | 1/8” Horizontal Resolution / : 1500TVL |
|---|---|
| Lens | 4.0 mm |
| Video Format | NTSC & PAL |
| Signal-to-Noise Ratio | ＞38dB |
| Video Output | CVBS |
| WDR | WDR wide dynamic range (HDR) |
| Field of viewFOV | 125° |
| Minimum Illumination | 0.00001 Lux |
| Digital Noise Reduction | 3D-DNR |
| Day/Night Mode | Color/AR Black/White/Auto |
| Input Voltage | DC 5V-28V |
| Weight | 6.0 g |
| Operating Temperature | -20℃~+70℃ |
| Mounting size | 19 mm*19 mm/ (M2) |
| Aspect Ratio | 16:9/4:3 |
| OSD Menu | Supported |
| White Balance | Auto White Balance |
| Exposure Settings | Electronic Shutter/Auto /Brightness |
| Video Settings | Contrast/Sharpness/Saturation/ Digital Noise Reduction |
| Menu Languages | Chinese / English / German / Italian / Russian / Japanese camera : TC256/TC384/TC640 Resolution: 256*192/384*288/640*512 : Frame rate: 60fps : 12μm : 8~14μm NETD: 25mk |
| Lens | 9.7 mm F1.0/9.1 mm F1.0 Field of view (H*V) : 9.7 mm:18.1° (H) ×13.6° (V) 9.7 mm:26.46° (H) ×19.81° (V) 9.1 mm:48.3° (H) ×38.6° (V) / : / / / / : 5V-16V : ≤0.8 W : CVBS Analog : PAL |
| Size | 22×22×37.7 mm |
| Weight | ≈32 g |
| Operating Temperature | -40℃~+80℃ : 25HZ/60HZ : -45℃~85℃/-50℃~+85℃ |
