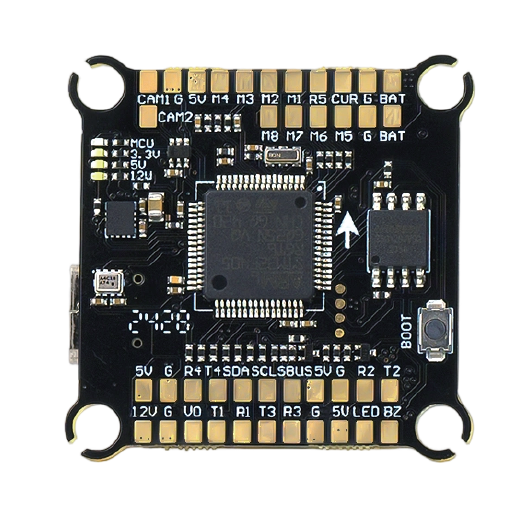

Argus ECO F405 Flight Controller
Request a Quote
Contact us for pricing, availability, bulk orders and OEM/ODM requirements.
Argus ECO F405 Flight Controller
Argus ECO F405 Flight Controller
The Axisflying Argus ECO F405 Flight Controller is a flight-control component for FPV drone and UAV builds. Review the specification table for board, stack, and system-fit details.
Key Features
- Flight-controller specification layout for stack and board comparison
- Useful for planning FPV drone electronics and control-system integration
- Axisflying product line
- Organized specification table for easier comparison
Specifications
| Firmware Target | SPDX-SPEDIX F405(Betaflight) |
|---|---|
| MCU | STM32F405RGT6 |
| Gyro | ICM42688P |
| Input Voltage | 4-8S |
| BEC | 5V3 A / 12V2 A |
| OSD | Supported |
| UART | 5 |
| Barometer | Supported |
| Blackbox | 16M |
| Size | 36*36*6 mm |
| Mounting Hole Spacing | 30.5*30.5 mm |
| Weight | 7 g |
| Recommended Setup | Argus 55 A ESC (OEM) Argus 60 A ESC Argus PRO 80 A ESC Argus PRO 100 A ESC Argus ECO F405 flight controller |
