Argus mini F7 Flight Controller
Argus mini F7 Flight Controller

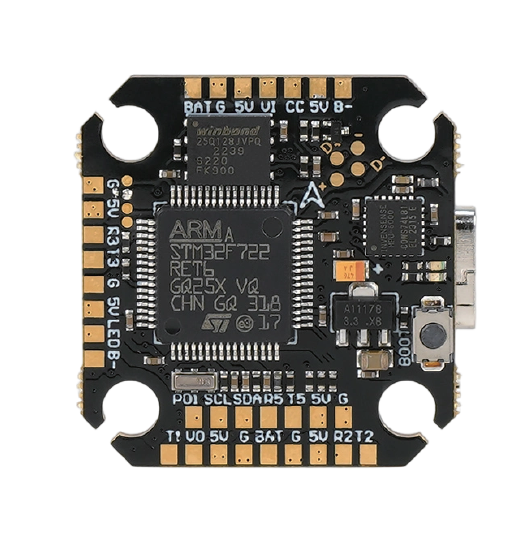

The Axisflying Argus mini F7 Flight Controller is a flight-control component for FPV drone and UAV builds. Review the specification table for board, stack, and system-fit details.
Key Features
- Flight-controller specification layout for stack and board comparison
- Useful for planning FPV drone electronics and control-system integration
- Axisflying product line
- Organized specification table for easier comparison
Specifications
| Firmware Target | F7 PRO |
|---|---|
| MCU | STM32F722RET6 |
| Gyro | MPU6000 or ICM-42688-P |
| Input Voltage | 4-6S Lipo |
| BEC | 5V (3 A Max) |
| OSD | Supported |
| UART | UART1-5 |
| Barometer | Supported |
| Blackbox | 16M Dimensions: 28.5*27*6.2 mm |
| Mounting Hole Spacing | 20*20 mm / M2 / M3 |
| Weight | 5 g |
| Recommended Setup | Argus mini 40 A ESC Argus mini 55 A ESC |
