Argus PRO 6in1 80A/100A ESC
Argus PRO 6in1 80A/100A ESC

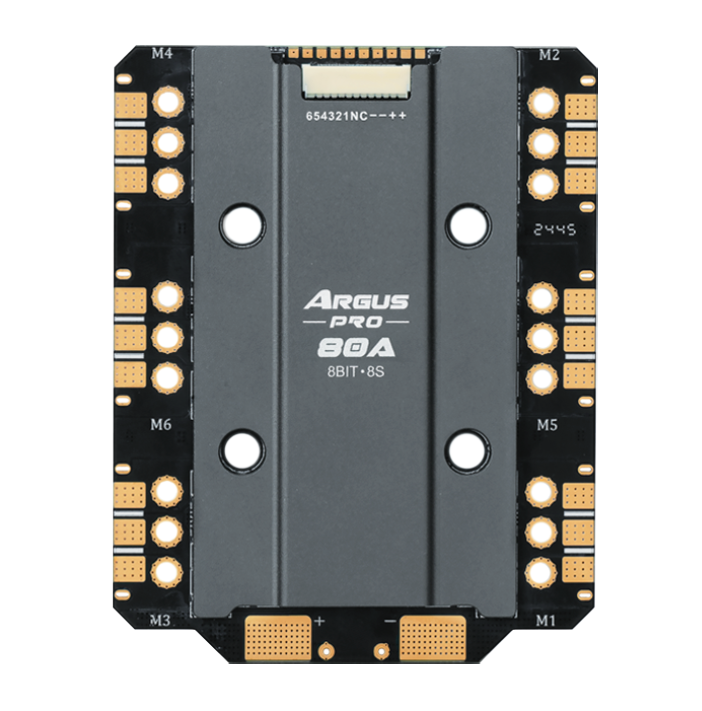

The Axisflying Argus PRO 6in1 80A/100A ESC is an electronic speed controller for FPV and UAV power systems. The table below summarizes the key configuration details available for import.
Key Features
- ESC-focused specification layout for current rating and power-system planning
- Useful for matching motors, battery voltage, and stack architecture
- Axisflying product line
- Organized specification table for easier comparison
Specifications
| Firmware Target | BX30_24_v0.19.2 Current scale: 100 |
|---|---|
| Input Voltage | 2-8S Lipo |
| Continuous Current | 80 A/100 A |
| Burst Current | 90 A/110 A Temperature protection: Supported |
| Telemetry | 8 Not supported |
| BEC | Not supported |
| Size | 84*65.5 mm |
| Mounting Hole Spacing | 30.5*30.5 mm |
| Weight | 44±2 g (bare board) |
| Recommended Setup | H743 Pro flight controller Argus ECO F405 flight controller Argus ECO F722 flight controller Argus PRO 6in1 80 A/100 A ESC |
