Argus PRO BLE 80A/100A ESC
Argus PRO BLE 80A/100A ESC

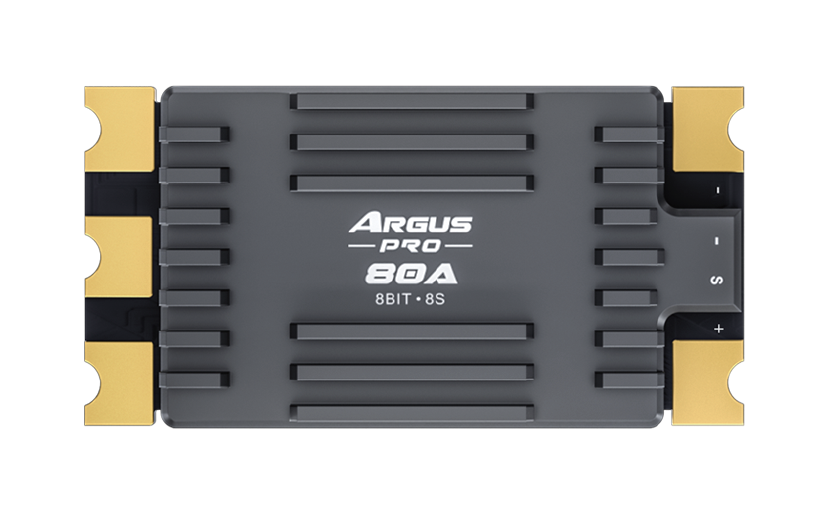

The Axisflying Argus PRO BLE 80A/100A ESC is an electronic speed controller for FPV and UAV power systems. The table below summarizes the key configuration details available for import.
Key Features
- ESC-focused specification layout for current rating and power-system planning
- Useful for matching motors, battery voltage, and stack architecture
- Axisflying product line
- Organized specification table for easier comparison
Specifications
| Firmware Target | BluejayQ_H_30 24k(BB21) |
|---|---|
| MCU | EFM8BB21F16G |
| Input Voltage | 3-8S battery |
| Continuous Current | 80 A/100 A |
| Burst Current | 90 A/110 A |
| BEC | Not supported |
| Telemetry | NO MOSFET:40V MOSFET Current scale: 200 Dimensions: 43*22*9.5 mm(CNC) |
| Mounting Hole Spacing | 43*22*6.2 mm(bare board) |
| Weight | 16±1 g |
