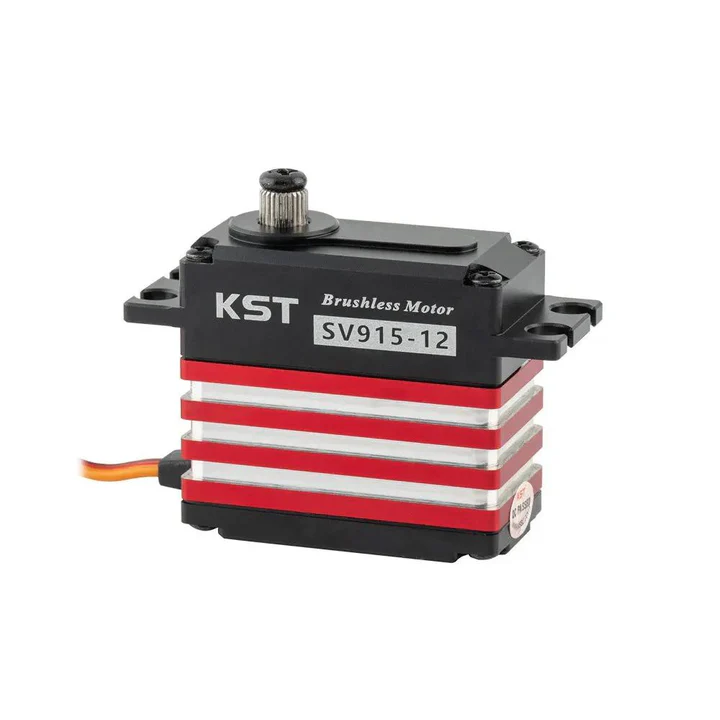

KST Servo SV Series

Add to Wishlist
Request a Quote

Contact us for pricing, availability, bulk orders and OEM/ODM requirements.

, Brand:

KST Servo SV Series

SV08-12

Output Shaft 15T-4mm Output Shaft Spline
Rated Voltage DC12.0V
Voltage Range DC8.40V-13.0V
Torque / Stalling Torque 5.00Kgf.cm@8.40V / 7.00Kgf.cm@12.0V / 8.00Kgf.cm@13.0V
Speed / No-load Speed 0.15sec/60deg@8.40V / 0.10sec/60deg@12.0V / 0.09sec/60deg@13.0V
Start Current 1.18A@12.0V
Rated Torque 2.0kgf.cm@12.0V
Rated Current 0.35A@12.0V
Rated Speed 0.13sec/60deg@12.0V
Working Frequency 1520us/333Hz
Default Travel Angle +/-60deg = 120deg Total
Temperature Range -10C to +65C
Soft Start Programmable
Programmable Programmable Yes
Case Material Aluminum Alloy
Motor Type Coreless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2BB
Case Dimensions 23.5*8*25.25mm +/-0.2mm
Weight 11g +/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 900us-2100us
Pulse-Lengths for Position -60deg / 0deg / +60deg 1000us / 1500us / 2000us

SV10-12A&B

Output Shaft 25T-5mm Output Shaft Spline
Rated Voltage DC12.0V
Voltage Range DC8.40V-13.0V
Torque / Stalling Torque 11.0Kgf.cm@8.40V / 13.0Kgf.cm@12.0V / 14.0Kgf.cm@13.0V
Speed / No-load Speed 0.15sec/60deg@8.40V / 0.11sec/60deg@12.0V / 0.10sec/60deg@13.0V
Working Frequency 1520us/333Hz
Default Travel Angle +/-60deg = 120deg Total
Temperature Range -10C to +65C
Soft Start Programmable
Programmable Programmable Yes
Case Material Aluminum Alloy
Motor Type Coreless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Case Dimensions 30*10*33.5mm+/-0.2mm
Weight 25g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 900us-2100us
Pulse-Lengths for Position -50deg / 0deg / +50deg 1000us / 1500us / 2000us

SV10M-12A&B

Output Shaft 25T-5mm Output Shaft Spline
Rated Voltage DC12.0V
Voltage Range DC8.4V-12.0V
Torque / Stalling Torque 6.5Kgf.cm@8.40V / 8.0Kgf.cm@12.0V / 9.0Kgf.cm@13.0V
Speed / No-load Speed 0.15sec/60deg@8.40V / 0.12sec/60deg@12.0V / 0.11sec/60deg@13.0V
Working Frequency 1520us/333Hz
Default Travel Angle +/-60deg = 120deg Total
Temperature Range -10C to +65C
Soft Start Programmable
Programmable Programmable Yes
Case Material Aluminum Alloy
Motor Type Coreless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Case Dimensions 12A: 30*10*28.5mm+/-0.2mm 12B: 30*10*28.0mm+/-0.2mm
Weight 20g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 900us-2100us
Pulse-Lengths for Position 1000us / 1500us / 2000us -50deg / 0deg / +50deg

SV12-12

Output Shaft 25T5mm Output Shaft Spline
Rated Voltage DC12.0V
Voltage Range DC8.40V-12.0V
Torque / Stalling Torque 6.5Kgf.cm@8.40V / 8.0Kgf.cm @12.0V / 9.0Kgf.cm @13.0V
Speed / No-load Speed 0.15sec/60deg@8.40V / 0.11sec/60deg@12.0V / 0.10sec/60deg@13.0V
Working Frequency 1520us/333Hz
Default Travel Angle +/-70deg = 140deg Total
Temperature Range -10C to +65C
Soft Start Programmable
Programmable Programmable Yes
Case Material Aluminum Alloy
Motor Type Coreless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Case Dimensions 23mm*12mm*27mm+/-0.2mm 30mm*3.5m
Weight 20g+/-10% 28g
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 800us-2200us
Pulse-Lengths for Position 1000us / 1500us / 2000us -50deg / 0deg / +50deg

SV12S-12

Output Shaft 25T-6mm Output Shaft Spline
Rated Voltage DC12.0V
Voltage Range DC8.4V-12.0V
Torque / Stalling Torque 11.0Kgf.cm@8.40V / 13.8Kgf.cm@12.0V / 14.5Kgf.cm@13.0V
Speed / No-load Speed 0.10sec/60deg@8.40V / 0.08sec/60deg@12.0V / 0.07sec/60deg@13.0V
Working Frequency 1520us/333Hz
Default Travel Angle +/-60deg = 120deg Total
Temperature Range -10C to +65C
Soft Start Yes
Programmable Yes
Case Material Aluminum Alloy
Motor Type Coreless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2BB
Case Dimensions 30*12*35.5mm+/-0.2mm
Weight 32g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 900us-2100us
Pulse-Lengths for Position 1000us / 1500us / 2000us -50deg / 0deg / +50deg

SV12T-12

Output Shaft 25T-6mm Output Shaft Spline
Rated Voltage DC12.0V
Voltage Range DC8.4V-12.0V
Torque / Stalling Torque 16.0Kgf.cm@8.40V / 20.0Kgf.cm@12.0V / 22.0Kgf.cm@13.0V
Speed / No-load Speed 0.16sec/60deg@8.40V / 0.12sec/60deg@12.0V / 0.11sec/60deg@13.0V
Working Frequency 1520us/333Hz
Default Travel Angle +/-60deg = 120deg Total
Temperature Range -10C to +65C
Soft Start Yes
Programmable Yes
Case Material Aluminum Alloy
Motor Type Coreless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2BB
Case Dimensions 30*12*35.5mm+/-0.2mm
Weight 32g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 900us-2100us
Pulse-Lengths for Position -50deg / 0deg / +50deg 1000us / 1500us / 2000us

SV15-12

Output Shaft 25T-6mm Output Shaft Spline
Rated Voltage DC12.0V
Voltage Range DC8.40V-13.0V
Torque / Stalling Torque 15.0Kgf.cm@8.40V / 18.0Kgf.cm@12.0V / 20.0Kgf.cm@13.0V
Speed / No-load Speed 0.15sec/60deg@8.40V / 0.11sec/60deg@12.0V / 0.10sec/60deg@13.0V
Start Current 1.50A@8.40V / 2.08A@12.0V / 2.25A@13.0V
Working Frequency 1520us/333Hz
Default Travel Angle +/-60deg = 100deg Total
Temperature Range -10C to +65C
Soft Start Programmable
Programmable Programmable Yes
Case Material Aluminum Alloy
Motor Type Coreless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2BB
Case Dimensions 33*15*30mm+/-0.2mm
Weight 35g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 900us-2100us
Pulse-Lengths for Position 1000us / 1500us / 2000us -50deg / 0deg / +50deg

SV15X-12

Output Shaft 25T-6mm Output Shaft Spline
Rated Voltage DC12.0V
Voltage Range DC8.40V-13.0V
Torque / Stalling Torque 9.0Kgf.cm@8.40V / 12.0Kgf.cm@12.0V / 13.0Kgf.cm@13.0V
Speed / No-load Speed 0.08sec/60deg@8.40V / 0.06sec/60deg@12.0V / 0.05sec/60deg@13.0V
Start Current 1.45A@8.40V / 2.05A@12.0V / 2.35A@13.0V
Working Frequency 760us/560Hz
Temperature Range -10C to +65C
Soft Start Programmable
Programmable Programmable Yes
Case Material Aluminum Alloy
Motor Type Coreless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2BB
Case Dimensions 35.5*15*36.5mm+/-0.2mm
Weight 40g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 450us-1050us

SV3312-12

Output Shaft 25T 6mm Output Shaft Spline
Rated Voltage DC12V
Voltage Range DC8.0V-13.0V
Torque / Stalling Torque 28Kgf.cm@8.4V / 33Kgf.cm@12V / 38Kgf.cm@13V
Speed / No-load Speed 0.16sec/60deg@8.4V / 0.12sec/60deg@12V / 0.10sec/60deg@13V
Working Frequency 1520us/333Hz
Default Travel Angle +/-60deg = 120deg Total
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Programmable Yes
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2BB
Case Dimensions 40.5*20*38mm+/-0.2mm
Weight 70g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 900us-2100us
Pulse-Lengths for Position 1000us / 1500us / 2000us -50deg / 0deg / +50deg

SV4012-12

Output Shaft 6mm 25T Output Shaft Spline
Rated Voltage DC12.0V
Voltage Range DC8.40V-13.0V
Torque / Stalling Torque 35.0Kgf.cm@8.40V / 40.0Kgf.cm@12.0V / 42.0Kgf.cm@13.0V
Speed / No-load Speed 0.16sec/60deg@8.40V / 0.12sec/60deg@12.0V / 0.10sec/60deg@13.0V
Start Current 2.79A@8.40V / 3.65A@12.0V / 4.05A@13.0V
Working Frequency 1520us/333Hz
Default Travel Angle +/-100deg = 200deg Total
Temperature Range -20C to +65C
Soft Start Programmable
Programmable Programmable Yes
Case Material Aluminum Alloy
Motor Type 4 Pole Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2BB
Case Dimensions 40.5*20*25.5mm+/-0.2mm
Weight 50g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 500us-2500us
Pulse-Lengths for Position -100deg / 0deg / +100deg 500us / 1500us / 2500us

SV5006-12

Output Shaft 6mm25T Output Shaft Spline
Rated Voltage DC12.0V
Voltage Range DC8.40V-13.0V
Torque / Stalling Torque 40Kgf.cm@8.40V / 50Kgf.cm@12.0V / 55Kgf.cm@13.0V
Speed / No-load Speed 0.100sec/60deg@8.40V / 0.068sec/60deg@12.0V / 0.063sec/60deg@13.0V
Working Frequency 1520us/333Hz
Default Travel Angle +/-100deg= 200degTotal
Temperature Range -10C to +65C
Soft Start Programmable
Programmable Programmable Yes
Case Material Aluminum Alloy
Motor Type 4 Pole Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 6BB
Case Dimensions 40*20*40mm+/-0.2mm
Weight 75g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 500us-2500us
Pulse-Lengths for Position 500us / 1500us / 2500us -100deg / 0deg / +100deg

SV6010-12

Output Shaft 25T-8mm Output Shaft Spline
Rated Voltage DC12V
Voltage Range DC8.4V-13.0V
Torque / Stalling Torque 50Kgf.cm@8.4V / 60Kgf.cm@12V / 70Kgf.cm@13V
Speed / No-load Speed 0.13sec/60deg@8.4V / 0.10sec/60deg@12V / 0.09sec/60deg@13V
Working Frequency 1520us/333Hz
Default Travel Angle +/-100deg= 200deg Total
Temperature Range -10C to +65C
Soft Start Programmable
Programmable Programmable Yes
Case Material Aluminum Alloy
Motor Type 4 Pole Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Contactless
Ball Bearing 2BB
Case Dimensions 40*20*40mm+/-0.2mm
Weight 75g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 500us-2500us
Pulse-Lengths for Position 500us / 1500us / 2500us -100deg / 0deg / +100deg

SV7012-12

Output Shaft 6mm25T Output Shaft Spline
Rated Voltage DC12.0V
Voltage Range DC8.40V-13.0V
Torque / Stalling Torque 55Kgf.cm@8.40V / 70Kgf.cm@12.0V / 75Kgf.cm@13.0V
Speed / No-load Speed 0.16sec/60deg@8.40V / 0.12sec/60deg@12.0V / 0.10sec/60deg@13.0V
Working Frequency 1520us/333Hz
Default Travel Angle +/-100deg= 200deg Total
Temperature Range -10C to +65C
Soft Start Programmable
Programmable Programmable Yes
Case Material Aluminum Alloy
Motor Type 4 Pole Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Contactless
Ball Bearing 6BB
Case Dimensions 40*20*40mm+/-0.2mm
Weight 75g+/-10%
Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 500us-2500us
Pulse-Lengths for Position 500us / 1500us / 2500us -100deg / 0deg / +100deg

SV905-12

Output Shaft 25T-6mm Output Shaft Spline
Rated Voltage DC12V
Voltage Range DC8.0V-13.0V
Torque / Stalling Torque 13.0Kgf.cm@8.4V / 16.0Kgf.cm@12V / 17.0Kgf.cm@13V
Speed / No-load Speed 0.060sec/60deg@8.4V / 0.045sec/60deg@12V / 0.040sec/60deg@13V
Working Frequency 760us/560Hz
Temperature Range -20C to +65C
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2 BB
Case Dimensions 40.5*20*38 mm+/-0.2mm
Weight 70g+/-10%
Signal Voltage TTL-level: HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 450us-1050us

SV915-12

Output Shaft 25T-6mm Output Shaft Spline
Rated Voltage DC12V
Voltage Range DC8.0V-13.0V
Torque / Stalling Torque 24Kgf.cm@8.4V / 28Kgf.cm@12V / 30Kgf.cm@13V
Speed / No-load Speed 0.10sec/60deg@8.4V / 0.08sec/60deg@12V / 0.07sec/60deg@13V
Working Frequency 760us/560Hz
Temperature Range -20C to +65C
Case Material Aluminum Alloy
Motor Type Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing 2 BB
Case Dimensions 40.5*20*38 mm+/-0.2mm
Weight 70g+/-10%
Signal Voltage TTL-level: HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V
Pulse Lengths 450us-1050us
SV15-12 Technical Specifcation SV12-T Technical Specification SV12-S Technical Specification SV12-12 Technical Specification SV10M-12 Technical Specifcation SV10-12A&B Technical Specifcation SV08-12 Technical SpecifcationSV15X-12 Technical Specifcation SV7012-12 Technical Specification SV6010-12 Technical Specification SV5006-12 Technical Specification SV4012-12 Technical Specifcation SV3312-12 Technical Specification SV915-12 Specification SV905-12 Specification

Related products

KST Servo MS Series

Rated 0 out of 5
KST Servo MS Series
KST Servo WP Series

KST Servo WP Series

Rated 0 out of 5
We use cookies to improve your experience on our website. By browsing this website, you agree to our use of cookies.
Accept
Product added!
The product is already in the wishlist!
Removed from Wishlist

Shopping cart

close
