MANTA 7 X Lite
MANTA 7 X Lite

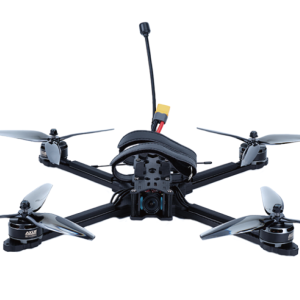

The Axisflying MANTA 7 X Lite is an FPV drone platform for freestyle, cinematic, long-range, or professional UAV applications. It is organized here with key build details and configuration notes for quick comparison.
Key Features
- FPV drone platform for build planning and configuration comparison
- Frame, stack, mounting, battery, motor, and VTX details organized when available
- Suitable for evaluating freestyle, cinematic, or long-range UAV setups
Specifications
| Recommended Motor | AX2807 1350KV |
|---|---|
| Recommended Battery | 5600 mAh 6S |
| Recommended Propeller | 7 inch |
| Recommended Stack | Argus ECO 60 A + F405 Argus 55 A + F722 approx. 30 min no-load endurance 10 km |
| Frame Type | True-X |
| Wheelbase | 340 mm |
| Bottom Plate Thickness | 3 mm |
| Top Plate Thickness | 2 mm |
| Carbon Plate Material | T700 |
| Electronics stack height | 25 mm |
| Arm Thickness | 6 mm |
| Camera Spacing | 14-20 mm |
| FC Stack Mounting | M3*30.5 mm |
| VTX Mounting | M2*20 / 25.5 mm M3*30.5 mm |
| Motor Mounting | M3*16 / 19 mm entry-level cinematic kit with payload entry-level option 2 kg max payload |
