Argus PRO F7 Flight Controller
Request a Quote
Contact us for pricing, availability, bulk orders and OEM/ODM requirements.

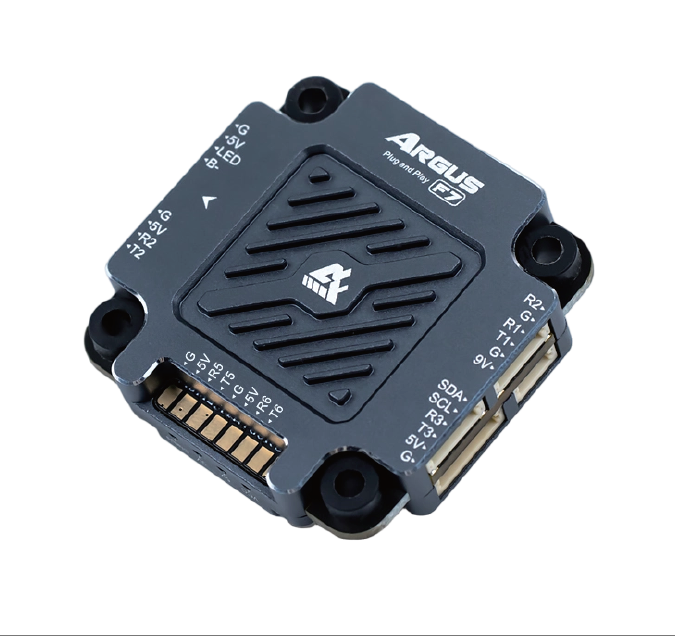

Argus PRO F7 Flight Controller
Argus PRO F7 Flight Controller
The Axisflying Argus PRO F7 Flight Controller is a flight-control component for FPV drone and UAV builds. Review the specification table for board, stack, and system-fit details.
Key Features
- Flight-controller specification layout for stack and board comparison
- Useful for planning FPV drone electronics and control-system integration
- Axisflying product line
- Organized specification table for easier comparison
Specifications
| Firmware Target | F7 PRO(BF, INAV) |
|---|---|
| MCU | STM32F722RET6 |
| Gyro | ICM42688P |
| Input Voltage | 4-6S Lipo |
| BEC | 9V2 A / 5V2 A |
| OSD | Supported |
| UART | 6 |
| Barometer | Supported |
| Blackbox | Supported(16M Flash Memory) Supported |
| Motor | M1-M8 |
| Mounting Hole Spacing | 30.5*30.5 mm/M3 |
| Recommended Setup | Argus Pro 55/65 A ESC |
